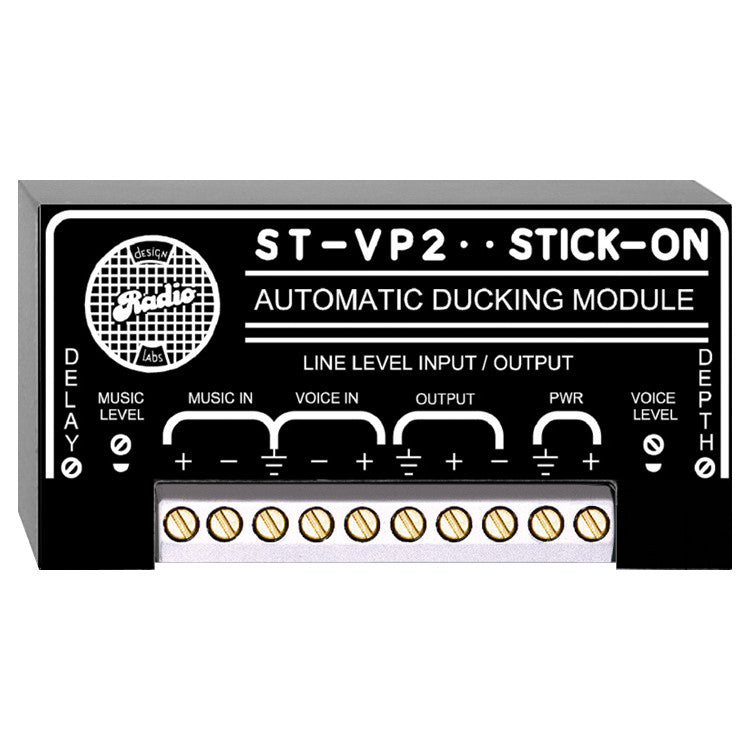

RDL ST-VP2 Automatic Ducking Module

RDL ST-VP2 Automatic Ducking Module

SoundPro Item: 71842 | Part Number: 001-1025

$231.51
$308.67 $231.51
Your Price Sold out
MSRP: $308.67 | MAP: $231.51

Usually ships in 5-7 business days

  • Fully AUTOMATIC Voice-Over Mixing
  • Noiseless Paging
  • Adjustable Fade Depth
  • Setting to Fade Music Fully Off
  • Adjustable Recovery Rate
  • Built-in AGC Compressor on Music Input
Log in or register for YOUR best price

The ST-VP2 can be wired into any line-level input of a paging amplifier. A line-level music source may be provided from a receiver, satellite decoder, tape or CD source. A line-level voice source may be provided from a telephone paging system at line level, or from a microphone which has been preamplified up to line level (See RDL STM-1, STM-2, STM-2X, STM-3, STM-LDA3 Microphone Preamplifiers). When a page is initiated, the module automatically senses the audio at the input, turns the music down to the desired level, and automatically fades the music back up after the page is completed. The VOICE input is completely turned off by the module until the next paging signal is received. Setup is made easy by two LED indicators at the front of the module. LEDs are provided to show correct operating level for each of the two inputs.

The music input provides an AGC/Compressor which transparently produces a consistent audio level for varying music sources and protects against excessive music levels which would otherwise mask the voice signal during voice-overs.

View full details

Specifications

Dimensions
Music Fade Depth
Adjustable 0 dB to –25 dB, or OFF
Electrical
THD+N
< 0.01% (20 Hz to 20 kHz, no compression)
Power Requirement
GROUND-REFERENCED, 24 Vdc @ 35 mA
Audio
Input Impedance
20 kOhm
Output
+4 dBu balanced (nominal)
Connectivity
Inputs (2)
Balanced line level (or unbalanced)
Input Signal Range
-20 dBu to +18 dBu
Construction
Gain
Adjustable using multi turn potentiometer
General
Freq. Response
20 Hz to 20 kHz (+/- 1 dB)
Noise
< -70 dB
Indicators (2)
1 LED indicating proper Music Level, 1 LED indicating proper Voice Level
AGC/Compressor Range
18 dB; 6 dB compression at normal input level
Attack Time
25 ms
Release Time
2.5 Seconds
Voice Trigger Level
24 dB below operating level
Music Recovery Delay
Adjustable 2 Sec. to 4 Sec.
Ambient Operating Environment
0° C to 55° C
