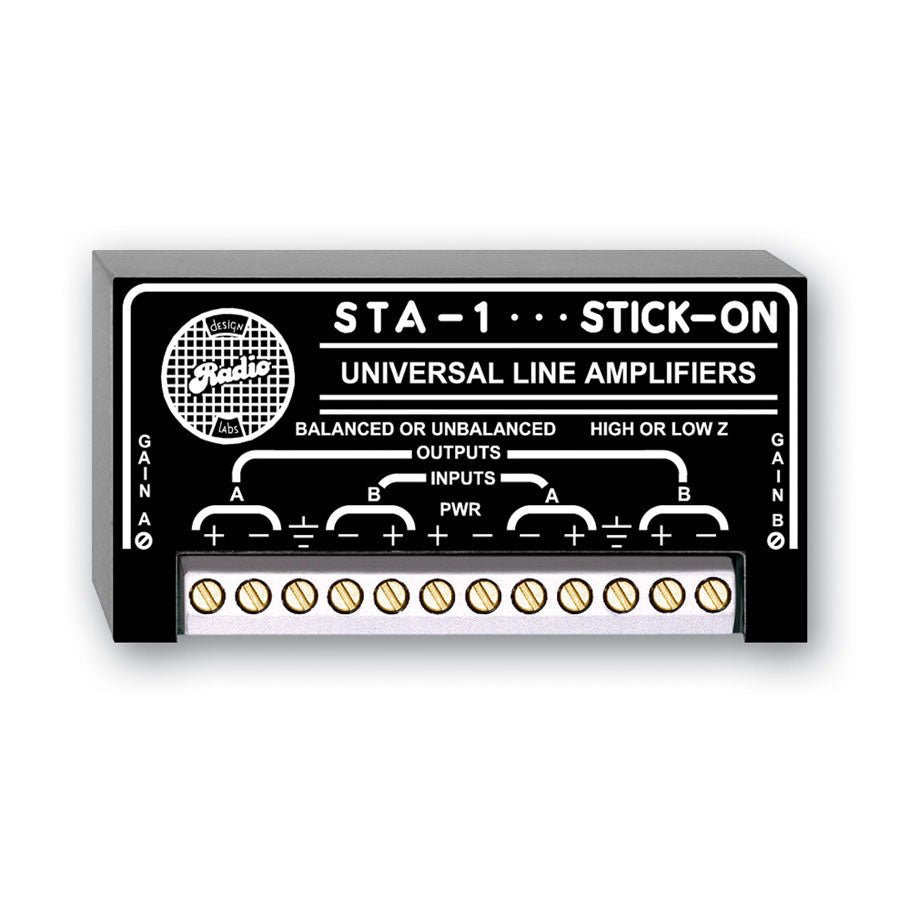

RDL STA-1 Dual Balanced/Unbalanced Line Amplifier -12 to 20 dB Gain

RDL STA-1 Dual Balanced/Unbalanced Line Amplifier -12 to 20 dB Gain

SoundPro Item: 71818 | Part Number: STA-1

$218.32
$291.09 $218.32
Your Price Sold out
MSRP: $291.09 | MAP: $218.32

Usually ships in 5-7 business days

  • Up to 20 dB Gain in an Audio Line
  • Conversion from Balanced to Unbalanced
  • Conversion from Unbalanced to Balanced
  • Conversion from High to Low Impedance
  • Conversion from Low to High Impedance
  • Bridge an Audio Line Feed
  • Precisely Match Audio Levels
Log in or register for YOUR best price

The STA-1 is a dual-channel line-level preamplifier with bridging inputs, adjustable gain or loss, and low-impedance outputs. Each of the two identical circuits is both an electronic line transformer and a line amplifier. Hook up the STA-1 just like a pair of audio transformers with gain. True dc amplifiers produce unsurpassed audio clarity, high common-mode rejection, ultra-low distortion and low noise. The STA-1 is perfect for most line amplification, impedance or balanced/unbalanced conversion. The STA-1 operates from floating or bipolar dc power. For installations where ground-referenced power is preferred, use the STA-2A Dual High Gain Line Amplifiers.

View full details

Specifications

Amps per STA-1:
2 identical circuits (stereo or dual mono operation)
Gain:
20 dB (adjustable, separate controls for each channel)
Input Impedance:
10 kΩ bridging
Input Configuration:
Balanced or unbalanced
Output Impedance:
200 Ω balanced (drives 600 Ω or 10 kΩ lines)
Output Configuration:
Balanced or unbalanced
Frequency Response:
dc to 25 kHz (± 0.25 dB)
THD+N:
<0.03%
Output Level:
+4 dBu
Headroom:
18 dB (at rated output of +4 dBu)
Noise:
<-75 dB (referred to +4 dBu)
CMRR:
-50 dB to (50 to 120 Hz)
Crosstalk:
Better than 75 dB
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
FLOATING, 24 Vdc @ 50 mA
Package Type:
Cardboard Box
WEEE weight:
0.14 lbs.
Shipping Weight:
0.19 lbs.
Tariff code:
8543.70.9860
Package Dimensions:
2 x 2 x 4 in.
