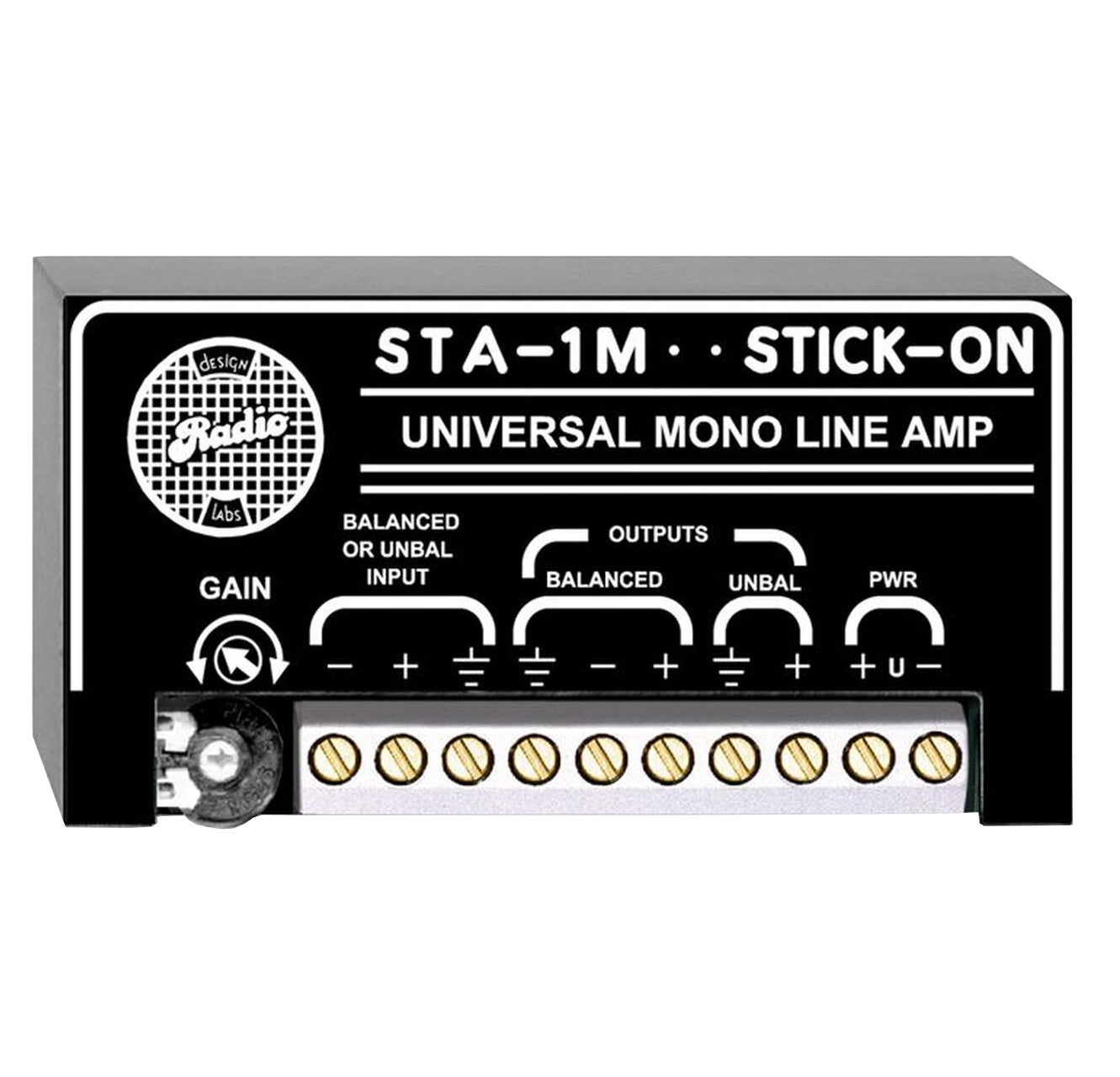

RDL STA-1M Audio Line Amplifier

RDL STA-1M Audio Line Amplifier

SoundPro Item: 77456 | Part Number: STA-1M

$159.62
$212.83 $159.62
Your Price Sold out
MSRP: $212.83 | MAP: $159.62

Usually ships in 5-7 business days

  • Single-Channel Audio Line Amplifier
  • Balanced or Unbalanced Inputs and Outputs
  • Bridge a Line to Avoid Loading
  • High to Low Impedance Conversion
  • Low to High Impedance Conversion
  • Instrumentation Input to Isolate Ground Loops
  • Precisely Match Audio Levels
  • RDL® SupplyFlex™ Power Input Configuration
Log in or register for YOUR best price

The STA-1M allows bridging any audio line, adjusting the gain, and driving a balanced or unbalanced line. The circuit design allows the input to accept either balanced or unbalanced signals, of either high or low impedance. This is an instrumentation type input stage which will amplify the differential input, regardless of ground reference. The output is capable of driving either high or low impedance loads, and the output may be connected either balanced or unbalanced. RDL's SupplyFlex power input configuration is included in the STA-1M. The power supply input may be fed from a floating (not ground-referenced) 24 Vdc power source, from a bipolar power supply (+/ 12 Vdc or +/-15 Vdc) or from a ground-referenced 24 Vdc power supply.

View full details

Specifications

Dimensions
Package Dimensions
2x2x4"
Weight
Shipping Weight
0.19 lbs
WEEE Weight
0.136 lbs
Electrical
THD+N
< 0.05%
Power Requirement
GROUND-REFERENCED or FLOATING, 24 Vdc @ 50 mA
Audio
Frequency Response
10 Hz to 20 kHz (±0.25 dB)
Connectivity
Outputs (2)
150 Ω balanced to drive low or high-Z; 75 Ω unbalanced
Output Level
+4 dBu nominal, (adjustable; unbalanced output 6 dB below balanced line level)
Input/Output
Min Gain/Max Gain
General
Headroom Above +4 Dbu
> 18 dB
Noise Below + 4dBu
< -75 dB
Unbal. / Balanced
-7 dB / +14 dB
Bal. / Balanced
-7 dB / +14 dB
Bal. / Unbalanced
-14 dB / +7 dB
Unbal. / Unbalanced
-14 dB / +7 dB
Ambient Operating Environment
0° C to 55° C
Audio Performance
CMRR
> 50 dB at full gain (50 to 120 Hz)
