• RDL STM-3 High Gain Microphone Preamp
1 1

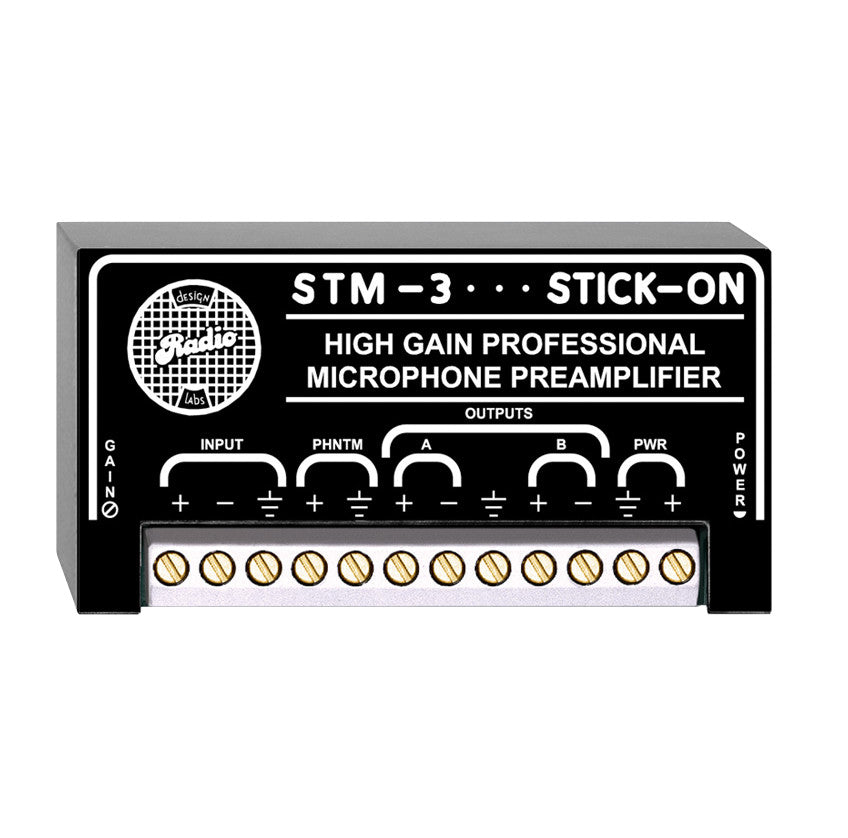

RDL STM-3 High Gain Microphone Preamp

RDL STM-3 High Gain Microphone Preamp

SoundPro Item: 77479 | Part Number: STM-3

$242.66
$323.55 $242.66
Your Price Sold out
MSRP: $323.55 | MAP: $242.66

Usually ships in 5-7 business days

  • Low-noise, high-gain, mic preamp
  • Adjustable output levels
  • High or low impedance mic inputs
  • Mic input to line outputs
  • Two balanced or unbalanced outputs
  • Phantom capability
  • RF-filtered inputs
Log in or register for YOUR best price

The STM-3 is a quality low-noise microphone preamplifier designed for use in surveillance, commercial sound, broadcast, and recording where higher than normal gain is required. The STM-3 is very flexible, with gain adjustment from 45 to 75 dB, two balanced or unbalanced outputs, and available phantom supply input. Its low-distortion and low-noise performance make it the best choice, even when larger preamps could be used. The STM 3 supply input is single ended and operates from 24 Vdc. Operation from 12 Vdc is possible with a 6 dB reduction in headroom. Each output drives high or low impedance loads.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
0.7" x 3" x 1.6"
Electrical
Phantom
24 Vdc; IEC 61938: 2013, Filtered
THD+N
<0.05% (50dB gain)
Phantom Power Input
24 Vdc @ 10 mA max.
Power Requirement
GROUND-REFERENCED, 24 Vdc @ 25 mA
Audio
Frequency Response
50 Hz to 30 kHz (± 1.5 dB)
Connectivity
Input
500 Ω balanced; 5 kΩ unbalanced
Outputs (2)
+4 dBu 150 Ω balanced; -10 dBv unbalanced
Construction
Gain
Adjustable 45 to 75 dB
General
Residual Noise
< -70 dB (below +4 dBu; 150 Ω source)
Headroom
> 20 dB (24 Vdc supply); > 14 dB (12 Vdc supply)
Audio Performance
CMRR
>50 dB (50 Hz to 20 kHz)
