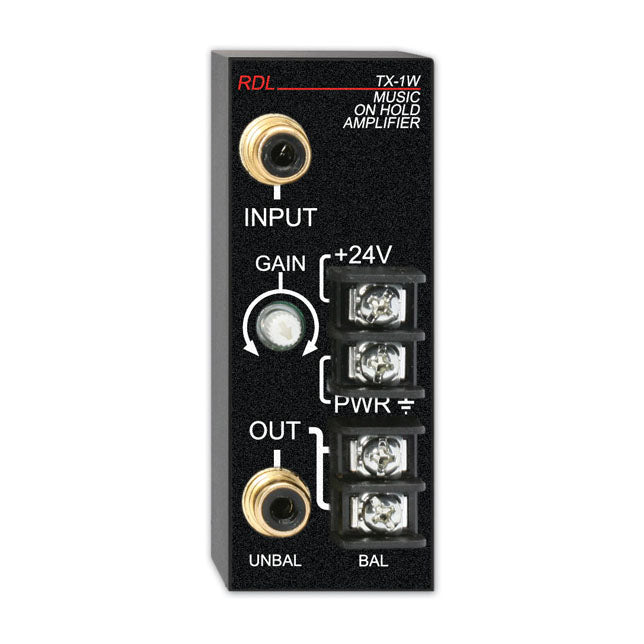

RDL TX-1W Music on Hold Amplifier - 1 Watt

RDL TX-1W Music on Hold Amplifier - 1 Watt

SoundPro Item: 77516 | Part Number: TX-1W

$104.71
$139.62 $104.71
Your Price Sold out
MSRP: $139.62 | MAP: $104.71

Usually ships in 5-7 business days

  • Feed Audio into Telephone Equipment Music-on-Hold Input
  • Adjustable Audio Level
  • Optimized Sound Quality
  • Unbalanced Output, up to 1 Watt
  • Balanced Transformer driver Output
  • Ultra Compact Size
Log in or register for YOUR best price

The TX-1W is the ideal choice in on-site installations where the central telephone switching unit needs to be fed with music, voice or combined music/voice signals. There is a wide variety of telephone instruments in use. When a caller is placed on hold, the audio quality perceived is affected by the caller's own telephone, as well as the telephone lines, central switch and on-site equipment. Due to these variations, conventional audio amplifiers used as music-on-hold drivers frequently produce annoying artifacts at the caller's earpiece. Attempts to reduce listener fatigue through high-frequency rolloff alone tend to produce a muffled, tired sound. The TX-1W features a spectral response specifically characterized to match the broadest variations in telephone audio distribution, producing a lively, crisp, interesting sound without the annoying resonances and distortions prone to creating listener fatigue.

View full details

Specifications

Input:
Unbalanced via standard phono jack
Input Level:
-10 dBV nominal
Gain:
-10 dB to +25 dB (adjustable)
Frequency Response:
Tailored to phone systems within 20 Hz to 20 kHz spectrum
THD+N:
< 0.5% (1 kHz @ Maximum Output 1 W)
< 0.2% (1 kHz @ +4 dBu)
Residual Noise:
< -75 dB (referred to 600 Ω +4 dBu, or to 1 W RMS)
Outputs:
1 Balanced @ 600 Ω to drive transformer inputs 1 Unbalanced adjustable line-level to 1 W
Ambient Operating Environment:
0° C to 40° C
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 150 mA
Package Type:
Cardboard Box
WEEE weight:
0.215 lbs.
Shipping Weight:
0.275 lbs.
Tariff code:
8543.70.9860
Package Dimensions:
2 x 2 x 4 in.
