• RDL TX-A2 Balanced to Unbalanced Audio Converter
1 1

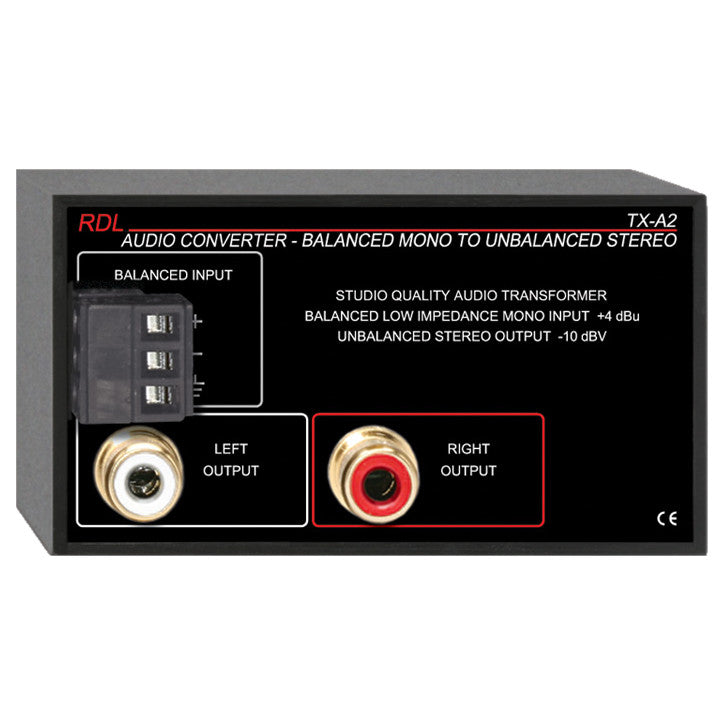

RDL TX-A2 Balanced to Unbalanced Audio Converter

RDL TX-A2 Balanced to Unbalanced Audio Converter

SoundPro Item: 72611 | Part Number: 001-7115

$130.11
$173.47 $130.11
Your Price Sold out
MSRP: $173.47 | MAP: $130.11

Usually ships in 5-7 business days

  • Unbalanced Audio Outputs from a Balanced Line
  • Balanced to Unbalanced Conversion
  • Mono Input to Stereo Output
  • +4 dBu Input Level to -10 dBV Output Level
  • Studio-Quality Transformer Isolation
  • Passive Converter with Output Jacks
Log in or register for YOUR best price

The TX-A2 is ideal for installations requiring passive isolation and level attenuation between a pro balanced line-level mono source and consumer equipment unbalanced inputs.

The TX-A2 is a complete unbalanced line-level audio output module. The front panel provides a detachable terminal block for connection of a balanced +4 dBu audio source. The input signal is coupled to two front-panel gold plated RCA jacks through a studio-quality isolation transformer. Each output is coupled through an attenuation network that produces a nominal -10 dBV level. Both output jacks may be used to feed two mono equipment inputs or one stereo input. A single output jack may be used for mono. Shielding is provided by the TX-A2's heavy duty aluminum enclosure.

Wherever professional format audio signals need to be converted to an unbalanced line level, the TX-A2 and TX-A2D (sold separately) are an ideal choice. Use them individually or in conjunction with other RDL products as part of a complete audio/video system.

View full details

Specifications

Dimensions
Dimensions
3.17" (8.05 cm) W; 1.76" (4.47 cm) H; 2.06" (5.23 cm) D 3.17 x 1.76 x 2.06 in
Package Dimensions
3.625x4.625x2.125"
Weight
Shipping Weight
0.72 lbs
WEEE Weight
0.57 lbs
Audio
Frequency Response (line level)
20 Hz to 20 kHz (±0.5 dB)
Total Harmonic Distortion
<0.05% (20 Hz to 20 kHz, +4 dBu input); <0.01% (1 kHz)
Connectivity
Input Connector 1
Detachable terminal block
Input Level
+4 dBu nominal; +22 dBu max
Output Connectors (2)
Gold plated phono jacks
Output Level
-10 dBV nominal
General
Ambient Operating Environment
0°C to 55°C
