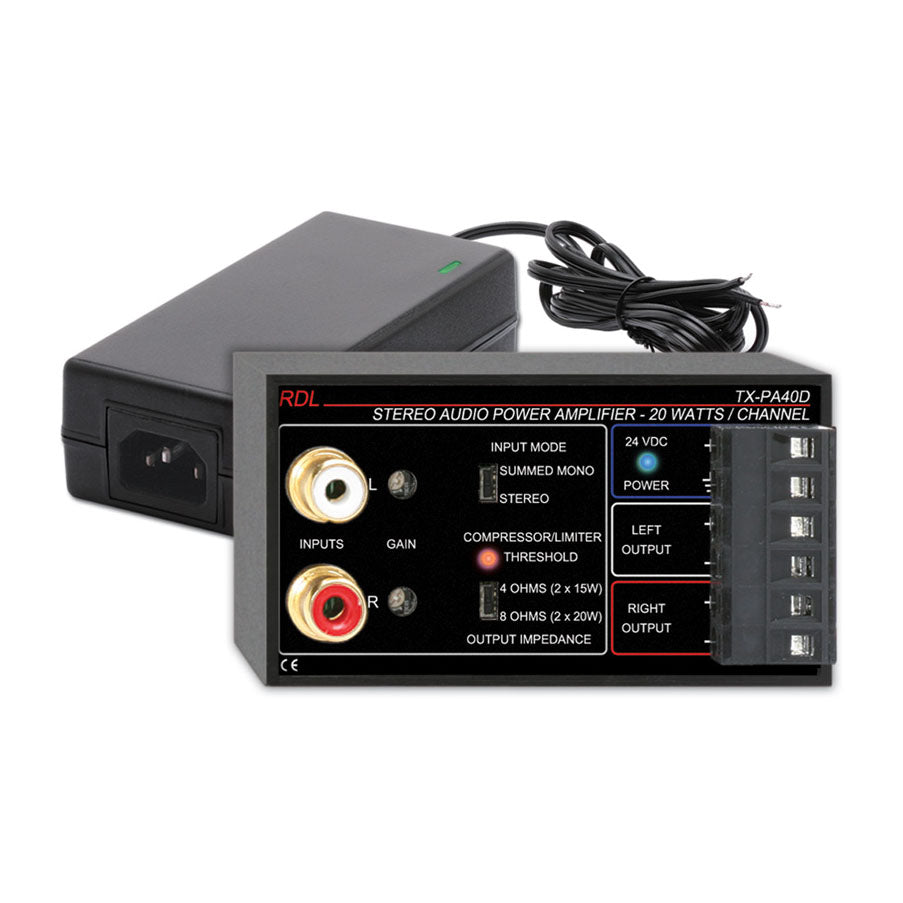

RDL TX-PA40D 40 W Stereo Audio Amplifier - 8 ohm, with Power Supply

RDL TX-PA40D 40 W Stereo Audio Amplifier - 8 ohm, with Power Supply

SoundPro Item: 77527 | Part Number: TX-PA40D

$332.52
$443.36 $332.52
Your Price Sold out
MSRP: $443.36 | MAP: $332.52

Usually ships in 5-7 business days

  • Stereo Audio Power Amplifier
  • 20 Watts RMS per Channel into 8 Ω - 40 Watts Total
  • 15 Watts RMS per Channel into 4 Ω - 30 Watts Total
  • Left and Right Unbalanced Phono Jack Inputs
  • Switch-Selectable Stereo or Mono Operation
  • Studio Quality, Aurally Transparent Compressor/Limiter
  • Compressor/Limiter Controls Clipping
  • Compressor Produces Maximized Average Output Power
  • Compression Enabled Using Input Level Adjustments
  • LED to Indicate Audio Compression Threshold
  • Outputs Drive 4 or 8 Ohm Speakers
  • High-Efficiency Class D Operation
  • Thermal and Short-Circuit Protection
  • TX-PA40D includes North American Cord; TX-PA40DE excludes Power Cord
Log in or register for YOUR best price
View full details

Specifications

Inputs (2):
Line level (-10 dBV nominal unbalanced), Left and Right
Input Impedance:
10 kΩ unbalanced
Gain Adjustments (2):
Single turn, one per channel
Minimum Input Levels:
-18 dBV (to cross compressor threshold)
Maximum Input Levels:
+15 dBV
Frequency Response:
20 Hz to 20 kHz (± 1 dB, 4 or 8 Ohms)*
THD+N:
< 0.1% (1 kHz, 1 W, 4 or 8 Ohms); < 1% (50 Hz to 20 kHz, 8 Ohms)**measured at compressor threshold level equaling 12 W RMS (8 Ohms) output power
Compressor:
Threshold nominally 2 dB below rated output, automatically adjusting attack and release times
Crosstalk:
Better than 60 dB (1 kHz, no compression)
Noise:
< -75 dB (below 20 W RMS)
Selectors:
Slide switches: Output Impedance 4 Ohms or 8 Ohms; Input Mode SUMMED MONO or STEREO
Output Power:
20 W RMS into 8 Ω per channel, 40 W RMS total; 15 W RMS into 4 Ω per channel, 30 W RMS total
Output Circuit:
Class D
Ambient Operating Environment:
0° C to 40° C Maximum; 20° C Recommended
Indicators (2):
Red LED: THRESHOLD LED indicates compressor activityBlue LED: POWER on
Power Requirement (Supply Included):
Input: 100 to 240 VAC, 50 to 60 Hz, 1.5 A, IEC C14; Output to module: 24 Vdc
Package Type:
Cardboard Box
Tariff code:
8543.70.9910
WEEE weight:
1.525 lbs.
Shipping Weight:
1.655 lbs.
Package Dimensions:
5.125 x 2.5 x 5.875 in.
Dimensions:
3.17" (8.05 cm) W; 1.76" (4.47 cm) H; 2.06" (5.23 cm) D3.17 x 1.76 x 2.06 in
