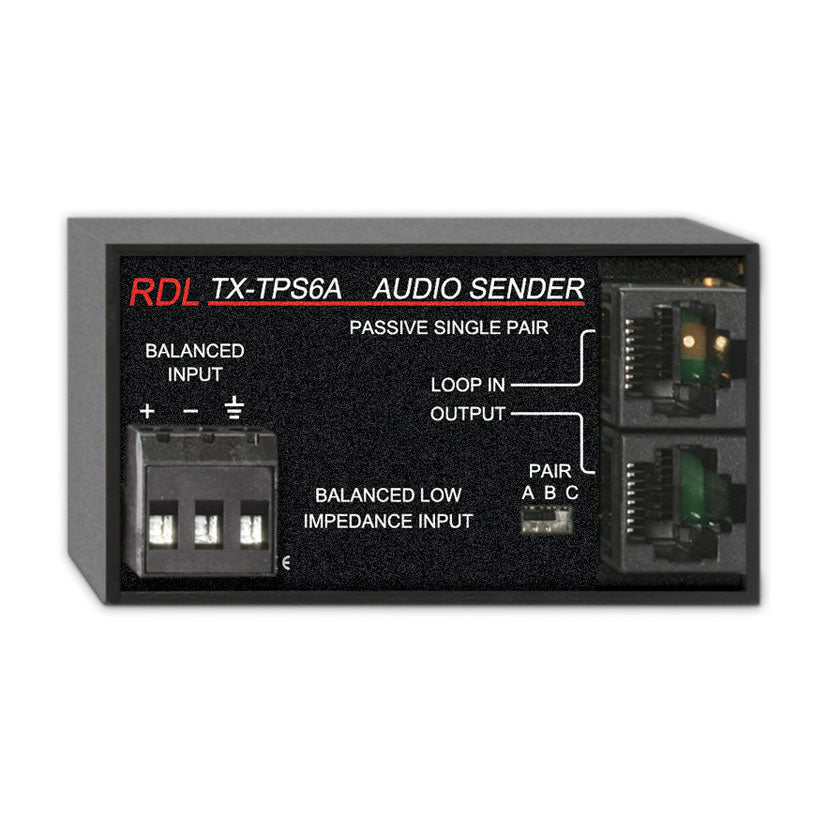

RDL TX-TPS6A Passive Single-Pair Sender - Twisted Pair Format-A - Balanced audio line input

RDL TX-TPS6A Passive Single-Pair Sender - Twisted Pair Format-A - Balanced audio line input

SoundPro Item: 77543 | Part Number: TX-TPS6A

$122.73
$163.64 $122.73
Your Price Sold out
MSRP: $163.64 | MAP: $122.73

Usually ships in 5-7 business days

  • Single +4 dBu Low-Impedance Balanced Audio Input
  • Input on Detachable Terminal Block
  • Switch Selects which RJ45 Pair (A, B or C) is Fed
  • Signal and Power Pair Pass-Through from LOOP IN Jack
  • Passive Circuitry Does Not Require Power
  • Galvanic Isolation through a Studio-Quality Transformer
  • Daisy-Chain with Single-Pair or Two-Pair Format-A Senders
Log in or register for YOUR best price

The TX-TPS6A is a single-pair audio sending module compatible with RDL Format-A twisted pair products. One low-impedance +4 dBu balanced line-level audio source connects to the module using the detachable terminal block. A studio-quality transformer provides isolation between the audio source and the RJ45 OUTPUT. The TX-TPS6A is a single-pair sender, feeding the input signal to the cable pair set on the front-panel switch during installation. This module drives only one cable pair, therefore a LOOP IN RJ45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to the LOOP IN jack, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The TX-TPS6A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C. The TX-TPS6A is a passive module that does not require power to operate. If power is present on a cable connected to the LOOP IN jack, that power is passed through to the modules connected to the OUTPUT jack.

View full details

Specifications

Input:
Low-impedance Balanced; Recommended source impedance < 150 Ω
Input Connection:
Detachable Terminal Block (Balanced)
Input Level:
+4 dBu balanced; +22 dBu Max
Format-A Signal Pair Used:
Switch-selectable A, B, or C
Format-A Input:
RJ45 LOOP IN
Output:
RDL TP Format-A
Output Connection:
RJ45
Frequency Response:
20 Hz to 20 kHz (± 0.1 dB)
THD+N:
< 0.035% (50 Hz to 20 kHz, +4 dBu); < 0.1% (20 Hz to 20 kHz, +4 dBu)
Headroom above +4 dBu:
> 18 dB
CMRR:
> 85 dB (50 Hz to 150 Hz)
Ambient Operating Environment:
0° C to 50° C
Power Requirement:
Passive
Dimensions:
3.17" (8.05 cm) W; 1.76" (4.47 cm) H; 2.06" (5.23 cm) D
3.17 x 1.76 x 2.06 in
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.74 lbs.
Shipping Weight:
0.89 lbs.
Package Dimensions:
2 x 2 x 4 in.
