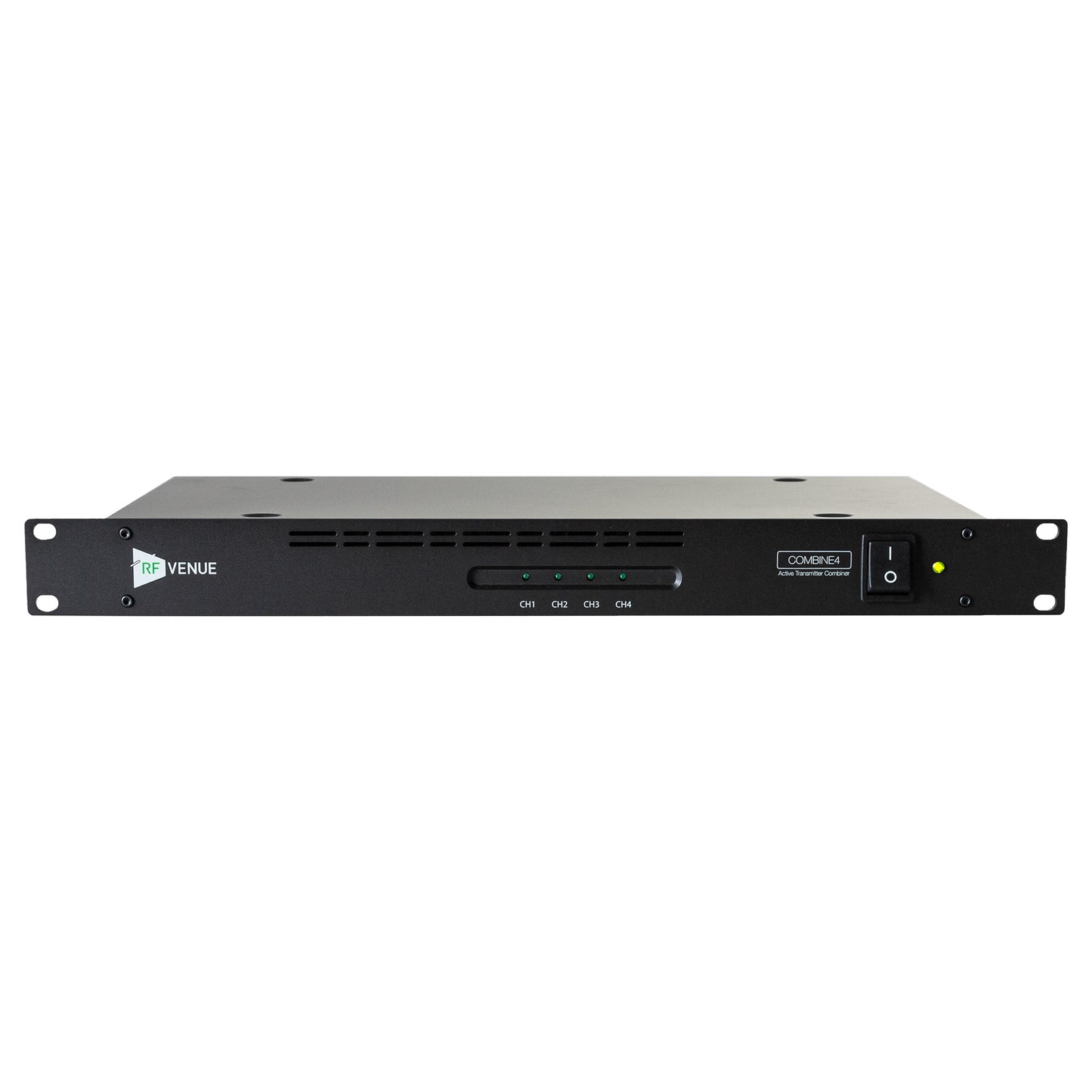

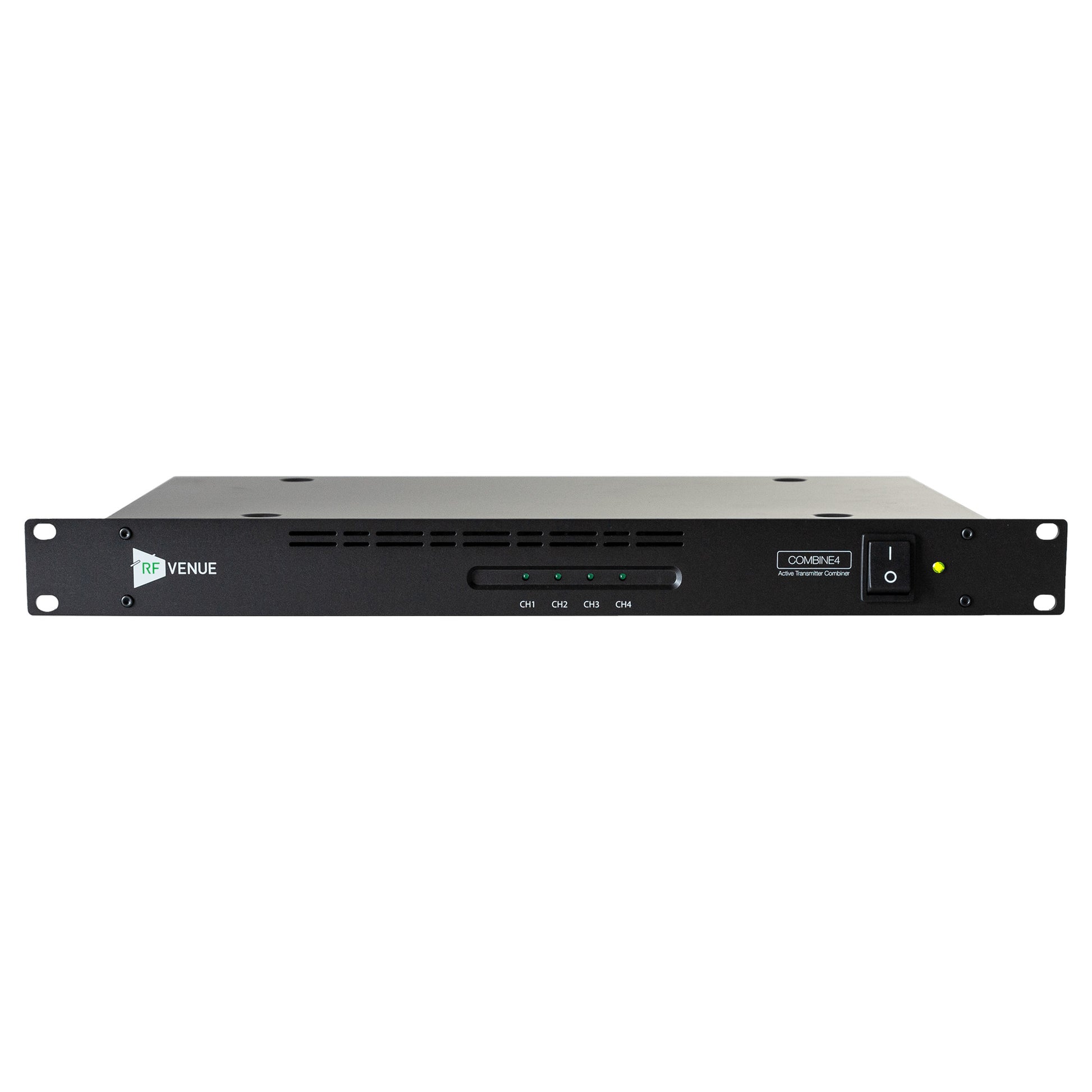

RF Venue COMBINE4 Signal Combiner

RF Venue COMBINE4 Signal Combiner

SoundPro Item: 51611 | Part Number: COMBINE4

$849.00
$849.00 $849.00
Your Price Sold out
MSRP: $849.00 | MAP: $849.00

Usually ships in 5-7 business days

  • Frequency range: 470-960 MHz
  • Input connectors: 4X BNC
  • Full system gain: 0 dB (±2 dB)
  • Maximum RF input power: +20 dBm (100 mW)
  • LED indicator (input signal threshold): > +5 dBM (Threshold power)
  • Power consumption: 60 W
  • I / O: 4X RF inputs. 1 antenna out. 4 DC outputs
Log in or register for YOUR best price

The COMBINE4 IEM transmitter combiner brings together up to four in-ear monitor transmitter signals into a single rear panel mounted antenna connector.

Any brand IEM may be used, as well as any type of directional antenna. It also provides DC power to up to four IEM transmitters to reduce cable clutter and wall warts. IEM transmitter combination is important for multi-channel systems to minimize intermodulation products arising from multiple adjacent transmitters interfering with one another.

The CP Beam antenna is a recommended accessory for the COMBINE4 and is available in a bundled package. Replacement power cables are available.

View full details

Specifications

Dimensions
Dimensions
480(W) X 45(H) X 260(D) mm
Electrical
Power Consumption
60 W
Input AC Voltage
100~240 VAC, 50/60 Hz, Max 2A
Output DC Voltage
+12 V. 1 A max (4 outputs total 48 W)
Audio
Full System Gain
0 dB (±2 dB)
Connectivity
Input Connectors
4X BNC
Maximum RF Input Power
+20 dBm (100 mW)
LED Indicator (input Signal threshold)
> +5 dBM (Threshold power)
Output DC Connectors
5.5mm OD, 2.1mm ID
Shipping
Weight
2.3 Kgs
General
I / O
4X RF inputs; 1 antenna out; 4 DC outputs.
RF
Frequency Range
470-960 MHz
