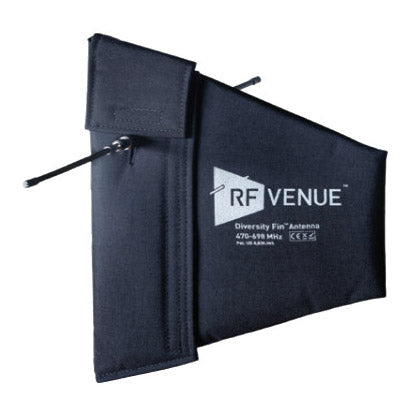

RF Venue DFIN Diversity Fin Antenna
RF Venue DFIN Diversity Fin Antenna
SoundPro Item: 52478 | Part Number: DFIN
In stock and ready to ship
- Ideal all-purpose external antenna for diversity microphone systems of any brand
- Improves RF and audio performance
- Reduces dropouts using a cross-polarized, hybrid design
- Combines one LPDA and one dipole antenna in a right angle configuration
The patented Diversity Fin® is a multi-purpose antenna for wireless microphones that reduces dropouts using a cross-polarized, hybrid design. It combines one LPDA and one dipole antenna in an orthogonal (right angle) configuration. One element captures vertically polarized waves, and the other horizontally polarized waves-doing the same job as two "shark fin" paddles while greatly improving RF and audio performance.
To use, just connect both the A and B outputs on any antenna distributor or microphone receiver and point toward the stage.
The Diversity Fin has found widespread adoption across multiple pro audio segments for its performance, convenience, space, and cost benefits. From high profile live sound events, to film and TV productions, to routine installations in schools and churches, the Diversity Fin is the ideal all-purpose external antenna for diversity microphone systems of any brand. A parts kit is available to replace lost whip antennas and mounting blocks.
- Electrical
- Operating frequency: 470–698 MHz
- Bandwidth: 228 MHz
- Average return loss:-9.4 dB
- Impedance: 50Ω
- LPDA
- Beam width: 140° azimuth
- F/B ratio: -8 dB
- F/S ratio: -5 dB
- Gain: 5 dBd
- Dipole
- Beam width: 100° azimuth
- F/B ratio: -5 dB
- F/S ratio: -13 dB
- Gain: 1.8 dBd
- Physical
- Length: 300mm
- Height: 370mm
- Weight: 454g
- Mount threads: 1/4-20, 3/8-16, 5/8-27
- Operating temperature: -23°C–54°C
- Connector(s): Two (2) BNC female
