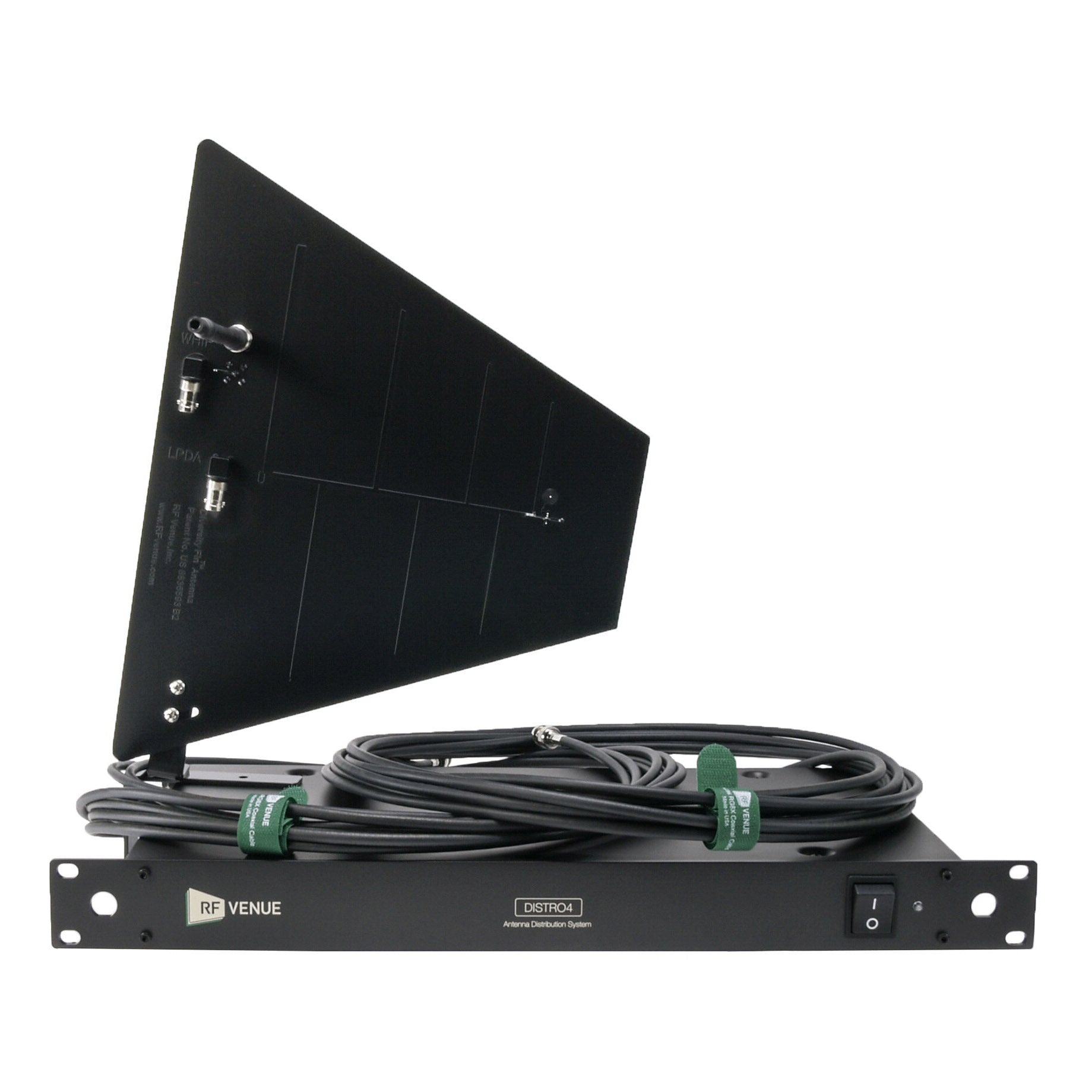

RF Venue DFINBDISTRO4 Distribution System with Antenna, Black

RF Venue DFINBDISTRO4 Distribution System with Antenna, Black

SoundPro Item: 52480 | Part Number: DFINBDISTRO4

$1,449.00
$1,449.00 $1,449.00
Your Price Sold out
MSRP: $1,449.00 | MAP: $1,449.00

In stock and ready to ship

  • Bundle includes 4-Channel Antenna Distributor with Black Diversity Fin Antenna and Cables
  • Also includes the black DFIN Diversity Fin Antenna
  • Supplies RF and DC power to four wireless microphone systems of any brand
  • Allows for splitting two incoming antenna signals across multiple receivers
Log in or register for YOUR best price

The 4-Channel Antenna Distributor with Black Diversity Fin Antenna and Cables Bundle from RF Venue features the DISTRO4 which supplies RF and DC power to four wireless microphone systems of any brand, allowing for splitting two incoming antenna signals across multiple receivers.

The bundle also includes the black DFIN Diversity Fin Antenna, a simple to operate wireless microphone antenna that reduces microphone dropouts and interference in tough RF environments. The matte black antenna can be wall mounted using the supplied L-bracket for use in permanent installations. DC and RF jumper cables required for four-channel microphone system operation are also included, along with two 25-foot RG8X coaxial cables.

View full details
  • Diversity Fin
    • Electrical
      • Operating frequency: 470–698 MHz
      • Bandwidth: 228 MHz
      • Average return loss: -9.4 dB
      • Impedance: 50Ω
    • LPDA
      • Beam width: 140° azimuth
      • F/B ratio: -8 dB
      • F/S ratio: -5 dB
      • Gain: 5 dBd
    • Dipole
      • Beam width: 100° azimuth
      • F/B ratio: -5 dB
      • F/S ratio: -13 dB
      • Gain: 1.8 dBd
    • Physical
      • Length: 300mm / 12”
      • Height: 370mm / 14.6”
      • Weight: 454g / 1lb
      • Mount threads: 1/4-20, 3/8-16, 5/8-27
      • Operating temperature: -23–54°C / -9–130°F
      • Color: Black or white
      • Connector(s): (2) BNC female
  • Distro4
    • Frequency range: 470-952 MHz
    • RF output level (gain): 3 dB (±2 dB)
    • Cascade output level: 0 dB ~ +2 dB
    • Output connection isolation: ≥ 25 dB
    • Third order intercept point: 24 dBm
    • Impedance: 50Ω
    • Power consumption: 60 W
    • Input AC voltage: 100~240 V switching
    • DC over coax (to external antennas):12-14 VDC
    • Output DC voltage (to receiver jacks): +12 V
    • Output DC connectors; 5.5mm OD, 2.1mm ID
    • Dimensions (WxHxD): 19x2x10 inches (480x45x450 mm)
    • Weight: 4.75 lbs (2.15 kg)
