RF Venue DFIND9 DISTRO9 HDR Diversity Fin Bundle

RF Venue DFIND9 DISTRO9 HDR Diversity Fin Bundle

SoundPro Item: 44474 | Part Number: DFIND9

$2,999.00
$2,999.00 $2,999.00
Your Price Sold out
MSRP: $2,999.00 | MAP: $2,999.00

In stock and ready to ship

  • Antenna Distribution System: Highest-quality RF signal distribution for wireless microphones
  • Antenna Distribution System: Nine low-noise channels of diversity wireless
  • Antenna Distribution System: Low-noise figure amplifiers and superior gain structure provide over 60 dB of dynamic range across the spectrum
  • Antenna Distribution System: Any output can be cascaded to a second DISTRO9 HDR for up to 17 wireless microphone channels in just two units of rack space
  • Antenna Distribution System: Two zones of antenna coverage
  • Antenna Distribution System: Superior gain flatness and stability across VHF low, VHF high, T-Band, UHF, and 900 MHz ranges
  • Antenna Distribution System: Dedicated DC power port for receivers and accessories
  • Diversity Fin: Designed to be used with wireless microphone systems and other UHF receivers incorporating diversity reception
  • Diversity Fin: Incorporates both directional LPDA and bidirectional dipole elements
  • Diversity Fin: Captures both horizontal and vertically polarized waves in a single unit
  • Diversity Fin: Improves signal consistency in indoor and reflective environments
  • Diversity Fin: Single Diversity Fin replaces two traditional LPDA antennas
Log in or register for YOUR best price

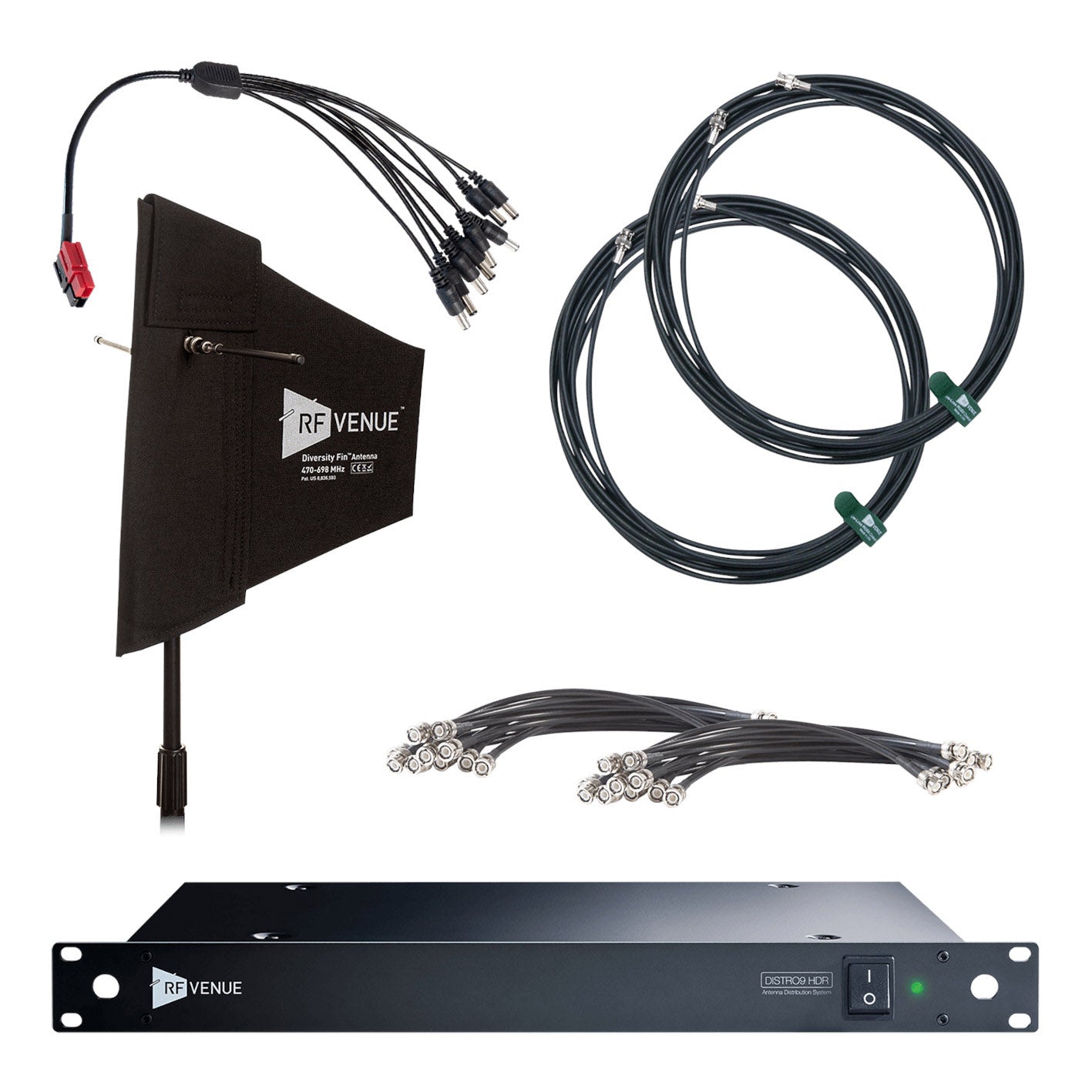

The RF Venue DFIND9 DISTRO9 HDR Bundle includes a DFIN antenna, 2 coaxial cables, 10 each of 1.5’ and 2’ interconnect cables, and a power distribution cable kit.

View full details
  • Diversity Fin
    • Electrical
      • Operating frequency: 470–698 MHz
      • Bandwidth: 228 MHz
      • Average return loss: -9.4 dB
      • Impedance: 50Ω
    • LPDA
      • Beam width: 140° azimuth
      • F/B ratio: -8 dB
      • F/S ratio: -5 dB
      • Gain: 5 dBd
    • Dipole
      • Beam width: 100° azimuth
      • F/B ratio: -5 dB
      • F/S ratio: -13 dB
      • Gain: 1.8 dBd
    • Physical
      • Length: 300mm / 12”
      • Height: 370mm / 14.6”
      • Weight: 454g / 1lb
      • Mount threads: 1/4-20, 3/8-16, 5/8-27
      • Operating temperature: -23–54°C / -9–130°F
      • Color: Black or white
      • Connector(s): (2) BNC female
  • Distro9 HDR Antenna Distribution System
    • Frequency range: 50-1000 MHz (VHF, UHF, +900 bands)
    • RF output level (gain): ± 3dB
    • Output connection isolation: 60dB @ 510MHz, 80dB @ 200 MHz
    • Third order intercept point: 15dBm @ VHF, 20+ @ UHF
    • Impedance: 50Ω
    • Power Requirements: 50/60 HZ, 2A
    • Fuse: T3.15A/250V
    • Input AC voltage: 100-240 VAC
    • DC over coax (to external antennas): 12 VDC 100mA
    • Output DC voltage (to receiver jacks): 12V 3A
    • Output DC connectors: Anderson Power Pole
    • Dimensions (WxHxD): 19x2x10 in (480x45x250mm)
    • Unit Weight: 6lbs (2.7kg)
