• RF Venue DISTRO4 Distribution System
1 1

RF Venue DISTRO4 Distribution System

RF Venue DISTRO4 Distribution System

SoundPro Item: 52519 | Part Number: DISTRO4

$649.00
$649.00 $649.00
Your Price Sold out
MSRP: $649.00 | MAP: $649.00

In stock and ready to ship

  • Reduce IMD and crosstalk while decluttering your rack with regulated 12VDC power to your receivers
  • 1RU full rack width to install near receivers
  • Compatible with all manufacturers
Log in or register for YOUR best price

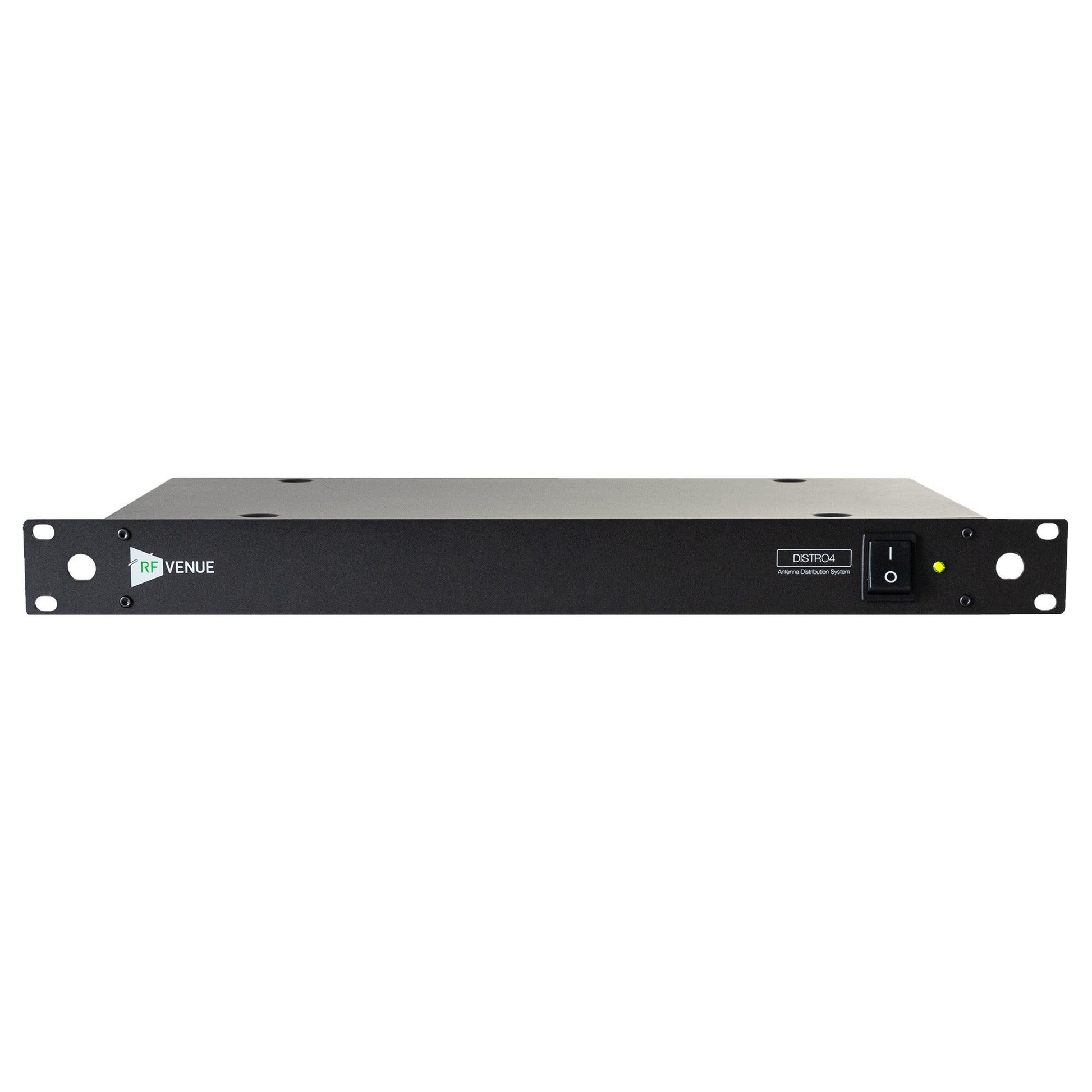

RF Venue's DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true "distribution amplifier," DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair.

DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.

View full details

Specifications

Dimensions
Dimensions (W X H X D)
480 x 45 x 250 mm
Electrical
Power Consumption
60 W
Input AC Voltage
100~240 V switching
Output DC Voltage (to Receiver jacks)
+12 V =-=-= 1 A x 4
Audio
RF Output Level (gain)
3 dB (±2 dB)
Impedance
50Ω
Connectivity
Cascade Output Level
0 dB ~ +2 dB
Output Connection Isolation
≥ 25 dB
Output DC Connectors
. 5.5mm OD, 2.1mm ID
Shipping
Weight
2.15 kgs
General
Third Order Intercept Point
24 dBm
DC Over Coax (to External antennas)
12-14 VDC
RF
Frequency Range
470-952 MHz
