• RF Venue DISTRO9 HDR Diversity Fin Bundle
1 1

RF Venue DISTRO9 HDR Diversity Fin Bundle

RF Venue DISTRO9 HDR Diversity Fin Bundle

Soundpro Item: 44476 | Part Number: DFINBD9

$2,999.00
$2,999.00 $2,999.00
Your Price Sold out
MSRP: $2,999.00 | MAP: $2,999.00
Log in or register for YOUR best price

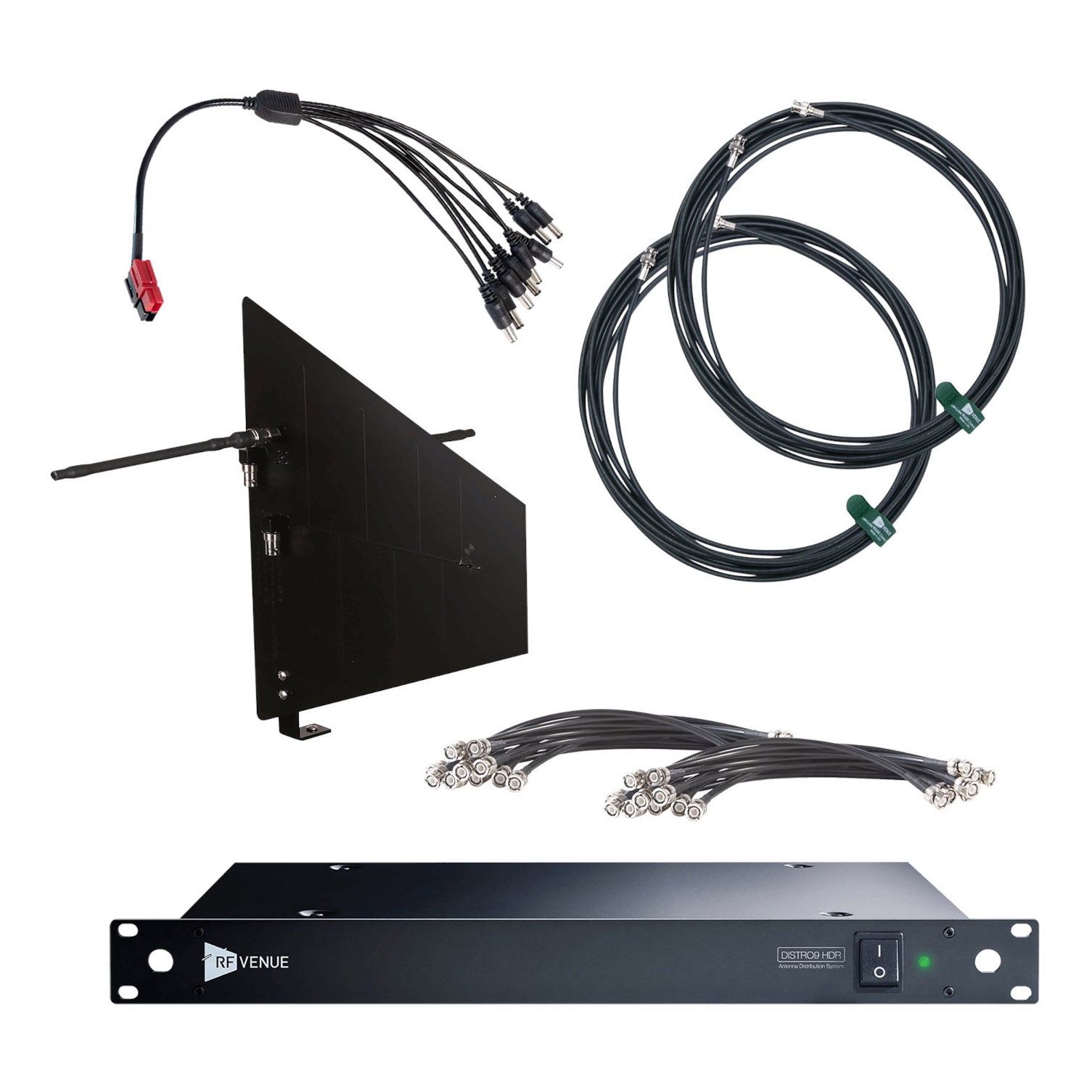

This RF Venue bundle includes one DISTRO9 HDR 9-channel antenna distribution system, one DFINB Diversity Fin™ wall-mount antenna (black) for wireless microphones, two RG8X25 25-foot coaxial cables with BNC (male) connectors, DC-KIT-D9 DC power distribution cable kit, and two RG8X1.5-10 10-packs of 1.5-foot interconnect cables.

View full details

Specifications

  • Diversity Fin
    • Electrical
      • Operating frequency: 470–698 MHz
      • Bandwidth: 228 MHz
      • Average return loss: -9.4 dB
      • Impedance: 50Ω
    • LPDA
      • Beam width: 140° azimuth
      • F/B ratio: -8 dB
      • F/S ratio: -5 dB
      • Gain: 5 dBd
    • Dipole
      • Beam width: 100° azimuth
      • F/B ratio: -5 dB
      • F/S ratio: -13 dB
      • Gain: 1.8 dBd
    • Physical
      • Length: 300mm / 12”
      • Height: 370mm / 14.6”
      • Weight: 454g / 1lb
      • Mount threads: 1/4-20, 3/8-16, 5/8-27
      • Operating temperature: -23–54°C / -9–130°F
      • Color: Black or white
      • Connector(s): (2) BNC female
  • Distro9 HDR Antenna Distribution System
    • Frequency range: 50-1000 MHz (VHF, UHF, +900 bands)
    • RF output level (gain): ± 3dB
    • Output connection isolation: 60dB @ 510MHz, 80dB @ 200 MHz
    • Third order intercept point: 15dBm @ VHF, 20+ @ UHF
    • Impedance: 50Ω
    • Power Requirements: 50/60 HZ, 2A
    • Fuse: T3.15A/250V
    • Input AC voltage: 100-240 VAC
    • DC over coax (to external antennas): 12 VDC 100mA
    • Output DC voltage (to receiver jacks): 12V 3A
    • Output DC connectors: Anderson Power Pole
    • Dimensions (WxHxD): 19x2x10 in (480x45x250mm)
    • Unit Weight: 6lbs (2.7kg)
