RF Venue ILAMP-ACT In-Line Amplifier
RF Venue ILAMP-ACT In-Line Amplifier
SoundPro Item: 57036 | Part Number: ILAMP
Usually ships in 5-7 business days
- A BNC female to BNC female adapter or coax jumper is required for cascade (not included)
- Two In-Line Amps are required for diversity applications

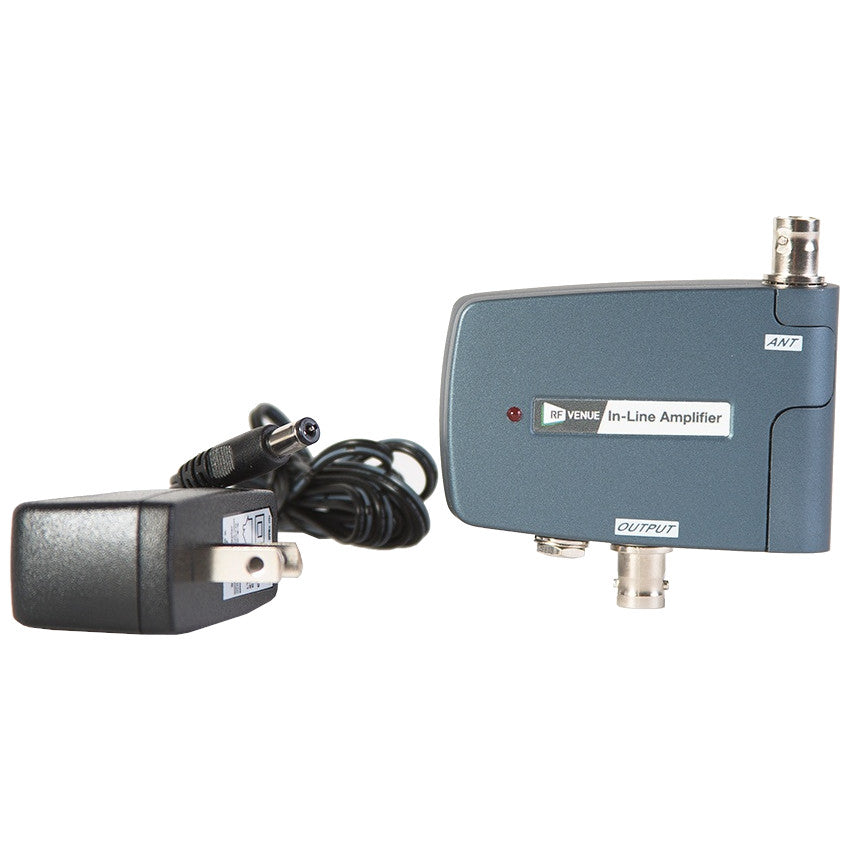

The RF Venue ILAMP-ACT In-Line Amplifier is designed to compensate for signal loss on long coax runs. One in-line amplifier can compensate 10dB of cable attenuation which is about 20 meters of RG-58 cable. Can be powered by power output from an antenna distributor/receiver or DC adapter (+12V/0.5A). The red light indicates the unit is getting power. Up to two can be cascaded.
A BNC female to BNC female adapter or coax jumper is required for cascade (not included). Two are required for diversity applications.
A Wall mount adapter is included.
- Electrical
- Frequency range: 470~960 MHz
- Gain (nominal): 10 dB
- Power Requirements: 12 VDC; 100mA
- Power Levels: -60 to -20 dBm
- RF Input/Output: BNC Female
- Physical
- Dimensions: 75x18.2x77mm / 3x.7x3”
- Weight: 140g / 5oz
