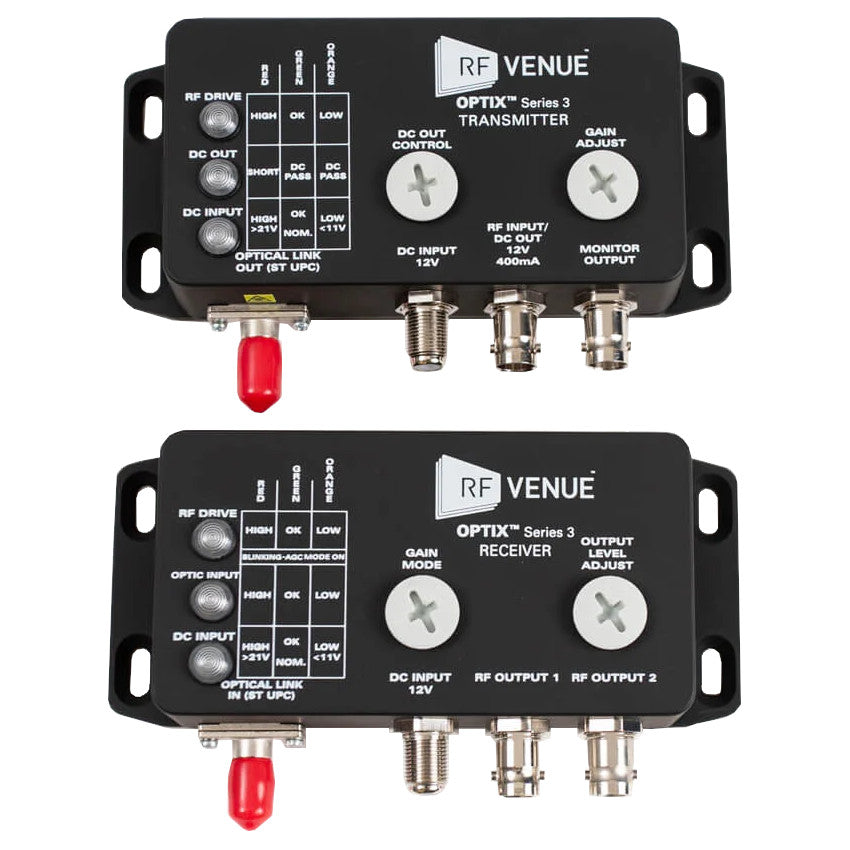

RF Venue OPTIX2-S3 Optix RF Over Fiber System

RF Venue OPTIX2-S3 Optix RF Over Fiber System

SoundPro Item: 42205 | Part Number: OPTIX2-S3-US

Regular price $7,998.00
Regular price $7,998.00 Sale price $7,998.00
Your Price Sold out
MSRP: $7,998.00 | MAP: $7,998.00

Usually ships in 5-7 business days

  • Remote placement of antennas now available over long distances with no signal loss

The RF Venue OPTIX2-S3 Optix RF Over Fiber System uses the power of light to allow you to position RF antennas up to several miles away from the receivers. By converting RF energy into light, you can ditch the traditional coaxial cables and locate your antennas and wireless equipment with much greater flexibility. In addition, your wireless microphones will not lose signal with OPTIX Series 3.

The OPTIX Series 3 is a high-performance RF over fiber optic (RFoF) conversion system designed to facilitate the remote placement of wireless audio antennas over long distances. RF Venue's OPTIX Series 3 Transmitter module converts the RF signals from an antenna into a single-mode optical signal. This sends that signal down a fiber-optic cable to the OPTIX Receiver, where the source signal is converted back into RF.

The OPTIX system extends the range of antenna placement up to several miles apart, as well as between floors in buildings. This means you can ditch the bulky coax cables without losing any RF signal to your wireless microphones.

OPTIX Series 3 is perfect for live production and installed sound systems. It features extensive configurable controls to help the user manage signal level, apply DC power for active antennas or amplifiers, and even directly monitor outputs to dial in a performance. In addition, OPTIX Series 3 is compatible with any brand of wireless audio system and can be used across VHF, UHF, and the 900 MHz bands.

View full details
  • Electrical
    • Typical operating frequency: 175-213, 470–698, 900-960 MHz
    • VSWR avg: < 2.5:1
    • Impedance (nom): 50Ω
    • Max RF input power: < 0 dBm / 1 mW
    • DC operating voltage: 5–22V
    • Power supply voltage: 12.25 VDC
    • Tx Module Power Draw: ~166 mA @ 12VDC
    • Rx Module Power Draw: ~258 mA @ 12VDC
    • Optical Tx wavelength: 1310 nm
  • Physical
    • Dimensions (each, including flange and connectors): 138 X 77 X 33 mm / 5.4x3x1.3”
    • Tx weight: 223 g / .5lb
    • Rx weight: 229 g / .5lb
    • Operating temperature: -25C–75C / -13–167F
    • RF Connectors: BNC female
    • Optical connectors: ST/UPC
