RF Venue D-OMNID9 Diversity Omni Antenna DISTRO9 Bundle

RF Venue D-OMNID9 Diversity Omni Antenna DISTRO9 Bundle

SoundPro Item: 124438 | Part Number: D-OMNID9

$3,099.00
$3,099.00 $3,099.00
Your Price Sold out
MSRP: $3,099.00 | MAP: $3,099.00

Usually ships in 5-7 business days

  • Patented Dual-Antenna Diversity Design Captures Vertical And Horizontal Polarization
  • Weather-Resistant Construction With Cordura Cover For Outdoor Deployment
  • Nine-Channel Multi-Zone RF Distribution In Single Rack Unit
  • Low-Noise Amplifiers With Superior Gain Structure Across Full Spectrum
  • Integrated DC Power Via DC-OCTOPUS Cable Powers Up To Eight Receivers
  • Premium Double-Shielded USA-Made RG8X Coaxial Cabling Tested For Performance
Log in or register for YOUR best price

The D-OMNID9 bundle combines RF Venue's patented polarization diversity antenna technology with professional-grade RF distribution and premium cabling to deliver complete wireless microphone coverage for touring, installed, and outdoor live sound applications. Engineers and integrators designing multi-zone wireless systems—whether covering large venues, multiple rooms, or outdoor areas—get everything required to configure up to 9 channels in a single package.

The Diversity Omni Antenna captures both vertically and horizontally polarized signals using two antennas on one stand, dramatically reducing the signal dropouts common in single-antenna setups. This design eliminates the need for two separate antenna stands and offers flexible placement in tight stage layouts or wide-area outdoor deployments. The weather-resistant construction and included Cordura nylon cover enable secure outdoor installation at sports venues, theme parks, and amphitheaters.

The DISTRO9 HDR occupies just one rack unit while providing 9 outputs and inputs for 2 antenna zones, allowing seamless coverage across large spaces or separate rooms. Low-noise figure amplifiers and superior gain structure deliver high dynamic range across the spectrum. Integrated DC power via the included DC-OCTOPUS power cable feeds up to 8 wireless receivers and active antennas, eliminating wall warts and saving rack space. All included RG8X coaxial cables are made in USA, double-shielded, and tested on calibrated network analyzers for guaranteed RF performance.

Downloads

View full details

Specifications

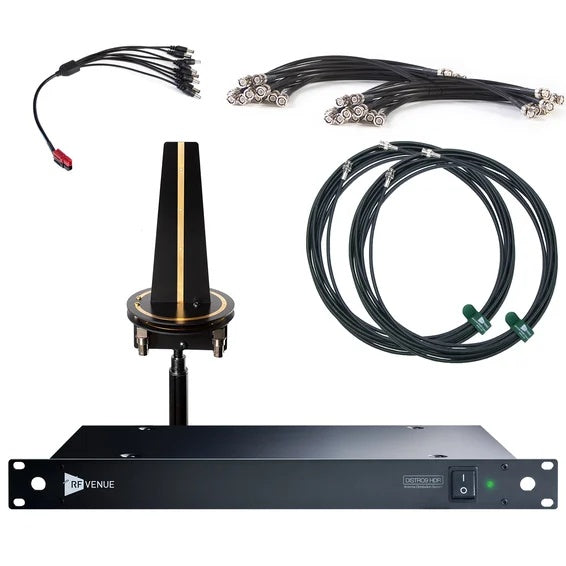

Contents
Diversity Omni Antenna
1
DISTRO9-HDR 9-Channel RF Distributor
1
RG8X Coaxial Cable With BNC Connectors (25 feet)
2
RG8X Interconnect Cable 10-Pack (1.5 feet)
1
RG8X Interconnect Cable 10-Pack (2 feet)
1
DC-OCTOPUS Power Cable
1
Antenna System
Polarization Diversity
Yes
Coverage Pattern
Omnidirectional
Connector Type
BNC Male
Distribution
Channels
9
Antenna Zones
2
Rack Units
1
DC Power Outputs For Receivers
8
Materials
Coaxial Cable Construction
Double-Shielded Braid Over Foil
Cable Impedance
50 ohms
Antenna Cover Material
Cordura Nylon
Manufacture Origin
USA (Coaxial Cabling)
