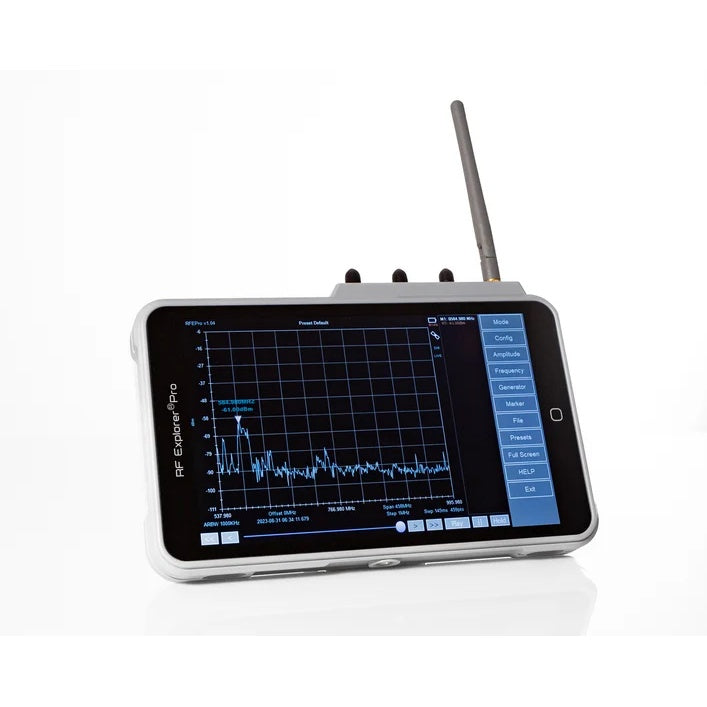

RF Venue RF-EXPLORER-PRO 6 GHz Spectrum Analyzer

RF Venue RF-EXPLORER-PRO 6 GHz Spectrum Analyzer

SoundPro Item: 141213 | Part Number: RF-EXPLORER-PRO

Regular price $1,599.00
Regular price $1,599.00 Sale price $1,599.00
Your Price Sold out
MSRP: $1,599.00 | MAP: $1,599.00

Usually ships in 5-7 business days

  • 6 GHz Spectrum Analyzer With Integrated Tracking Generator For Complete RF Characterization
  • Built-In Frequency Coordination Engine Enables Fast Intermodulation Analysis And Real-Time Interference Detection
  • WiFi Analyzer Mode Visualizes 2.4 And 5 GHz Bands To Identify Clear Channels For Wireless Audio Systems
  • Record, Save, And Replay Spectrum Data In Binary And CSV Formats For Documentation And Analysis
  • Remote Network Control Via USB-To-Ethernet Adapter And VNC For Flexible Venue Monitoring
  • HDMI Output Supports External Display For Real-Time RF Performance Visualization During Events
  • Configurable Alert Limits Provide Continuous Monitoring With Notifications For Critical RF Issues

The RF Venue RF-EXPLORER-PRO is purpose-built for wireless audio professionals who need to design, deploy, and continuously monitor complex microphone and in-ear monitor systems across challenging RF environments. The integrated 6 GHz spectrum analyzer, tracking generator, and frequency coordination engine deliver fast intermodulation analysis and real-time interference detection without requiring external software. The intuitive touchscreen interface supports advanced visualization modes—Zero Span, Waterfall 2D and 3D, and Power Channel—enabling techs to diagnose RF issues and optimize channel selection on-site.

Professionals use the RF-EXPLORER-PRO to patch directly into antenna distribution systems, receive antennas, and bandpass filters, measuring system performance and debugging coverage gaps before soundcheck. The built-in WiFi Analyzer identifies congested 2.4 and 5 GHz bands used by digital consoles and network devices, helping isolate clean frequencies for wireless audio. Record and replay spectrum data in binary or CSV format, export to Excel or RF Venue's Wireless System Builder, and control the unit remotely over Ethernet via VNC for real-time monitoring from front-of-house or across the venue during a show.

Downloads

View full details

Specifications

Connectivity
Spectrum Analyzer Input
SMA (BNC Adapter Or Jumper Cable Compatible)
Video Output
HDMI
Network Control
USB-To-Ethernet Adapter (VNC)
Data Export
USB Drive
Included Items
USB Charger
Yes
Padded Carrying Case
Yes
