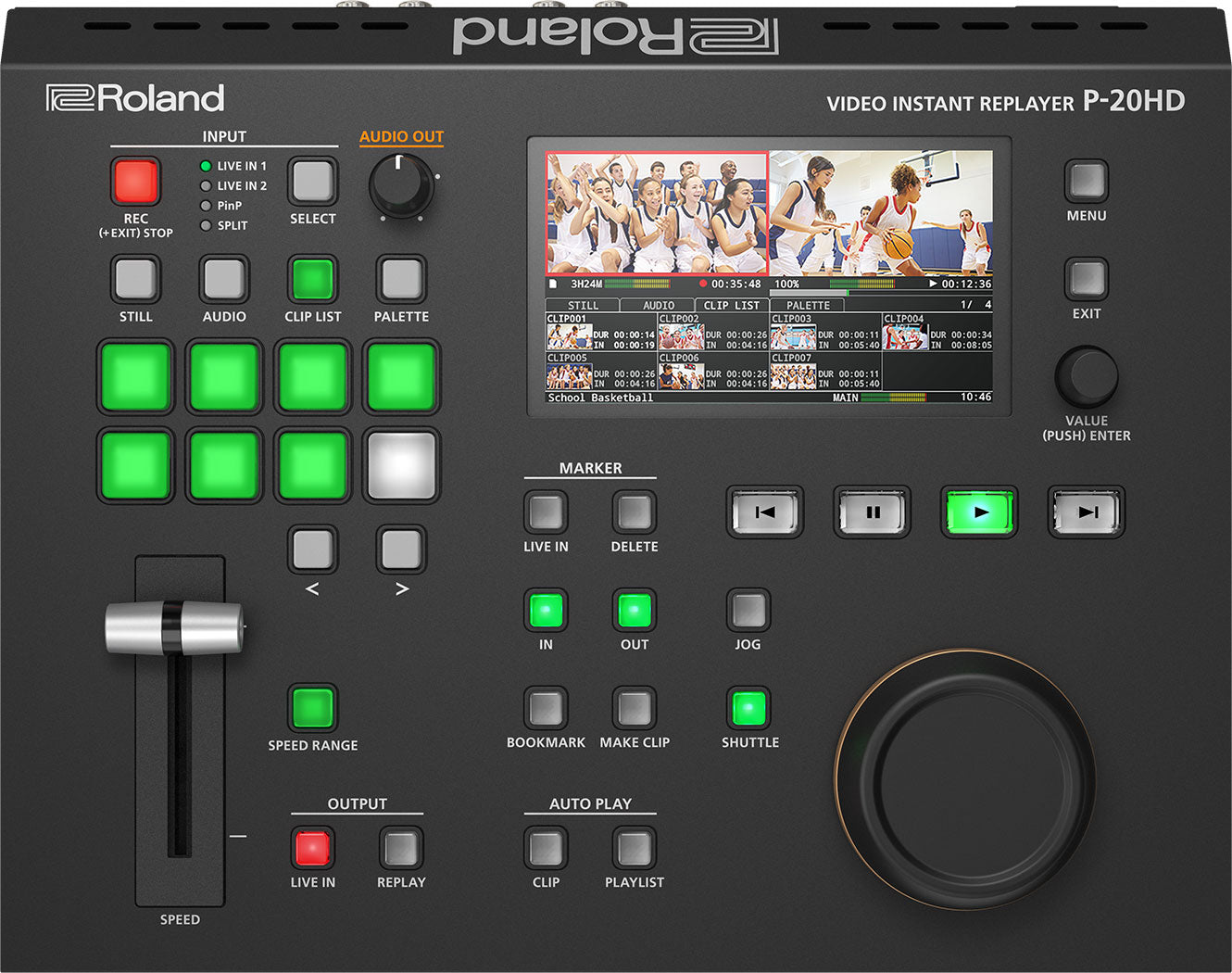

  • Roland P-20HD Top

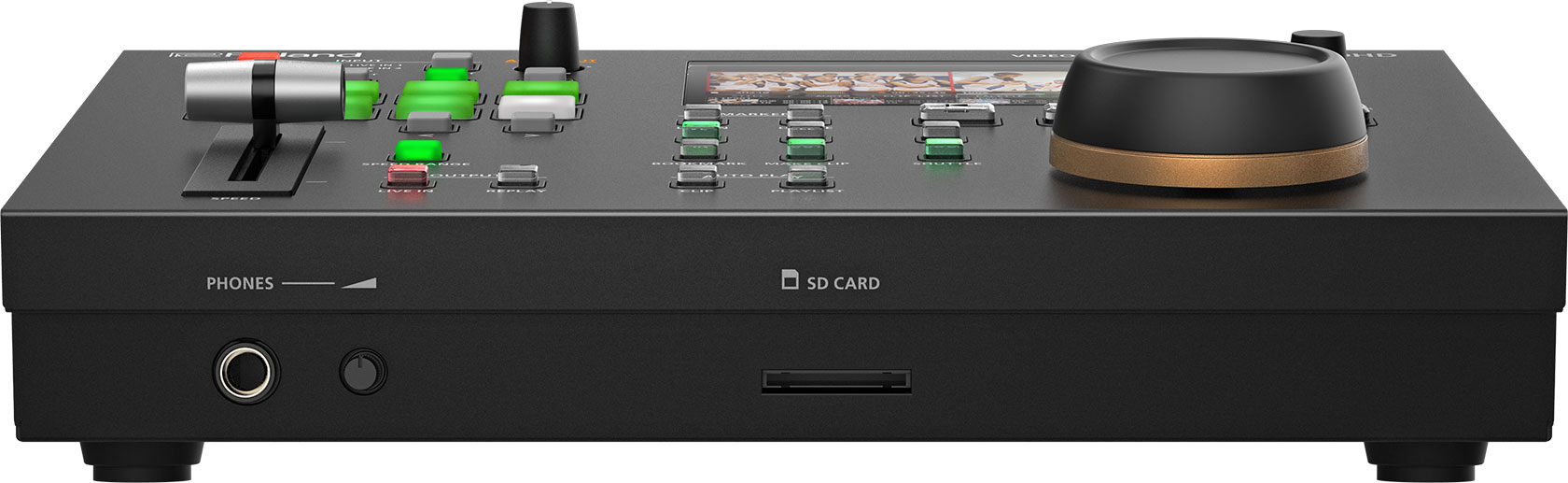

  • Roland P-20HD Front

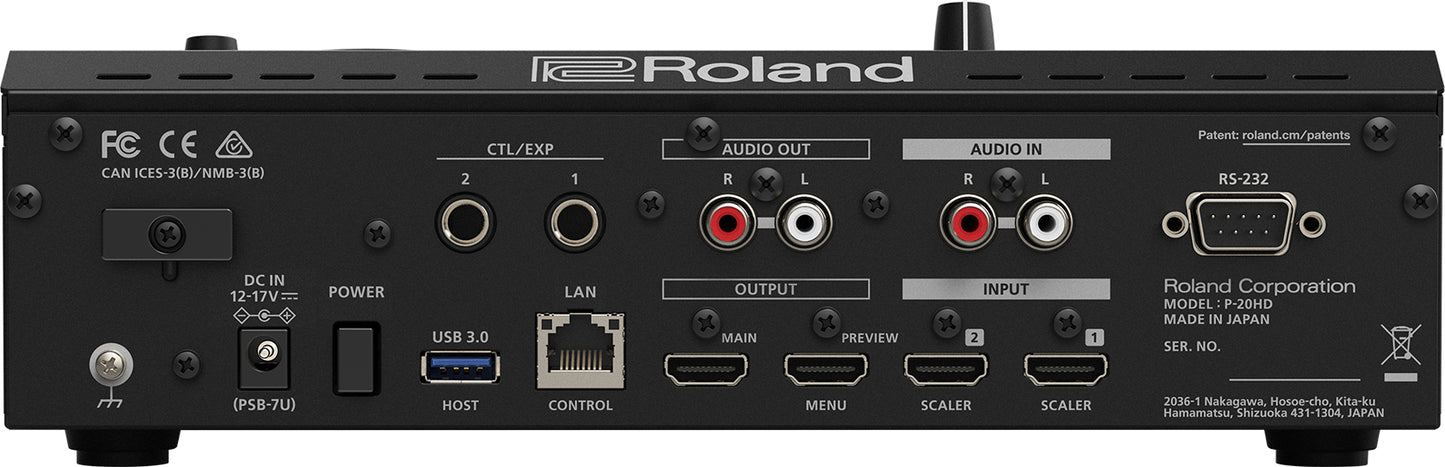

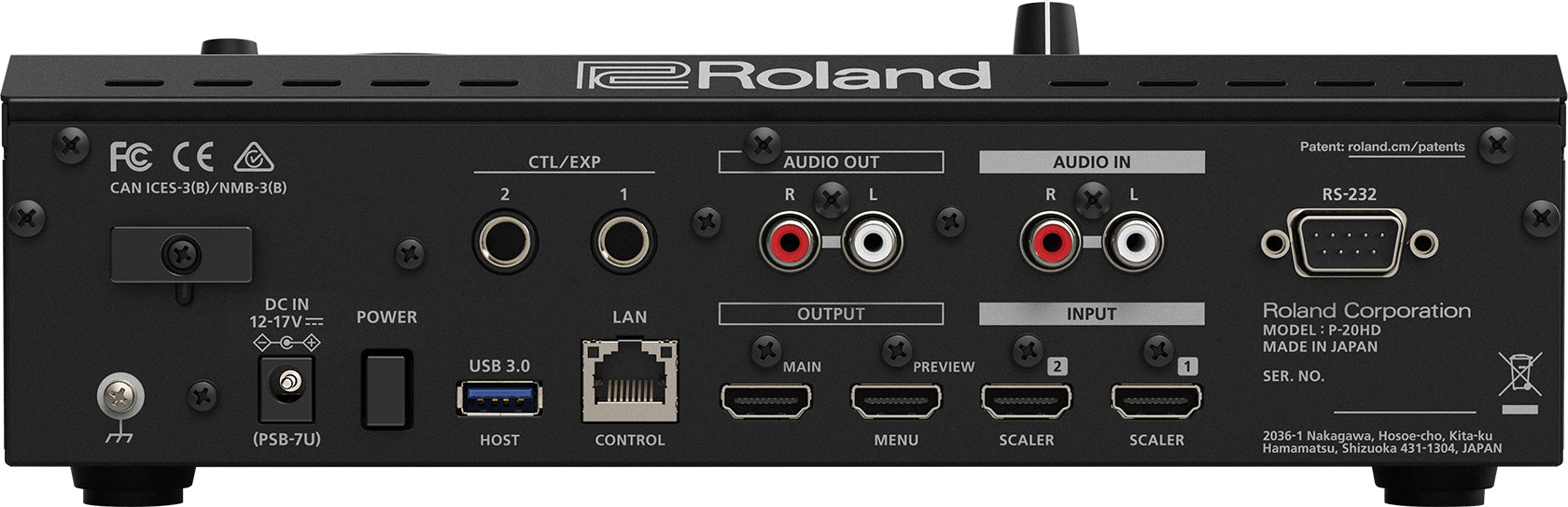

  • Roland P-20HD Back

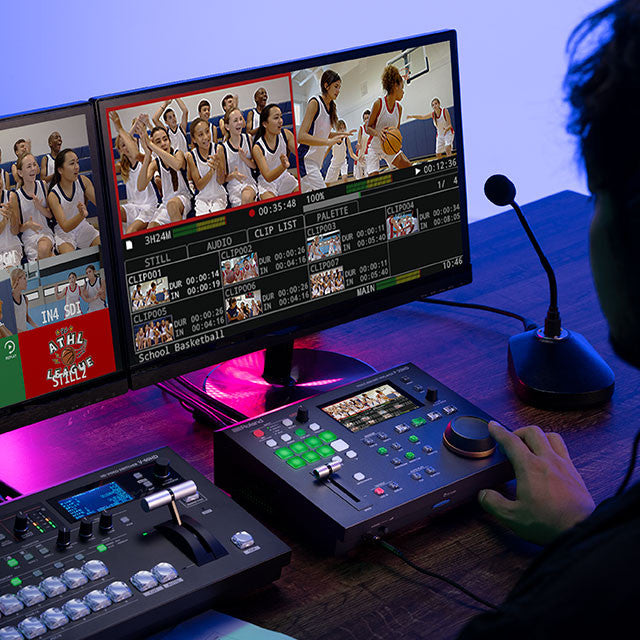

  • Roland P-20HD lifestyle 1

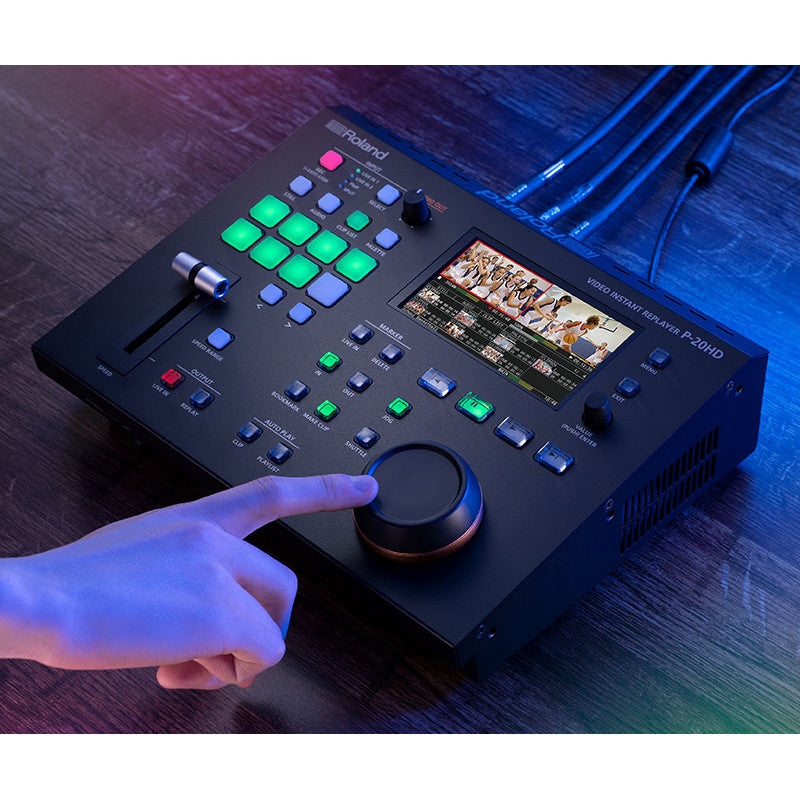

  • Roland P-20HD lifestyle 2

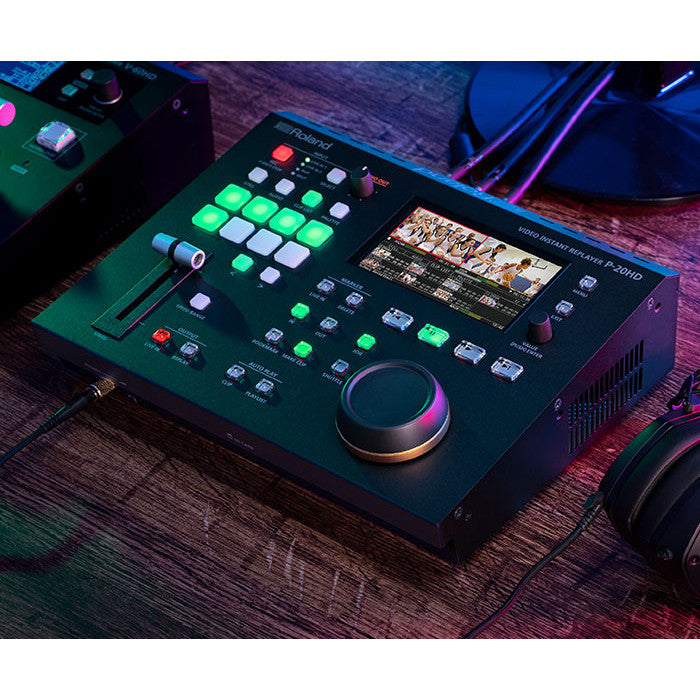

  • Roland P-20HD lifestyle 3

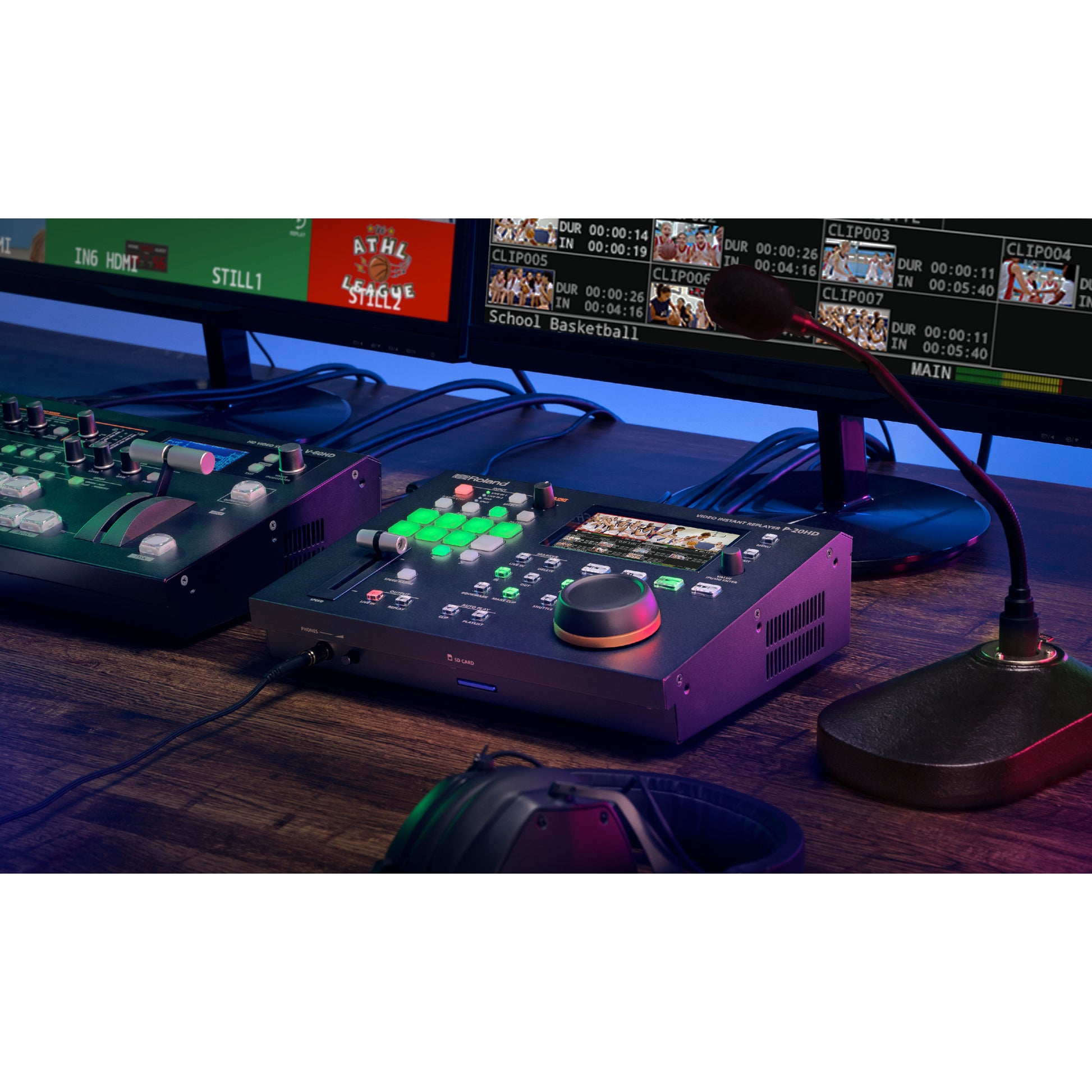

  • Roland P-20HD lifestyle 4
1 8

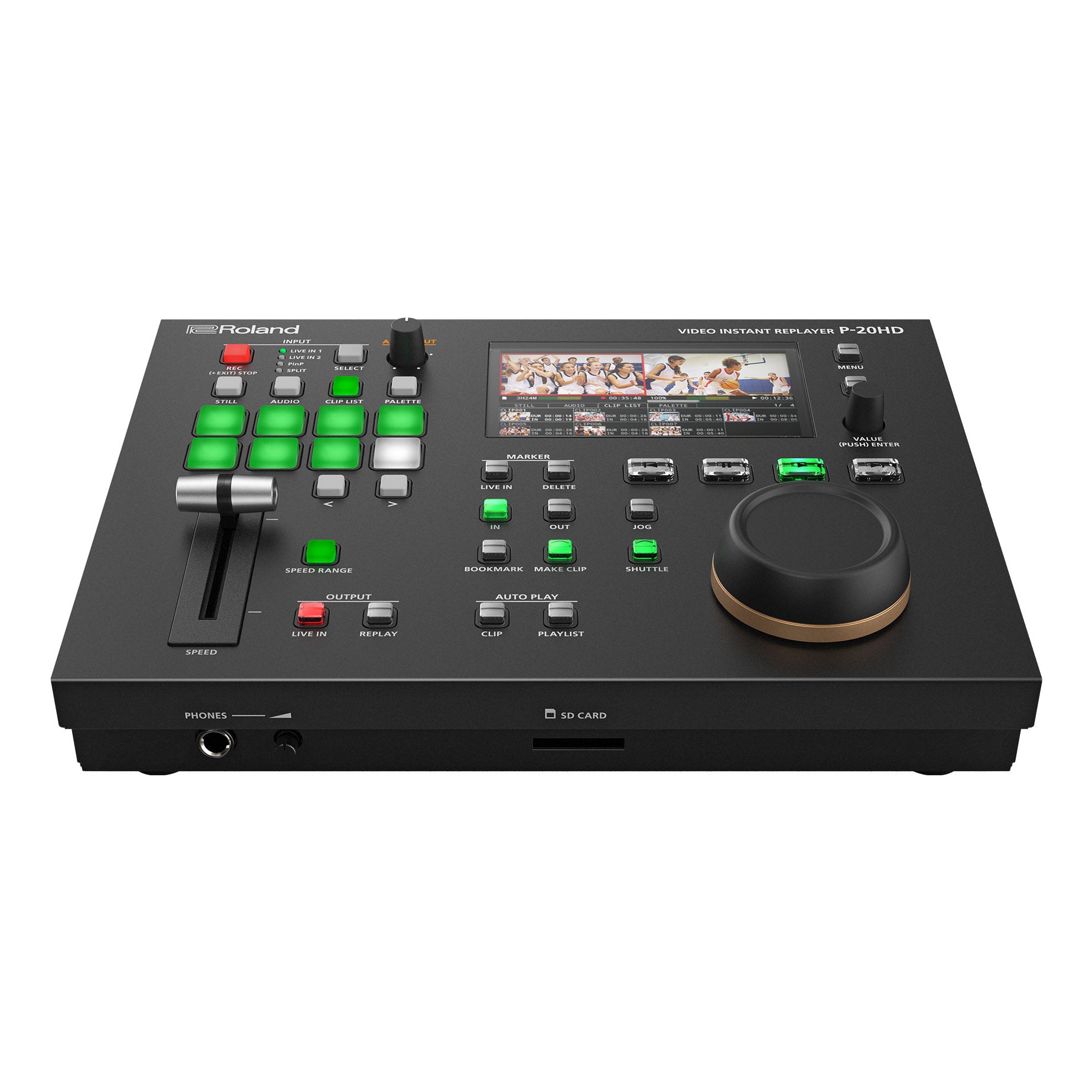

Roland P-20HD Video Instant Replayer

Roland P-20HD Video Instant Replayer

SoundPro Item: 115178 | Part Number: P-20HD

$1,699.99
$1,699.99 $1,699.99
Your Price Sold out
MSRP: $1,699.99 | MAP: $1,699.99

Usually ships in 5-7 business days

  • Slow-motion instant replay and variable speed playback
  • Intuitive controls for single-operator sports production
  • Simultaneous recording and playback
  • Clip playlist builder for creating highlight reels
  • Integrated color LCD for preview monitoring
  • Capture long events to low cost and widely available SD cards
  • Compact, portable, and reliable hardware design
  • Ideal for school sports, esports, and sports training
Log in or register for YOUR best price

Until now, creating slow-motion instant replays in live sports productions has required an arsenal of complicated and expensive gear—and the knowledge to run it all. Roland’s P-20HD changes all that, providing an affordable and easy-to-use solution that lets you bring pro replay capabilities to any production setup. Offering seamless integration with most Roland A/V switchers and HDMI camcorders and cameras, the P-20HD transforms everyday sports video productions into edge-of-seat fan experiences.

With the P-20HD, adding the magic of instant replay to your workflow has never been more simple and affordable. Using intuitive controls and the integrated color LCD, you can easily cue up replays of important action to let fans relive the moment, either on your streaming feed or live event screens—or both at once.

The P-20HD records directly to high-capacity SD cards, which are widely available and easy to swap out. And as you cue up and replay clips, the game keeps recording in the background, with no gaps in the action. The P-20HD can be seamlessly inserted into a variety of workflows. Use it on its own, or upstream or downstream of any Roland video switcher. Connect two cameras and switch/composite between sources to capture them for replay. Both HDMI inputs feature built-in scalers, providing worry-free connectivity with nearly any video source.

View full details

Specifications

Dimensions
Dimensions (WxDxH)
10-7/16x8-9/16x3-7/16” (265x216x87mm)
Weight
Weight (excluding AC adaptor)
4 lbs 11 oz (2.1 kg)
Electrical
Output Impedance AUDIO OUT
1 k ohmPHONES: 10 ohms
Current Draw
3 A
Power Consumption
36 W
Audio
Audio Processing
Sample rate: 24 bits/48 kHz
Audio Formats
Linear PCM, 24 bits/48 kHz, 2ch
Input Impedance
AUDIO IN: 15 k ohms
Output Level AUDIO OUT
-10 dBu (Maximum: +8 dBu)PHONES: 92 mW + 92 mW (32 ohms)
Audio Effects
Delay, High pass filter, Compressor, Noise gate, Equalizer, Limiter, Test tone output
Audio Player
File format: WAV (Linear PCM, 48kHz/48kHz, 16bit, stereo (* It can be stored up to 16 files in each Projects.)
Connectivity
Input Connectors
INPUT 1--2: HDMI type A x 2 (* Multi-format Supported)
Output Connectors MAIN
HDMI type A (*
Output Formats MAIN
720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50
Input Connectors INPUT 1--2
HDMI Type A x 2AUDIO IN: RCA phono type
Output Connectors MAIN OUT
HDMI Type APREVIEW OUT: HDMI Type AAUDIO OUT: RCA phono typePHONES: Stereo 1/4-inch phone type
Input Level
AUDIO IN: -10 dBu (Maximum: +8 dBu)
Connectors USB HOST Port
USB A type (For USB flash drive, Wacom tablet
USB keyboard)LAN Port
RJ-45, 1000BASE-T (For remote control
FTP)RS-232 Connector
DB-9 type (Male, for remote control, switcher control)CTL/EXP 1, 2: 1/4-inch TRS phone typeDC IN
Construction
TFT Color LCD
480 x 272 dots
Environmental
Operation Temperature
+32 to +104 degrees Fahrenheit (+0 to +40 degrees Celsius)
General
Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
Multi-format Supported)PREVEW
HDMI type A
VIDEO
Input Formats 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz), WXGA (1280 x 800/60Hz), FWXGA (1366 x 768/60Hz), SXGA (1280 x 1024/60Hz), SXGA+ (1400 x 1050/60Hz), UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)* The refresh rate is the maximum value of each resolution.* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).* 1920 x 1200/60 Hz: Reduced blanking
Hz).PREVIEW
1080/59.94p, 1080/50p* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50
Hz).Still Image
Bitmap File (.bmp) 1920 x 1080 pixels, 24-bit color, uncompressed.PNG File (.png) 1920 x 1080 pixels (480 x 270 pixels for title image), 24-bit color, 8-bits alpha channel.* It can be stored up to 16 files in each Projects.* It can be stored one title image each for LIVE IN and REPLAY bus.
Recording Mode Instant Replay Modefile Format
MPEG2-TSCODEC: H.264 High@L.4.1 10Mbps 8bit 4:2:0AAC LC 128kbps, 48kHz, 16bit stereorecording mode: resolution priority, framerate priority* It can be selected at project settings.Recording media: SD/SDHC/SDXC cardVideo Effects Composition: PinP, SPLITTransition: CUT, MIX, WIPEOther: Flip horizontal, Still Image Playback, Test pattern output, Annotation
OTHERS
Other Functions Panel lock functionEDID EmulatorExport recording files (mp4)Export and Import project archive files
Power Supply
AC adaptor
Notes
* 0 dBu = 0.775 Vrms
Indicators
Display
4.3 inches
