• Roland RUBIX22 USB Audio Interface
1 1

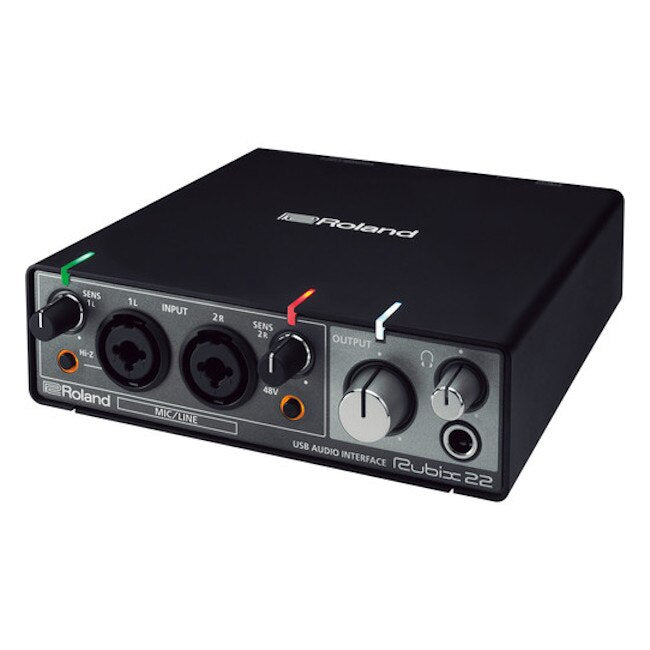

Roland RUBIX22 USB Audio Interface

Roland RUBIX22 USB Audio Interface

SoundPro Item: 51291 | Part Number: RUBIX22

$209.99
$209.99 $209.99
Your Price Sold out
MSRP: $209.99 | MAP: $209.99

Usually ships in 5-7 business days

  • 2-in/2-out USB audio interface
  • 2 low-noise mic preamps with XLR combo jacks
  • Hi-Z input for guitar and other high impedance sources
  • MIDI In/Out ports
  • Extensively shielded, low-noise design
  • Sturdy and compact metal construction
  • Big, easy-to-read indicators show vital information
  • Low latency, class compliant drivers
  • Ground lifts for quiet operation in a variety of venues
  • Includes Ableton Live Lite
Log in or register for YOUR best price

Rubix22 offers a perfect balance of high-fidelity sound, solid build quality, compact size, affordable price, and crucial features for today's musicians and producers. With support for high-resolution audio up to 24-bit/192kHz, Rubix22 sounds clear and defined and is carefully engineered to have extremely low noise from input to output. Its near universal USB support means it works seamlessly with Mac and PC computers, and even supports iPads, for the ultimate in portable music production and performance.

View full details

Specifications

Dimensions
Dimensions (WxDxH)
5-3/4 x 6-1/2 x 1-13/16 inches (145x165x46 mm)
Weight
Weight (main Unit only)
2 lbs 4 oz (1 kg)
Electrical
Input Impedance INPUT (1L, 2R) Connectors (XLR type)
4 k ohms or greater (balanced)INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater (*3 When the Hi-Z is turned on)
Output Impedance OUTPUT (1L, 2R) Jacks
2 k ohms (balanced)PHONES jack: 47 ohms
Current Draw
500 mA
Audio
Number of Audio Record/Playback Channels Record
2 channelsPlayback: 2 channels
Dynamic Range AD Block INPUT (1L, 2R) Jacks
104 dB typ. (SENS 1L, SENS 2R knobs: min.)DA block OUTPUT (1L, 2R) jacks: 109 dB typ.
Connectivity
Connectors INPUT (1L, 2R) Connectors
XLR type (balanced, phantom power: +48 V, 6 mA Max *1)INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)PHONES jack: Stereo 1/4-inch phone typeOUTPUT (1L, 2R) jacks: 1/4-inch TRS phone type (impedance balanced)MIDI (IN, OUT) connectorsUSB port: USB Type BDC 5V port: USB Type micro B*1 Current value per channel.*2 INPUT 1L supports high impedance
Nominal Output Level OUTPUT (1L, 2R) Jacks
-6 dBu (impedance balanced)
Maximum Output Level OUTPUT (1L, 2R) Jacks
+8 dBu (impedance balanced)
PHONES Maximum Output Power
20 mW + 20 mW (L + R, 47 ohms load)
General
Signal Processing PC Interface
24 bitsAD/DA conversion: 24 bits
Sampling Frequency
AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
System
Interface Hi-Speed USBMIDI IN, OUT, Controllers SENS 1L, 2R knobsHi-Z switch48V switchOUTPUT knobPHONES knobPOWER SOURCE switchDIRECT MONITOR switchGROUND LIFT switch, Indicator Level indicators (1L, 2R)POWER indicatorHi-Z indicator48V indicator
Characteristics
Nominal Input Level INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBuINPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu, Maximum Input Level INPUT (1L, 2R) connectors (XLR type): +2 dBuINPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu
Headroom
14 dB
Residual Noise Level
INPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)
Power Supply
Supplied from the computer via USB, DC 5V
Other
Operating System Microsoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10Apple Mac OS X 10.10 or laterApple iOS 9 or later* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the Rubix, Roland cannot guarantee that a given computer can be used satisfactorily with the Rubix based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.
