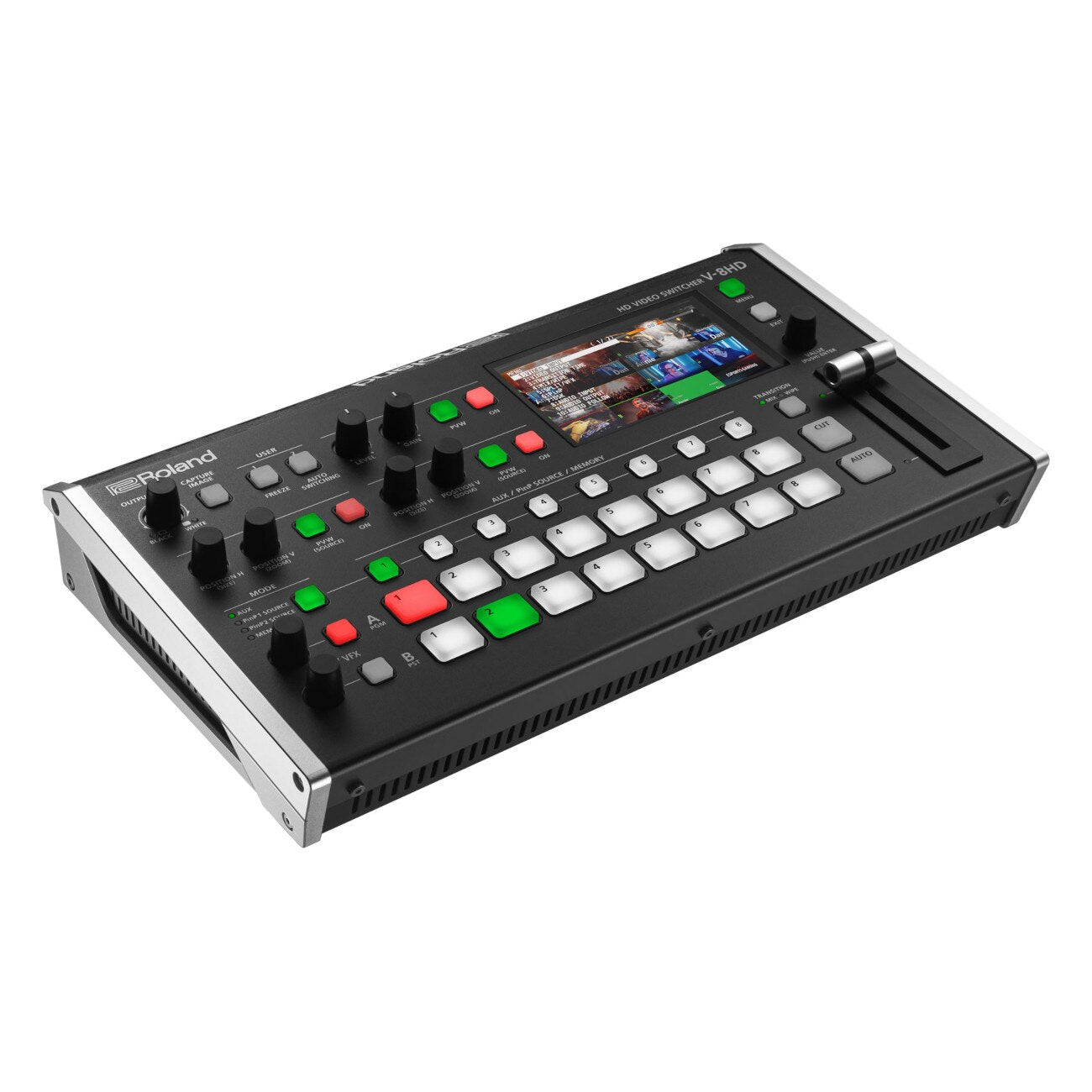

Dimensions
Dimensions (W X D X H)
12-1/2 x 7-5/8 x 2-13/16 inches(317 x 193 x 70 mm), Weight 4 lbs 7 oz (2 kg) * Excluding AC adaptor.
Electrical
Input Impedance AUDIO IN
38 k ohms
Output Impedance AUDIO OUT
1 k ohmPHONES: 10 ohms
Current Draw
3.3 A
Power Consumption
39.6 W
Audio
Audio Processing
Sampling rate: 24 bits/48 kHz
Audio Formats
Linear PCM, 24 bits/48 kHz, 2ch
Audio Effects
Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output
Input Level AUDIO IN
-10 dBu (Maximum: +8 dBu)
Output Level AUDIO OUT
-10 dBu (Maximum: +8 dBu)PHONES: 92 mW + 92 mW (32 ohms)
Connectivity
Output Connectors OUTPUT 1--3
HDMI type A x 3* HDCP Supported
Supported Video Output Formats OUTPUT 1-2
720/59.94p *1, *4720/60p *1, *5720/50p *1, *61080/59.94i *2, *41080/60i *2, *51080/50i *2, *61080/59.94p *3, *41080/60p *3, *51080/50p *3, *6*1 SYSTEM FORMAT = 720p*2 SYSTEM FORMAT = 1080i*3 SYSTEM FORMAT = 1080p*4 FRAME RATE = 59.94 Hz*5 FRAME RATE = 60 Hz*6 FRAME RATE = 50 HzOUTPUT 3: 1080/59.94p *11080/60p *21080/50p *3*1 FRAME RATE = 59.94 Hz*2 FRAME RATE = 60 Hz*3 FRAME RATE = 50 Hz
Input Connectors INPUT 1--8
HDMI Type A x 8AUDIO IN: RCA phono type
Other Connectors USB MEMORY
USB A type (for USB flash drive)REMOTE:USB B Type (for remote control from iPad)CTL/EXP:1/4-inch TRS phone type
Connectors
Other Functions Preset Memory (24 scenes) Panel lock functionEDID EmulatorAuto SwitchingAuto Input Detect
Construction
TFT Color LCD
480 x 272 dots
General
Video Processing
4:2:2 (Y/Pb/Pr), 8-bit Input Connectors INPUT 1--6: HDMI type A x 6* HDCP SupportedINPUT 7--8: HDMI type A x 2 * HDCP Supported* Multi-format Supported
Video
Supported Video Input Formats INPUT 1-6 720/59.94p, 720/60p *1, *3720/50p *1, *41080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *31080/50i, 1080/50p, 1080/25p *2, *41080/23.98p, 1080/24p *2* The input interlaced video signal is converted to progressive video signal by internal processing.*1 SYSTEM FORMAT = 720p*2 SYSTEM FORMAT = 1080i or 1080p*3 FRAME RATE = 59.94 Hz or 60 Hz*4 FRAME RATE = 50 HzINPUT 7-8 480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *21080/23.98p, 1080/24pVGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)* The refresh rate is the maximum value of each resolution.* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.* 1920 x 1200/60 Hz: Reduced blanking* The input interlaced video signal is converted to progressive video signal by internalprocessing.*1 FRAME RATE = 59.94 Hz or 60 Hz*2 FRAME RATE = 50 HzStill ImageBitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit colorJPEG File (.jpg) Maximum 1920 x 1080 pixels, 24-bit color* It can be stored up to 8 files to the internal memory.* It can be exported to the USB memory.* PNG alpha channel not supported.
Video Effects Transition
CUT, MIX (DISSOLVE/FAM/NAM)
WIPE (8 types)Composition
PinP x 2 (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key
Chroma Key)Others
Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio
Power Supply
AC Adaptor
Other
Operation Temperature +0 to +40 degrees Celsius+32 to +104 degrees Fahrenheit
Indicators
Display
4.3 inches
