• Rolls RM67 Single Rack Mic Source Mixer
1 1

Rolls RM67 Single Rack Mic Source Mixer

Rolls RM67 Single Rack Mic Source Mixer

SoundPro Item: 47122 | Part Number: RM67

$299.00
$369.00 $299.00
Your Price Sold out
MSRP: $369.00 | MAP: $299.00

Usually ships in 5-7 business days

  • RM67 Mic/Source Mixer
  • Three XLR mic inputs with switchable phantom power and input padding
  • Clip LEDs for each Mic input
  • Mute jack, contact closure to ground main output mute
  • Master Level control
  • Remote Volume jack (connects to an optional 100K ohm potentiometer)
  • Stereo Record Out
  • Priority ducking/talk-over for microphone paging, and jukebox
  • Mic Insert jack for adding signal processing to the Mic Inputs
  • Four stereo RCA line/consumer level inputs
  • Master Bass and Treble controls (sources only)
Log in or register for YOUR best price

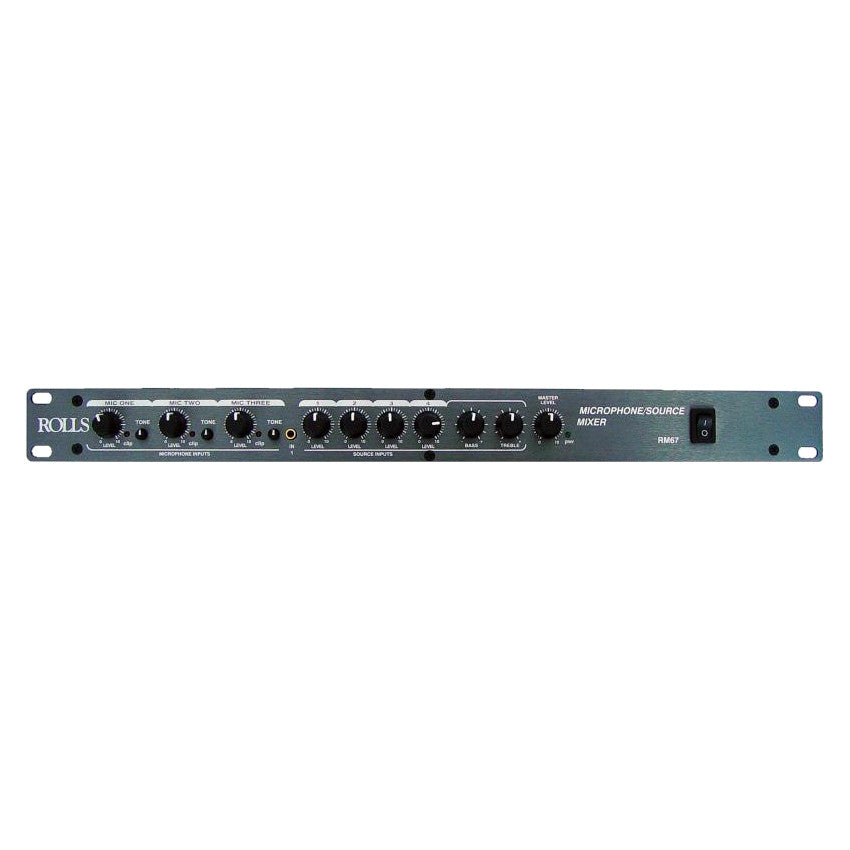

The RM67 is a single rack space mixer designed for the install/contractor market. The unit mixes three balanced microphones with four stereo sources to mono or stereo balanced outputs. The XLR Microphone Inputs have Mic/Line level switches, a send/return Insert jack, and individually switchable +12 VDC phantom power.

Priority talkover, with variable Duck Sensitivity is available on one microphone for paging, and on one Source input for use on a jukebox. telephone system, etc. Each Microphone input has a level and tone control, and each Source input has a level control. Bass and Treble controls have been provided for all the sources, and a Master Output Level control adjusts the level of all mixed signals. Source One has an added front-panel 3.5mm input. A pre-Master RCA output has been provided for recording, and a Remote Volume output jack is provided for connection to a 100K ohm linear taper potentiometer and used as an external master level control.

View full details

Specifications

Dimensions
Dimensions
19 x 1.75 x 6 inches (48.3 x 4.5 x 15 cm)
Audio
Phantom Power
+12 VDC
Output Impedance
51 Ohms
Max Gain (Mic)
60 dB Source: 26 dB
THD
<.025%
Connectivity
Max Input Level
Mic -14 dBV +20 dB Line level
Output Level
+17 dBV max
Construction
Mic Insert
22K Ohms 1/4" TS unbal.
Shipping
Weight
5 lbs (2.3 kg)
General
Mic
600 Ohms XLR balanced
Line
22K Ohms
Source
22K Ohms gold plated RCA
3
XLR
6
Stereo RCA
1
1/4" TS, 1: 3.5mm
Tone Controls
+/-12 dB 100 Hz Bass +/-12 dB 11kHz Treble
Floor
- 80 dB
S/N Ratio
96 dB
