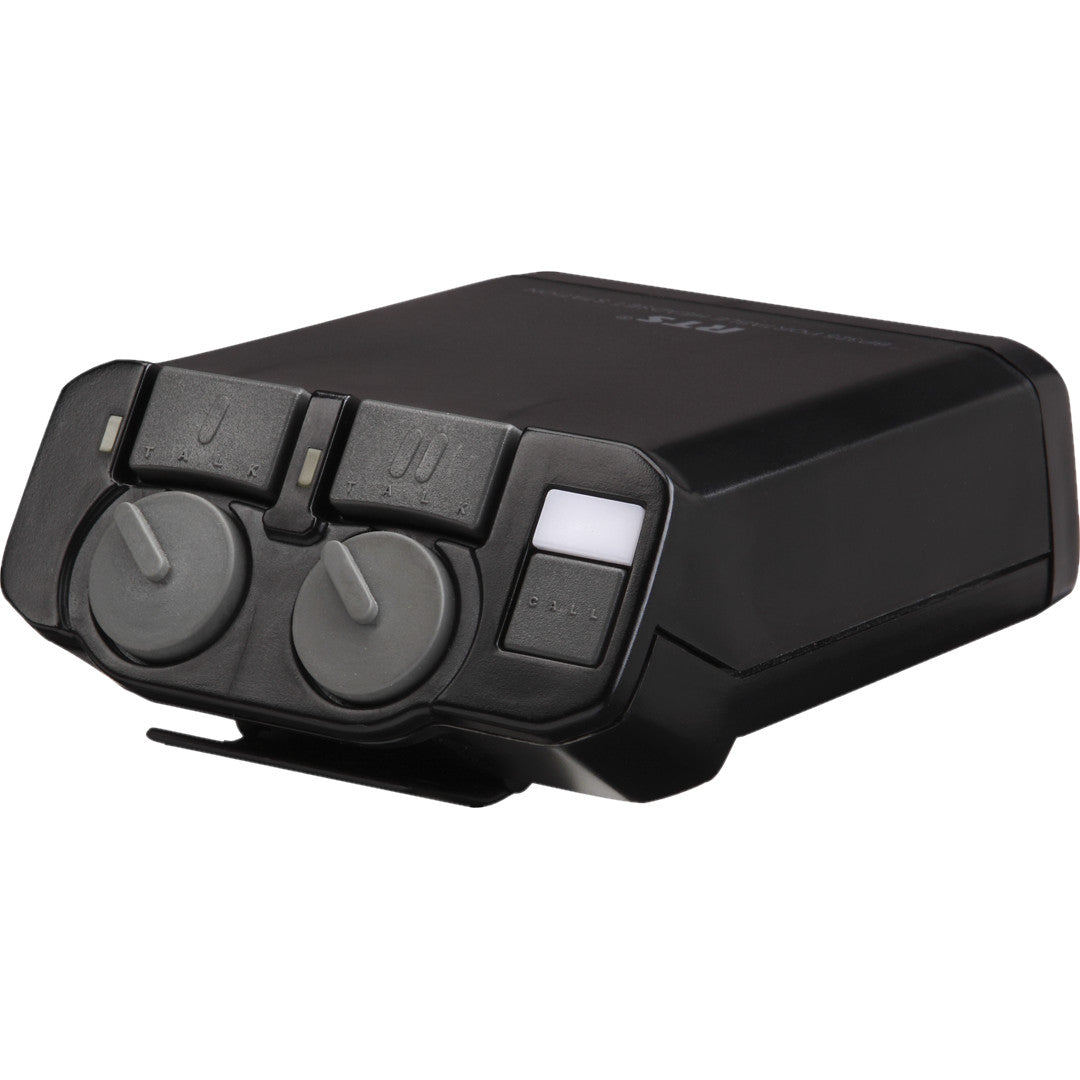

• RTS BP-325 Dual-Channel Binaural Programmable Beltpack
1 1

RTS BP-325 2-Channel Binaural Programmable Beltpack | Color: Gray

RTS BP-325 2-Channel Binaural Programmable Beltpack | Color: Gray

SoundPro Item: 42101 | Part Number: F.01U.118.527

$915.00
$915.00 $915.00
Your Price Sold out
MSRP: $915.00 | MAP: $915.00

Usually ships in 5-7 business days

  • Call Function
  • Headset
  • Microphone Kill Detect
  • Powered Externally
Log in or register for YOUR best price

The BP-325 is a portable beltpack for use with RTS Two-Wire intercom systems. The BP-325 is a binaural (stereo) programmable two-channel beltpack with program-input capability. The BP-325 is for use with a dynamic microphone only.

View full details

Specifications

Electrical
Power Requirements
+18 to +33 VDC, 30 VDC nominal (standard RTS line), 45 to 85mA
Impedance Across Intercom Line
10kΩ typical
Maximum Voltage Gain
30 dB
Output Voltage Level
8 volt peak-to-peak
Audio
Frequency Response
100 Hz to 8 kHz, +/-3 dB
Headphone Impedance
50 to 600 Ω
Output Power
150 mW/150 Ω
Input Impedance
>1k Ω
Maximum Input Level
+20 dBu
Connectivity
Nominal Input Level
-10 to +8 dBu
Monoaural Dynamic-mic Headset Connector
XLR-4-31 receptacle (J13), Pin 1 - Microphone low, Pin 2 - Microphone high, Pin 3 - Common, Pin 4 - Headphone high
Stereo Dynamic-mic Headset Connector
XLR-5-31 receptacle (J14), Pin 1 - Microphone low, Pin 2 - Microphone high, Pin 3 - Common, Pin 4 - Headphone left high, Pin 5 - Headphone right high
Carbon-mic Headset Connector (J1)
¼-inch, 3-conductor Phone Jack, Used for Mic Switch
Intercom Line Input Connector (J11)
XLR-3-31 female receptacle, Used for Program Input, Used for Remote Mic Switch and/or External Power
General
Noise Contribution to 200Ω Intercom Line
-75 dBu
Limiter Range
30 dB
