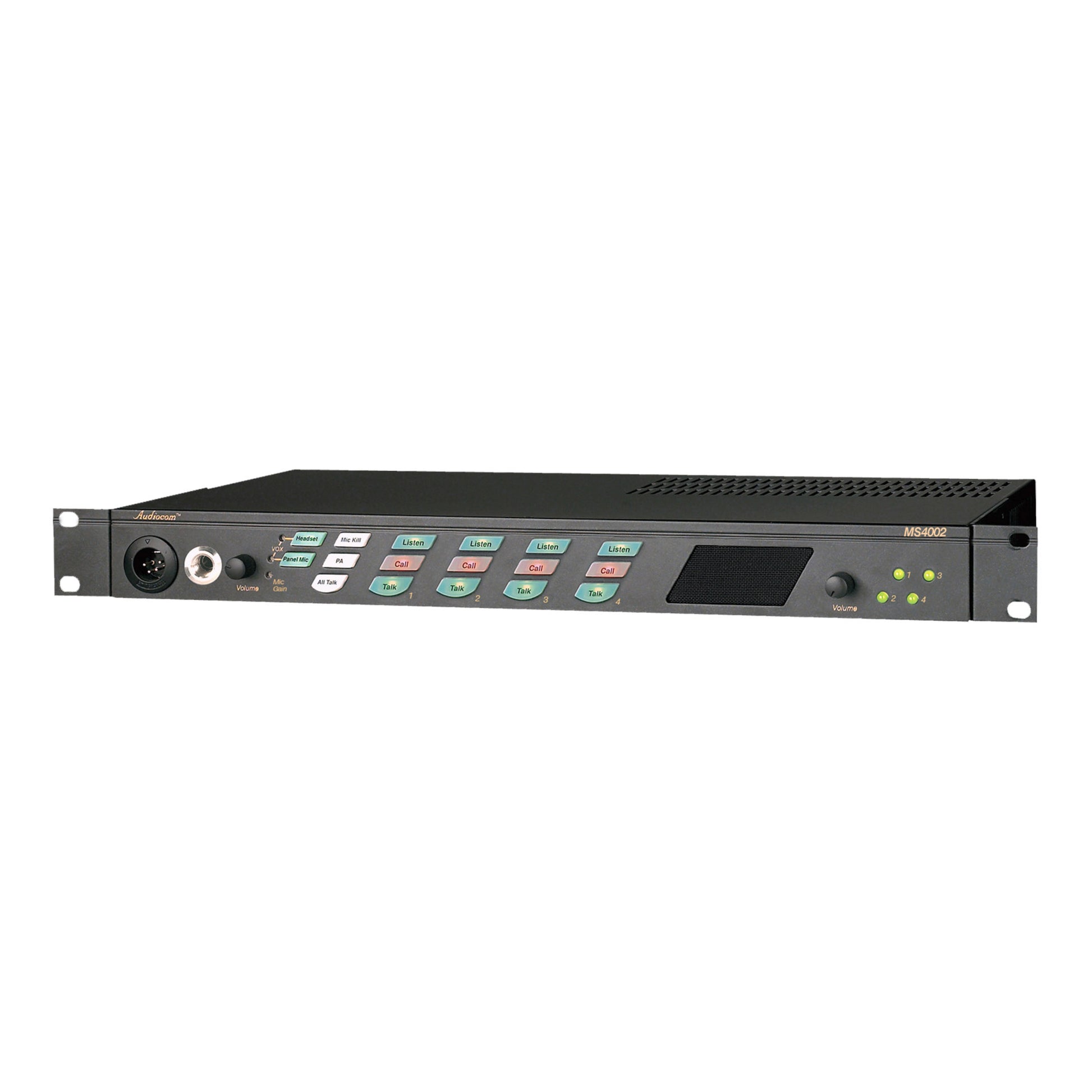

RTS MS-4002 4-Channel User/Main Station

RTS MS-4002 4-Channel User/Main Station

SoundPro Item: 41670 | Part Number: F.01U.391.552

$3,466.00
$3,466.00 $3,466.00
Your Price Sold out
MSRP: $3,466.00 | MAP: $3,466.00

Usually ships in 5-7 business days

  • Auto-Sensing Headset Connector
  • Speaker Station or Headset Station
  • Voice Activated Microphone (VOX)
  • Public Address (PA) Output, with PA key
  • Back-lit Keys
  • Incoming Call Indications
  • Mic Kill Key
  • Program Input for Each Channel
  • Listening with External Powered Speakers
  • Expandable
  • Instantaneous Auto-Reset
  • Clear-Com Compatible
Log in or register for YOUR best price

The RTS MS-4002 is a complete four-channel, balanced audio master station and 4 amp system power supply in a single unit. You simply plug it into any AC power outlet from 100 to 240 volts, add a microphone or headset, connect intercom stations to the back panel, and you are ready to communicate. The MS-4002 is now equipped with an advanced programming mode on the front panel, eliminating the need for internal DIP switches. It also has a feature that automatically senses the type of headset attached to the unit, either dynamic or electret. The MS-4002 fits in a standard 19" equipment rack and is 1 rack unit high. The MS-4002 is Clear-Com compatible, with the ability to run in unbalanced mode.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
1.75x19x10.31” (44.5x483x261.9mm)
Electrical
Power Requirements
Channel Power 24VDC nominal (18 to 30VDC), 65 to 150mAMS-4002 is capable of supplying 3.6A overall
Voltage Gain
25 ±3dB
Bridging Impedance
>10kΩ
Audio
Microphone
50 to 200Ω, dynamic (balanced or unbalanced)
Input Impedance
75k
Sidetone
-40dB, 35dB adjustable range
Connectivity
AC Input
100-240VAC, 50/60Hz
Connector Type
XLR-4M
Input Level
100mV maximum
Output Level (to Intercom channel)
1.0Vrms nominal 2.3Vrms max.
Output Level
1Vrms ±10%
Shipping
Weight
approximately 4.5lb (2kg)
General
Environmental Requirements Storage
-20°C to 80°C; 0% to 95% humidity, non-condensingOperating: -0°C to 50°C; 0% to 95% humidity, non-condensing
Headphones
150 to 600Ω, monaural
Pin 1
Microphone low
Pin 2
Microphone high
Pin 3
Headphone high
Pin 4
Headphone low
Microphone Type
Electret condenser
Nominal Level
-42dBu
Maximum Level
-25dBu
Common Mode Rejection
>50 dB
Pin 5
NC
Pin 6
Program 1 input high
Pin 7
Program 2 input high
Pin 8
NC
Pin 9
NC
Call Signaling Send
20kHz ±100Hz, 0.5Vrms ±10%Receive: 20kHz ±800Hz, 100mVrmsMic-Kill
Frequency Send
24kHz ±300Hz, 0.5Vrms ±10%Detect: 24kHz ±800Hz, 100mVrmsNoise
Contribution
< -70dB
Common Mode Rejection Ratio
>50dBConnector
Type
One XLR-3M and XLR-3F pair, wired in parallel, for each channel (permits “loop-thru” connection).
Power
Power
Phantom (+5VDC)
