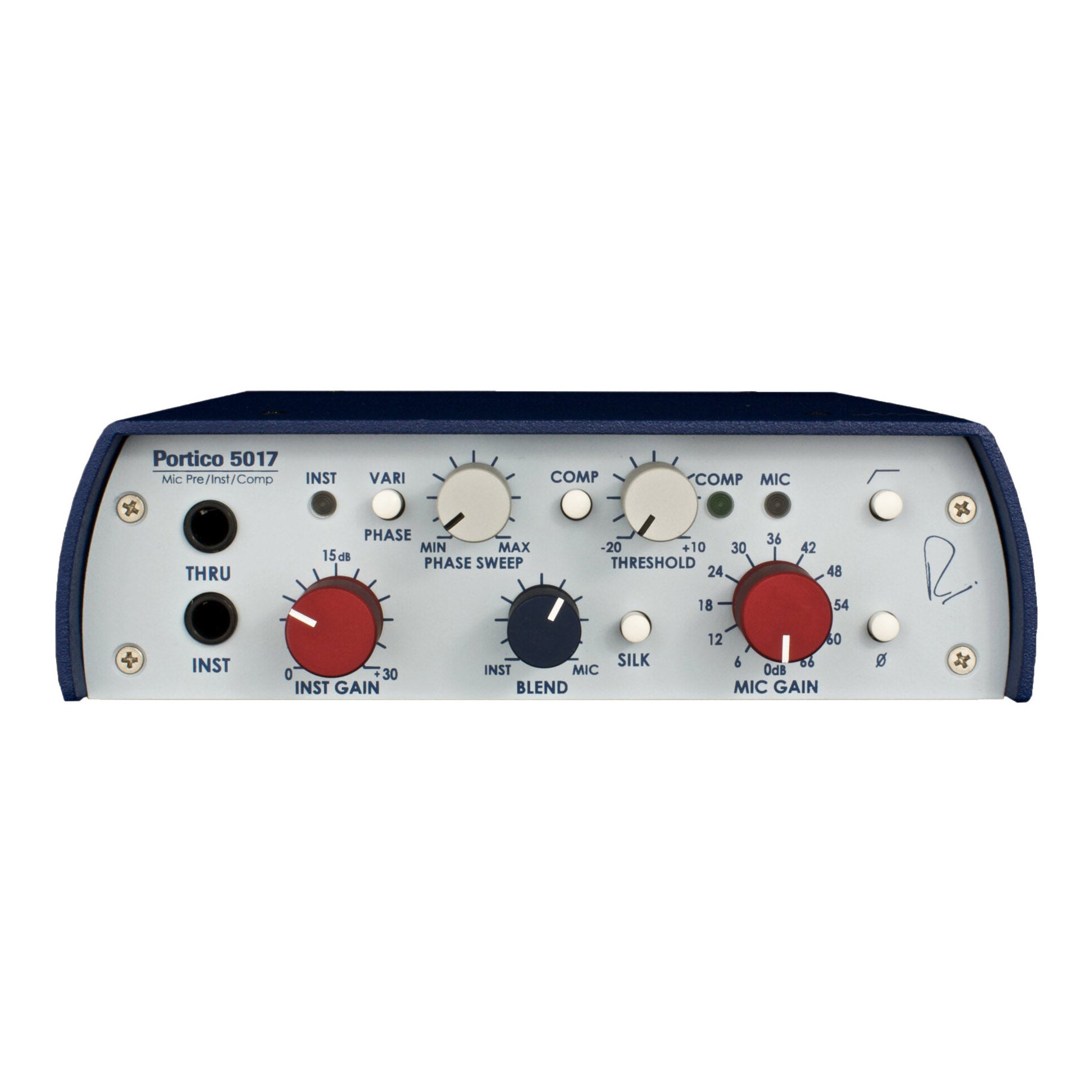

• Rupert Neve 5017 Mobile Preamp / DI / Compressor

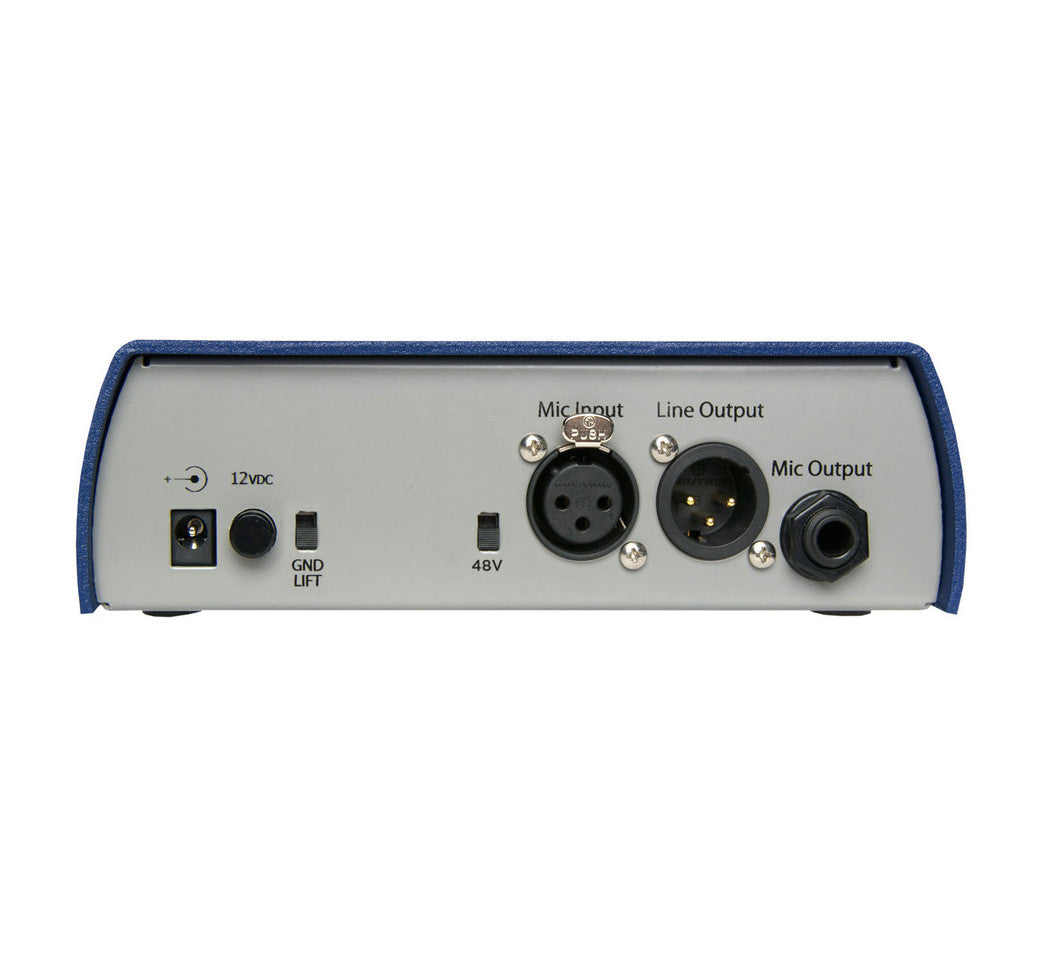

  • Rupert Neve 5017 Mobile Preamp / DI / Compressor back
1 2

Rupert Neve 5017 Mobile Preamp/DI/Compressor

Rupert Neve 5017 Mobile Preamp/DI/Compressor

SoundPro Item: 85435 | Part Number: 5017

$1,499.00
$1,499.00 $1,499.00
Your Price Sold out
MSRP: $1,499.00 | MAP: $1,499.00

Usually ships in 5-7 business days

  • With two transformer coupled outputs, the 5017 has separate line outputs for the DI/Blend and Mic signals when the blend control is set to fully DI. The mic output is always independent.
  • Silk circuit enhances the source’s harmonic content in a manner very reminiscent of many of Rupert’s class-A vintage designs.
  • 12-way precision rotary switch covering Line (0) and Mic from 0 to 66 dB in 6 dB steps
  • Continuous gain control from 0dB to 30dB
  • Thru & Inst 1/4" Phone Jacks - Balanced or unbalanced Hi-Z input for instruments, with a THRU output to send signal to an amplifier
  • High pass filter
  • Push button inverts the polarity of the mic input signal path. The symbol “Ø” is often used to denote opposite polarity
  • Vari-phase control
  • Based around a new LDR (light dependent resister) design, the 5017’s opto-coupler compressor has been simplified to a single threshold control with auto make up gain. By default, the compressor is set to a fixed 2:1 ratio with fixed attack and release. To set the compressor, simply dial the threshold control down until the desired amount of compression is achieved. An LED light indicates when the compressor is active
  • Indicators denote signal presence and clipping on both DI and mic signals, as well as compressor activation
  • Two internal jumpers in the 5017 can be set to change the compressor from the mic channel to the DI / blend channel, and to change the compressor time constant from standard to fast
Log in or register for YOUR best price

The Portico 5017 from Rupert Neve is an innovative and powerful tool for recording or live performance. It is comprised of a rugged, portable chassis with world-class preamp, compressor and DI circuits as well as two channel operation, Vari-phase, Silk and DI/mic blending capabilities.

View full details

Specifications

Dimensions
Dimensions (DxWxH)
7.5x6.5x2"
Electrical
Power Requirements
12VDC is optimal voltage, but 9-15VDC is acceptable
@ 9VDC Current Is 1.3 a Typical
Power = 11.7W
@ 12VDC Current Is 1.0 a Typical
Power = 12.0 watts
@ 15VDC Current Is 800 Ma Typical
Power = 12.0 watts
Audio
Frequency Response, Main Output No Load
-0.2 dB @ 10 Hz; -3 dB @ 160 kHz
Phantom Power
+48 Volts DC +/- 1%
Connectivity
Noise (Measured at Main Output, Unweighted, 22 Hz - 22 kHz. Terminated 150 Ohm)
With gain at unity better than -100 dBu, With gain at 66 dB better than -62 dBu, Equivalent Input Noise better than -128 dBu
Max. Output Level
maximum output from 20 Hz to 40 kHz is +23 dBu
@ 1 Khz, +20 Dbu Output
Main Output: Better than 0.001%
@ 20 Hz, +20 Dbu Output
Main Output: Better than 0.002%
General
Noise Factor
1.5 dB
High Pass Filter
80 Hz, 12 dB/Octave Bessel
Silk Engaged
better than 0.2% Second harmonic
Threshold
continuously variable from -20 dBu to +10 dBu
Ratio
fixed at 2:1
Compressor
Attack and Release
