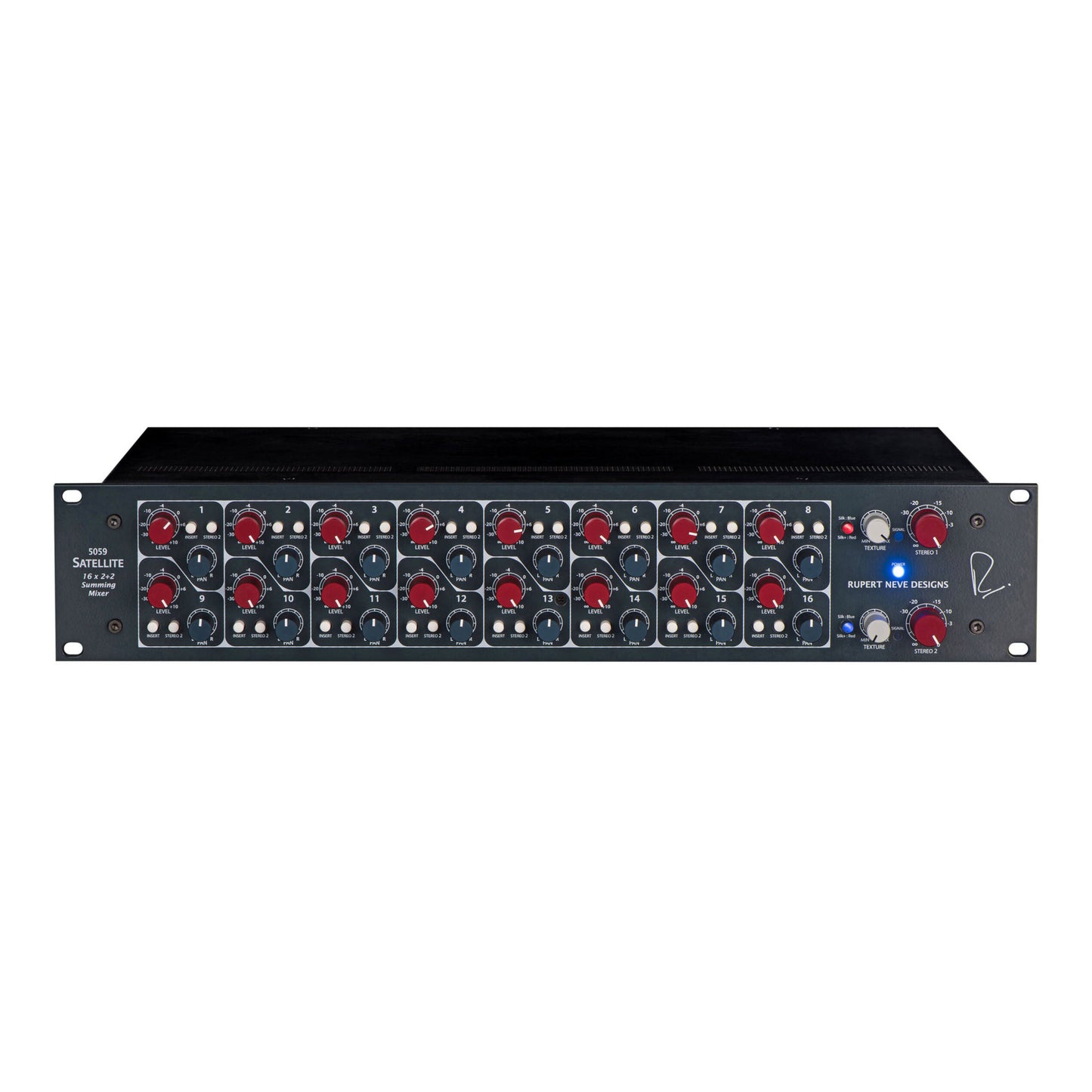

• Rupert Neve 5059 5059 Satellite 16 x 2+2 Summing Mixer

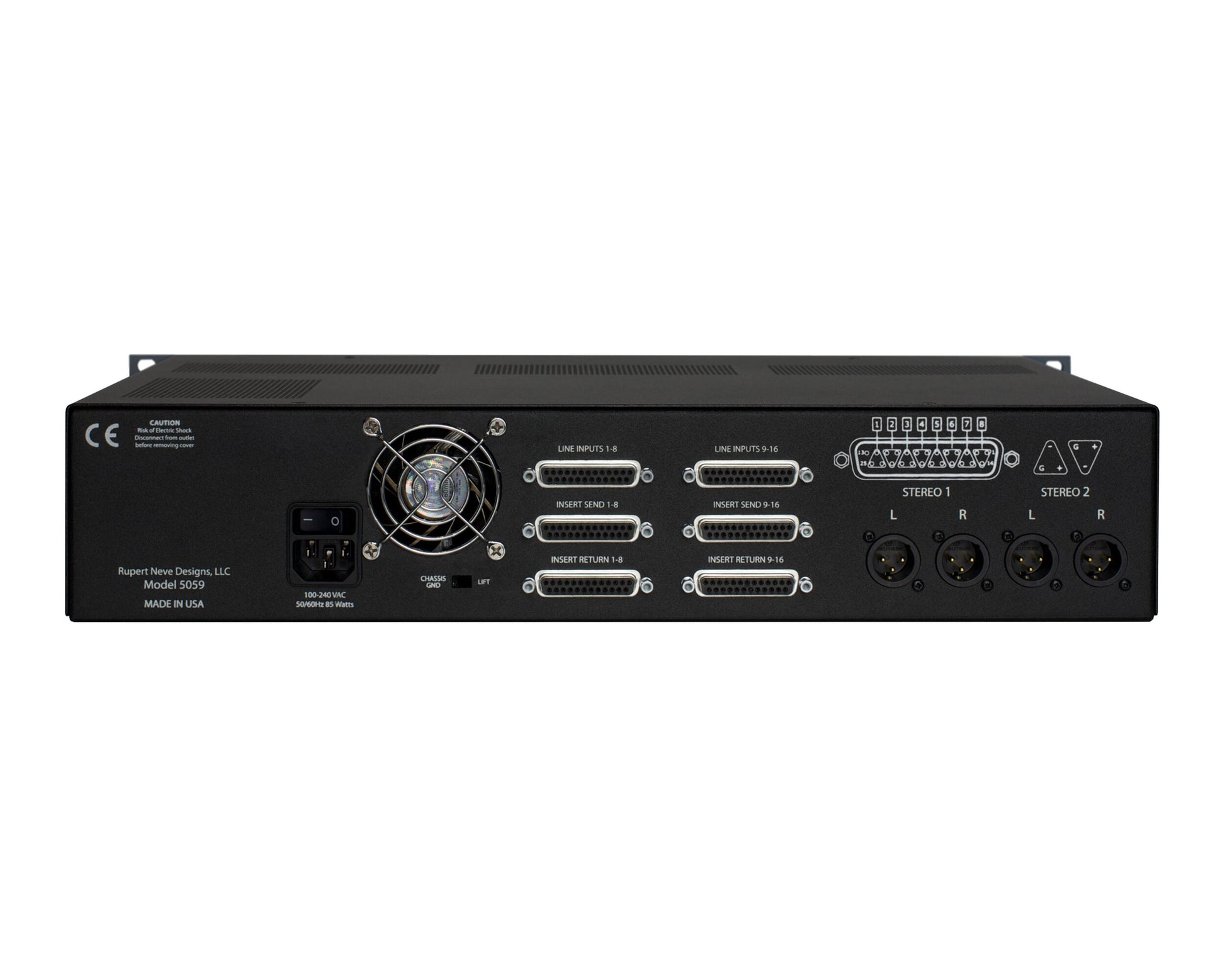

  • Rupert Neve 5059 5059 Satellite 16 x 2+2 Summing Mixer back
1 2

Rupert Neve 5059 5059 Satellite 16x2+2 Summing Mixer

Rupert Neve 5059 5059 Satellite 16x2+2 Summing Mixer

SoundPro Item: 111354 | Part Number: 5059-S

$3,999.00
$3,999.00 $3,999.00
Your Price Sold out
MSRP: $3,999.00 | MAP: $3,999.00

Usually ships in 5-7 business days

  • Silk / Texture
  • New Class-A Topologies
  • Custom Transformers
  • Stereo 2 Send
  • Channel Level
  • Channel Pan
  • Channel Insert
  • Level controls are provided for each of the stereo outputs -∞ to 0dB
Log in or register for YOUR best price

Rupert Neve's 5059 Satellite 16 x 2+2 Summing Mixer delivers the ultimate out-of-the-box sonics and control in a 2U, rack-mountable chassis.

Built around many of the topologies and custom transformers made famous with the 5088 mixer, the 5059 features 16 channels with individual level, pan, inserts, stereo-2 sends, and master texture controls, providing easy integration with outboard equipment, complete control for two separate stem mixes, and the ability to dial in analog mojo in two modes. With the same sonic heritage as mixers used to create countless hit records, the 5059 Satellite imbues your tracks with the legendary warmth and presence of a Rupert Neve design.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
3.5" x 19" x 8"
Electrical
THD, Silk Engaged
Blue Silk, Red Silk
Power Consumption
Fuses – not user accessible, internal on power supplies
Audio
Frequency Response
100K Ohm Load, +/- 0.1 dB from 20 Hz to 20 kHz, -3 dB @ 3.5 Hz / 185 kHz
Crosstalk
From Buss 1 to Buss 2
Connectivity
Buss Outputs
-106 dBV
+20 Dbu Output Un-weighted, 22 Hz - 22kHz
116 dB
+20 Dbu Output, IEC a Weighted
119 dB
+4 Dbu Output, IEC a Weighted
103dB
Output Level
Summing Busses to XLR outputs, Maximum Output Level, 20 Hz to 40 kHz: +26 dBu, Single Channel to Buss, Maximum Output Level, 20 Hz to 40 kHz: +24.5 dBu
1 Khz @ +20 Dbu Output
Better than 0.003%
20 Hz @ +20 Dbu Output
Better than 0.005%
Shipping
Weight
23 pounds
General
Noise
IEC-A-weighted, Un-weighted, 22 Hz - 22 kHz, Single Channel assigned @ +10 dB - 100 dBV
Single Channel Assigned @ -∞
-104 dBV
Single Channel Assigned @ Unity
103 dBV
Signal to Noise
+4 dBu output unweighted, 22 Hz - 22 kHz: 100 dB
Slew Rate
4V/uS
1 Khz
Better than -90 dB
10 Khz
Better than -70 dB
AC Mains, 100VAC to 240VAC, 50/60 Hz
45 Watts
