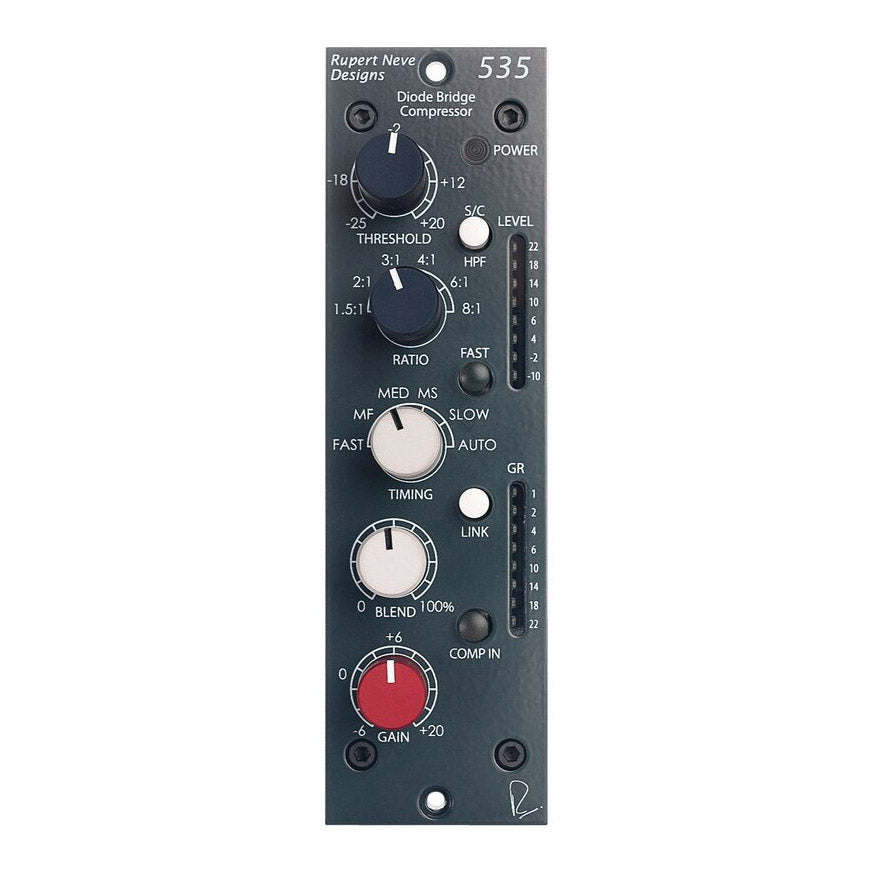

Rupert Neve 535 500 Series Diode Bridge Compressor

The 535 Diode Bridge Compressor features advanced timing control, low noise, fully stepped controls, and internal parallel processing capabilities.

The RATIO control has six selectable positions on a rotary switch, allowing the user to set the slope of the compressor curve with pre-selected ratios of 1.5:1 through 8:1 for levels above the determined THRESHOLD. This range of compression ratios allows the user to compress as moderately or heavily as desired.

The BLEND control has 31 detents and allows the user to mix the uncompressed (dry) signal with compressed (wet) signal. Turning the control towards 0% will shift the mix to fully uncompressed dry signal, whereas turning the control towards 100% will shift the mix to the fully compressed signal. This feature allows for parallel compression, enabling a wide range of compression subtlety.

The GAIN control has 31 detents and allows the user to add make-up gain to the compressed signal in order to bring its level back up to unity with the uncompressed input signal.

The S/C HPF switch allows the user to insert a 12dB/octave 150Hz high-pass filter in the compressor side chain. When this filter is engaged, the compressor will be considerably less responsive to information below 150Hz.

Two LED meters for level and gain reduction provide highly accurate representations of both the output level of the compressor and the amount of gain reduction being applied to the input signal.
