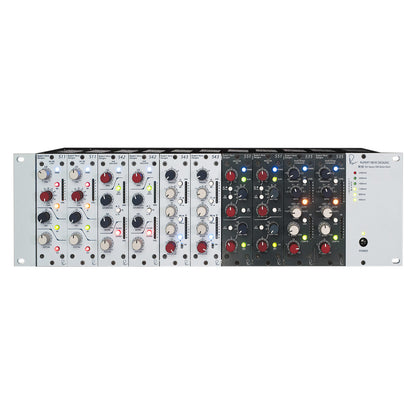

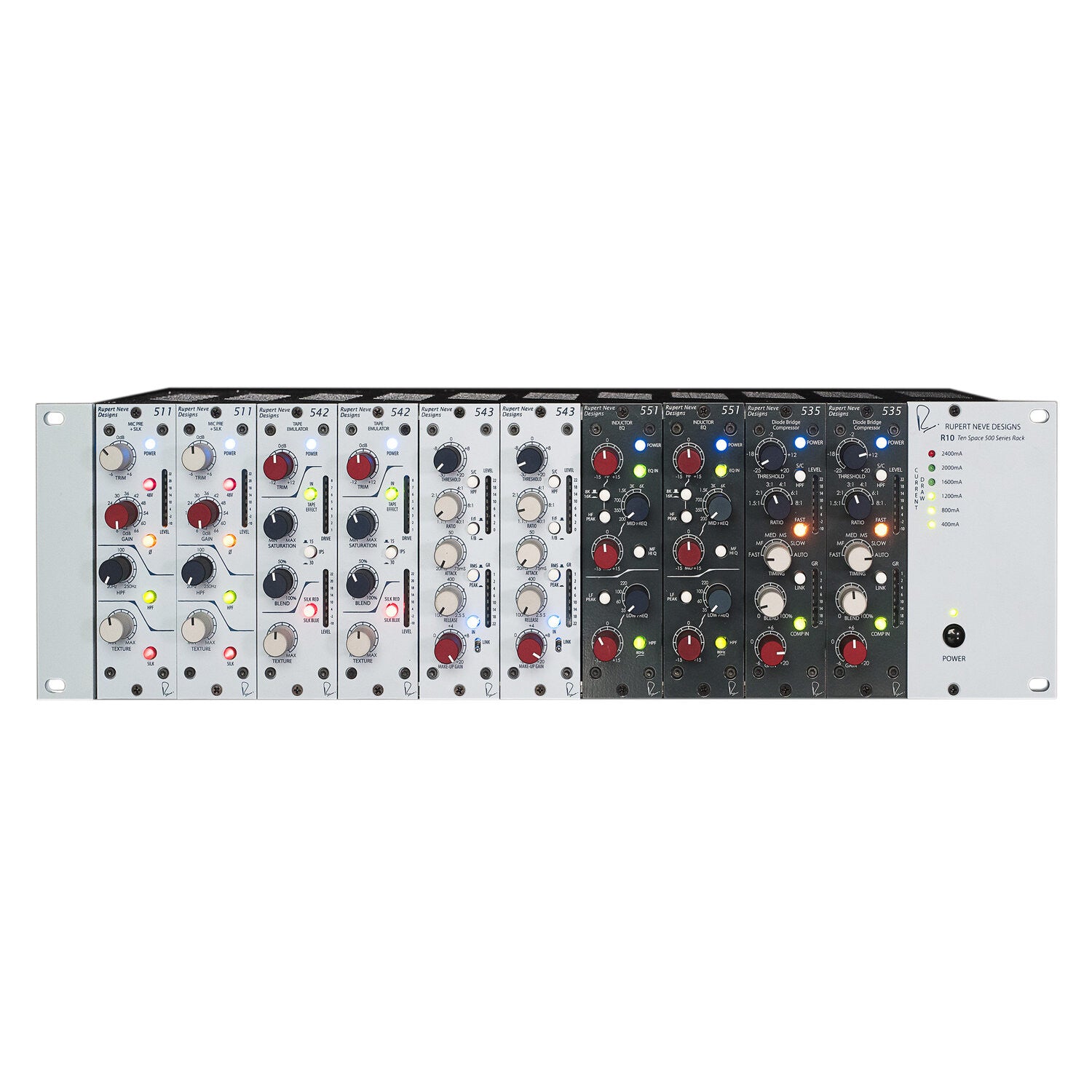

Rupert Neve R10 Ten-Space 500 Series Rack

With abundant power and unrivaled build quality, the R10 delivers peace of mind for engineers who demand a higher degree of confidence in their 500 series racks.

The R10 has more than 150% the required current for a 10-space chassis to prevent the power rails from failing under a higher-than-expected load. To help monitor and troubleshoot problematic modules, LLED current metering shows how much power is being used. Internal power supply was carefully designed and double-shielded to avoid significant magnetic induction in any of the channel positions. To ensure many years of use, the chassis is made of solid steel with sliding nuts to accommodate various manufacturers’ 500 Series modules. All connectors and fittings are of the very highest quality.

Because the R10 is built to official 500 Series specifications it will work flawlessly with any 500 series module you wish to include in it. To help accommodate modules that are slightly out of spec, the R10 has variable-position screw holes to help make the installation process as smooth as possible.

The 500 series VCA buss link function can also be enabled in pairs on the R10 using the link jumpers on Channels 1-2, 3-4, 5-6, 7-8 or 9-10. Enabling link allows compatible compressor modules like the 535 or 543 to share VCA control when their links are enabled. Matching blank panels are also available to cover any empty slots.
