Specifications
Circuitry
Circuit Topology

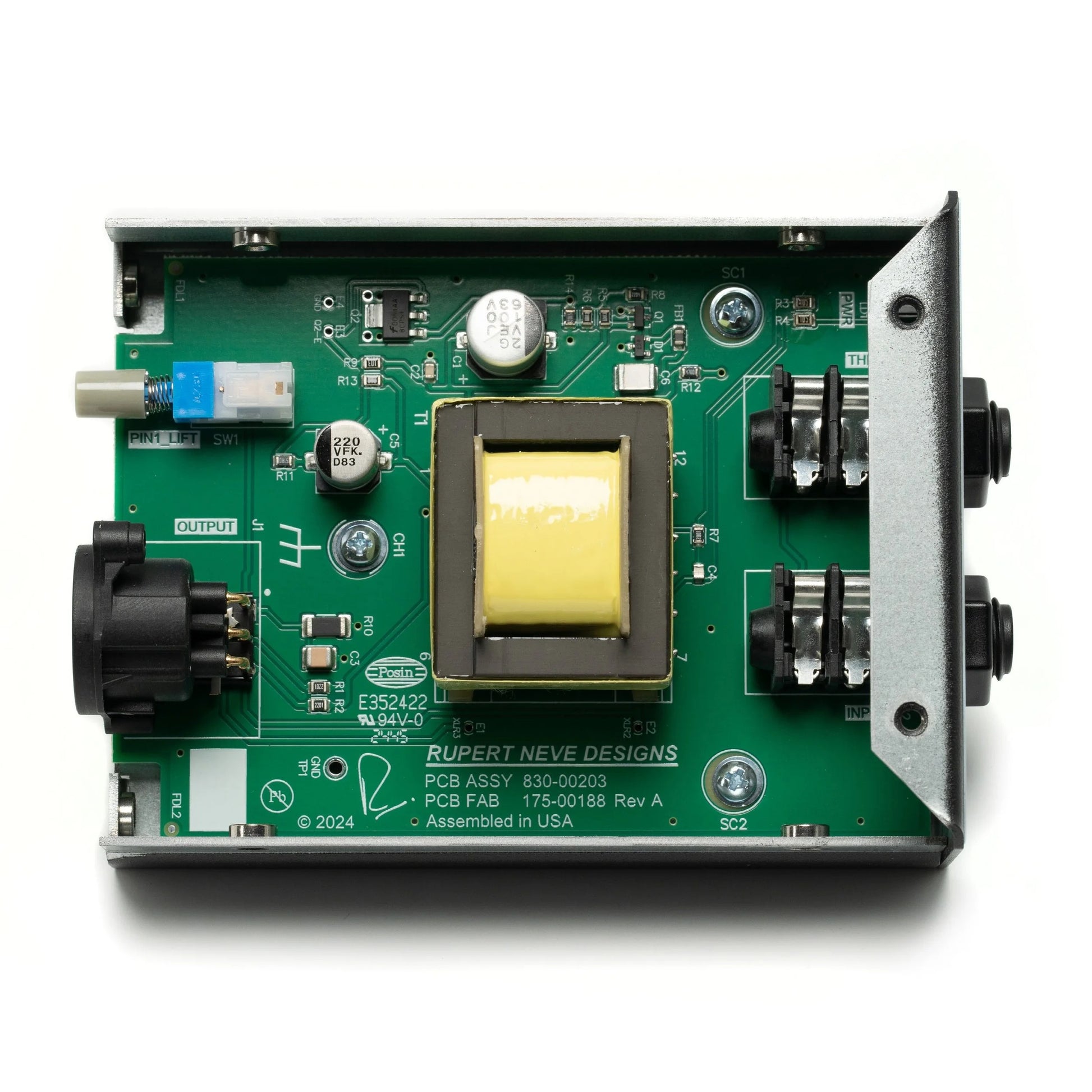

Class-A discrete FET input stage
Input Impedance
2.2 Megaohms
Maximum Input Level
+20.5dBu
Frequency Response
Flat within a quarter dB from 28Hz to 60kHz
Frequency Response Tolerance
+/- 1dB up to 90kHz
Low Frequency Response
below 5Hz
Connections and Power
Output Stage
low impedance transformer-coupled
Output Impedance
below 40 ohms
THRU Output
1/4″ THRU output

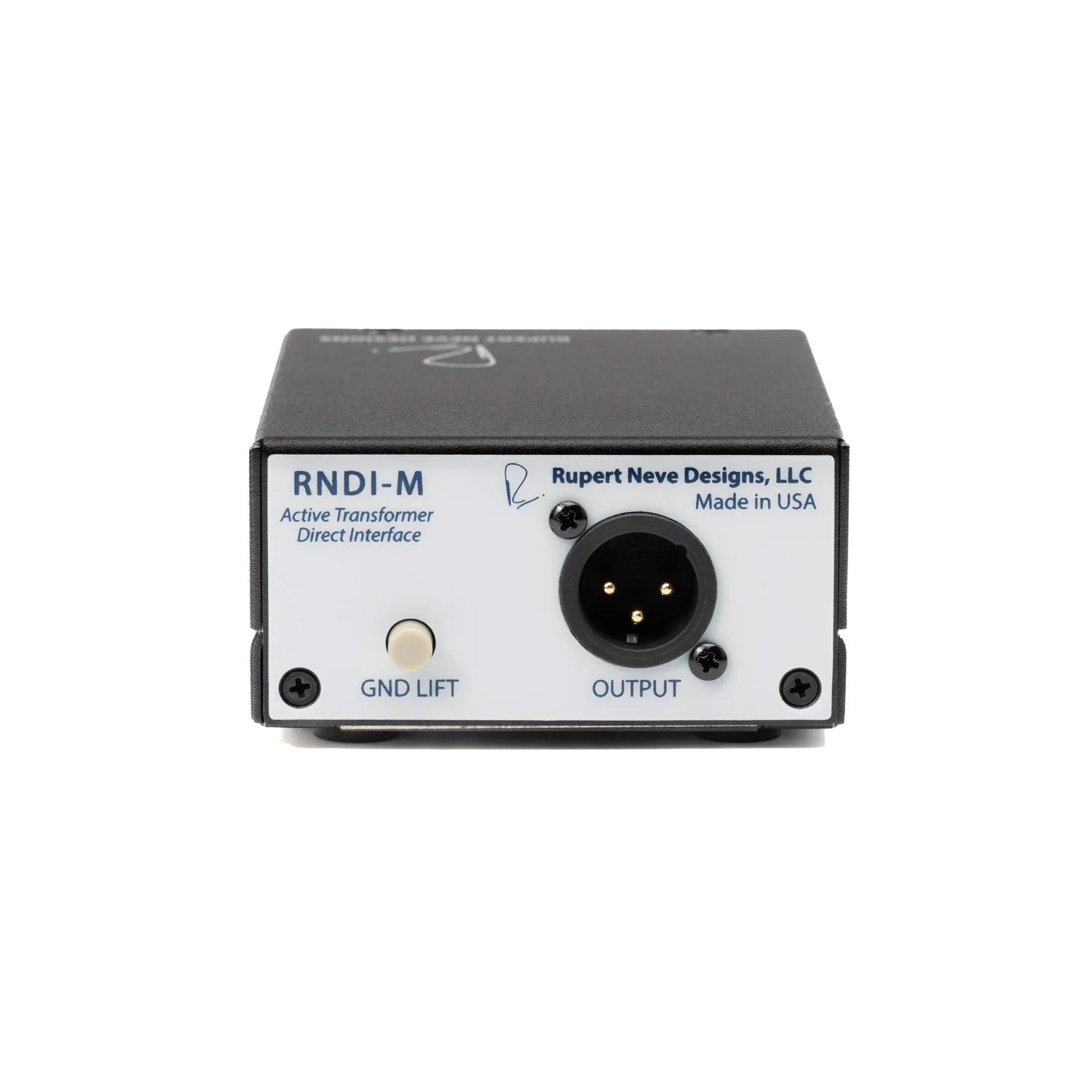

Ground Lift
Pin 1 on the XLR balanced output isolated from circuit ground
Power
standard 48V phantom power
Power Indicator
blue LED
Construction
Chassis
rugged steel
