Specifications
--System
Working Range
300' (100m) line of sight
Audio Frequency Response
50 Hz - 15 kHz
T.H.D. (Overall)
<1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range
>100 dB A-weighted
Signal to Noise
>95 dB
Tone Key Frequency
35 kHz

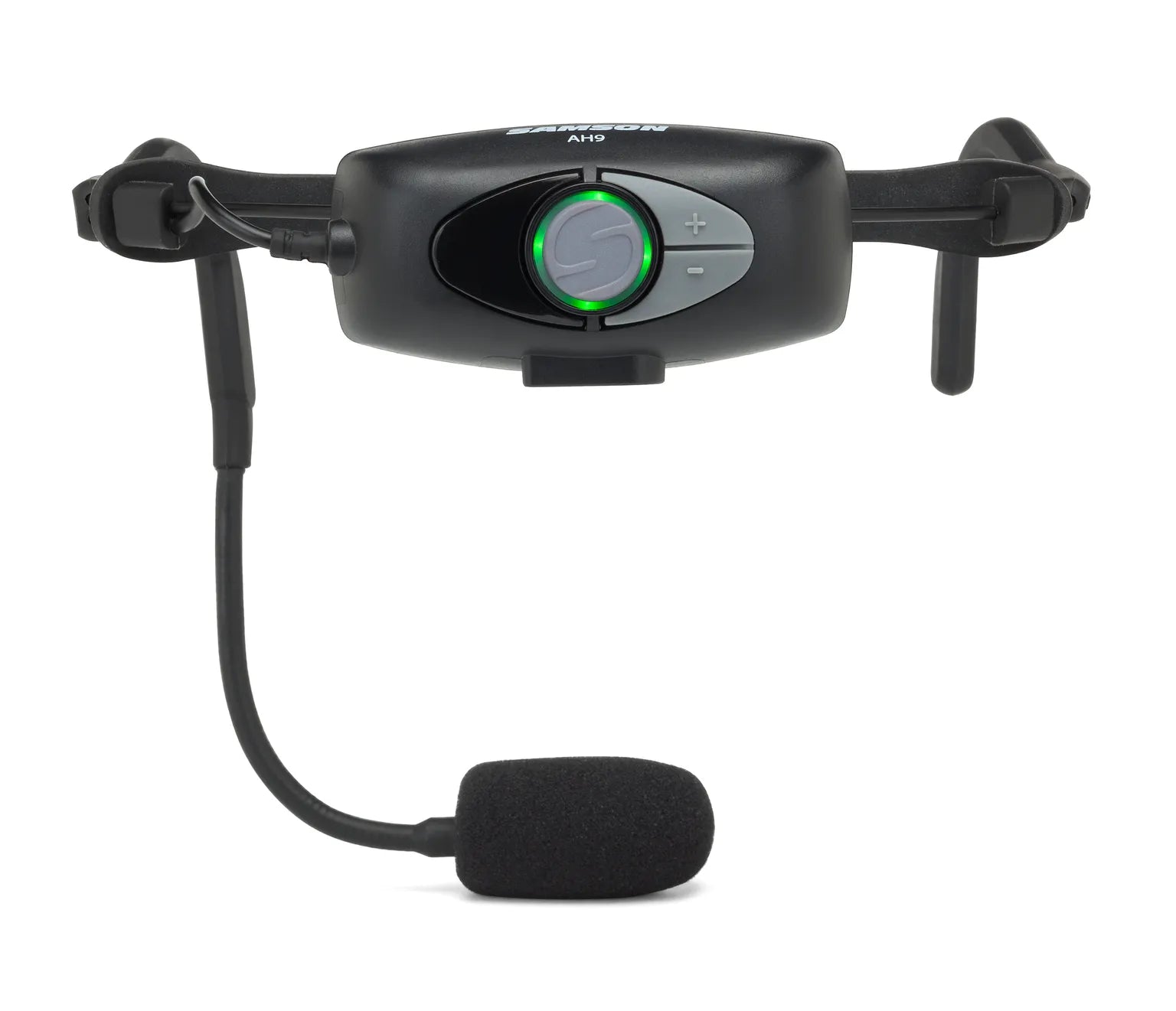

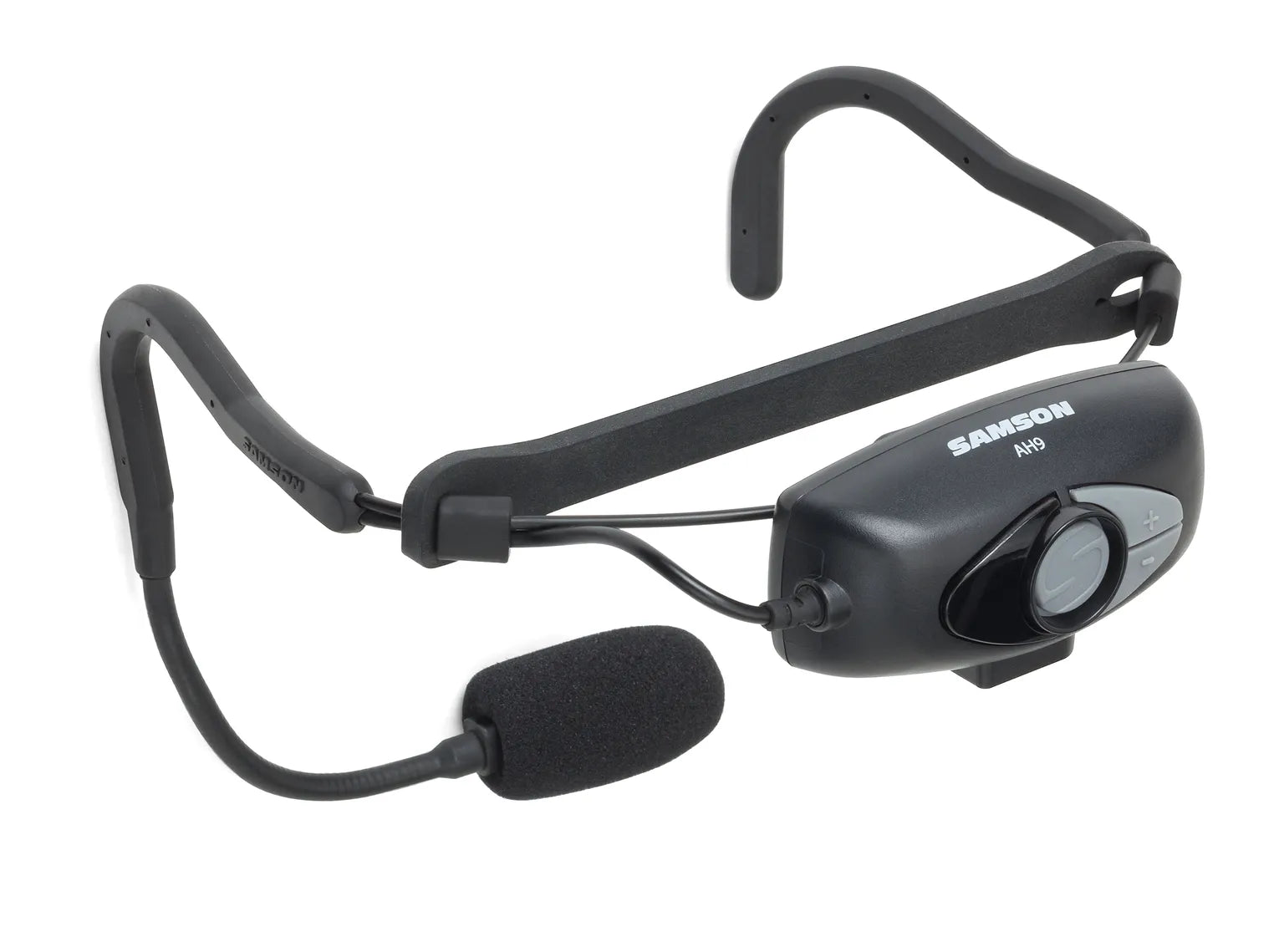

AH9 Transmitter
Input Gain Range
20dB
RF Power
10mW EIRP
Power Requirements
3.6V 500mAh
Battery
Lithium Ion rechargeable
Battery Life
8 hours
Dimensions
5.9" x 6.7" x 3.9" / 150mm x 170mm x 100mm
Weight
0.13lb / 60g

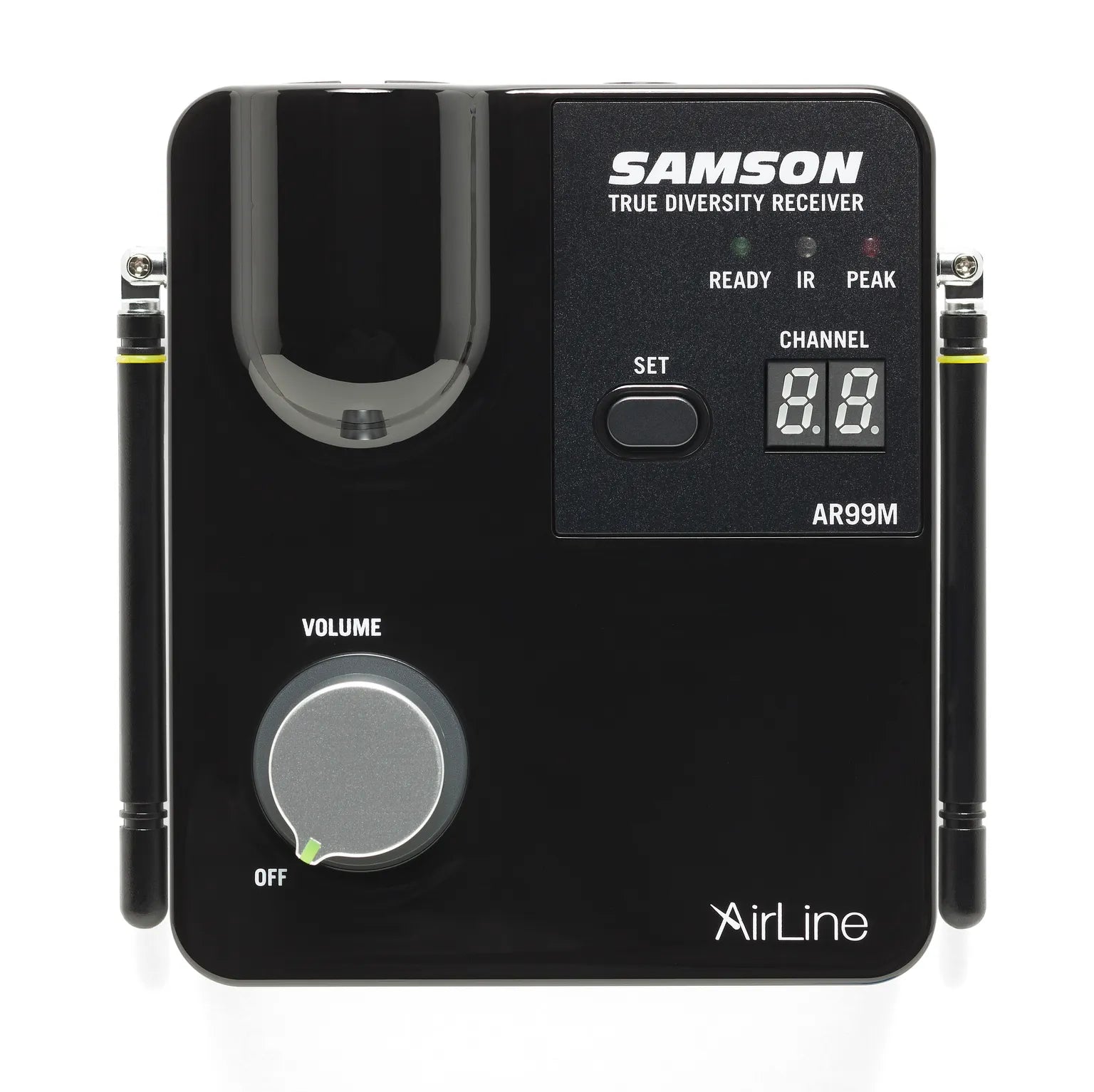

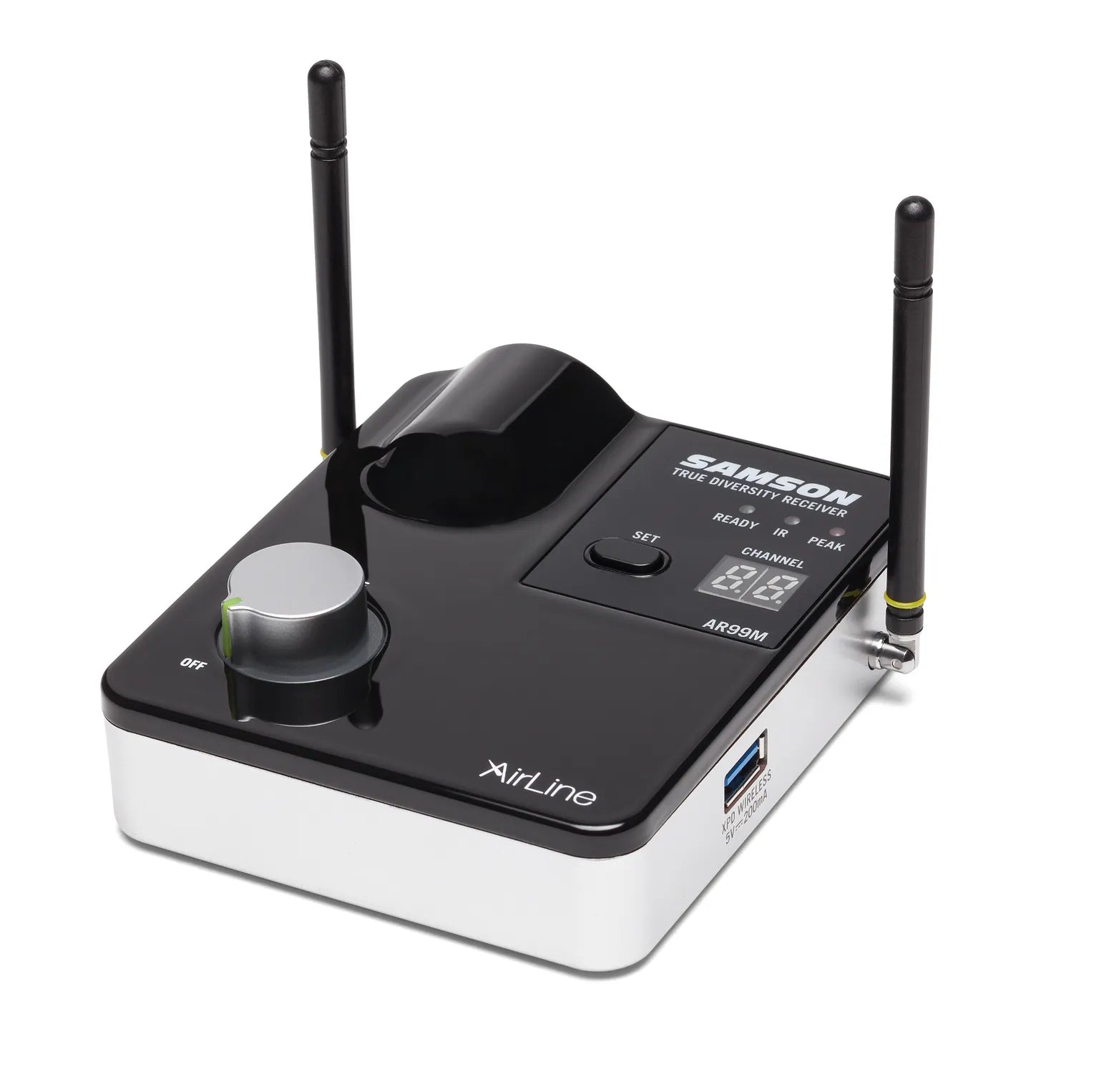

AR99m Receiver

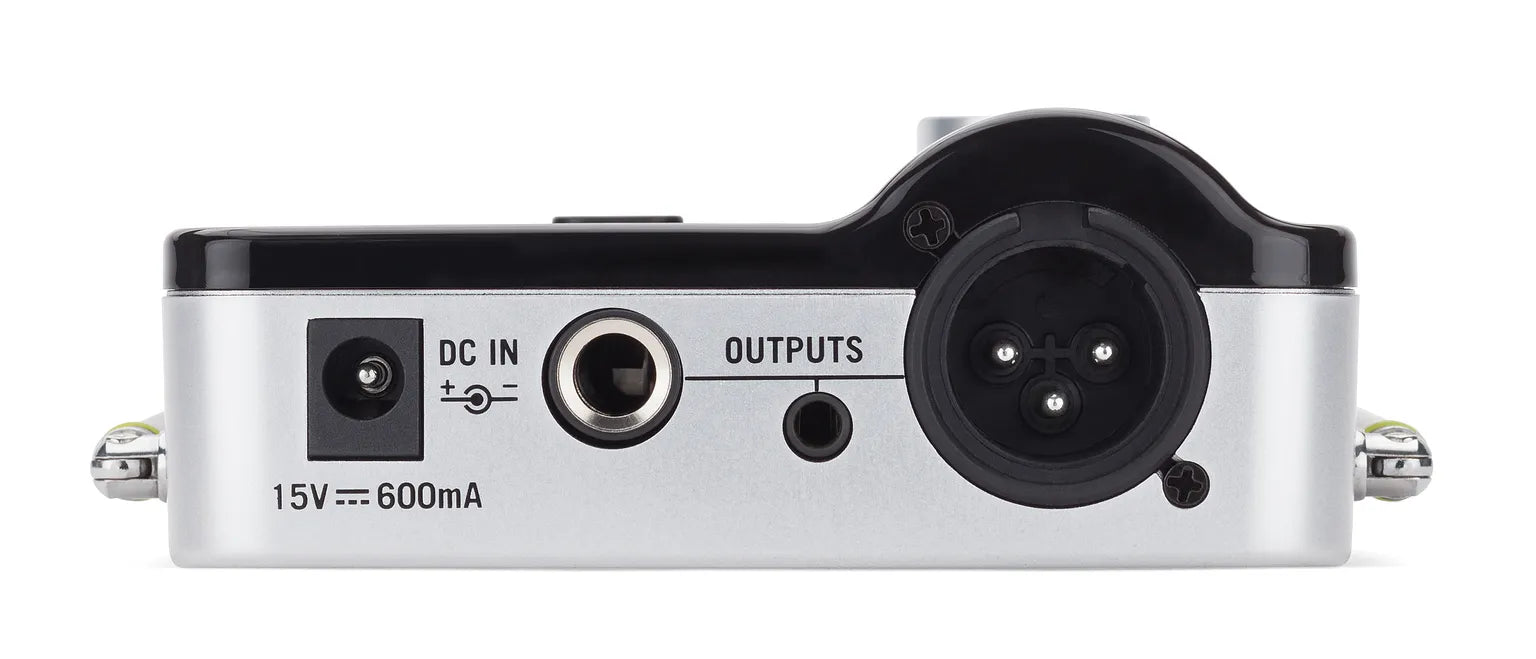

Audio Output Level 1/8" (3.5mm) & 1/4" (6.3mm) jack (unbalanced)
+14dBu
Audio Output Level XLR jack (balanced)
+9dBu
Audio Output Impedance 1/8" (3.5mm) & 1/4" (6.3.mm) jack (unbalanced)
810 Ohms,
Audio Output Impedance XLR output jack (balanced)
240 Ohms
Sensitivity
100dBm/30dB SINAD
Image Rejection
>50dB
Operating Voltage
15VCC 600mA
Dimensions (LxWxH)
4.3" x 3.74" x 1.5" / 110mm x 95mm x 39mm
Weight
0.42lb / 192g
