Saramonic UWMIC9S-KIT1 Advanced Wireless Lavalier Microphone System
Saramonic UWMIC9S-KIT1 Advanced Wireless Lavalier Microphone System
SoundPro Item: 117931 | Part Number: UWMIC9S-KIT1
Usually ships in 5-7 business days
- Delivering professional broadcast-quality sound
- Low-cut function for low-frequency noise canceling
- Infrared pairing function
- Mono/Stereo mode switchable
- Vivid High-contrast OLED display
- Detachable and 360°switchable antenna
- ON/OFF physical switches for group channel A and B
- Independent left and right channel outputs
- Built-in rechargeable Li-ion battery
- Mic and Line input for multi-layered content creating
- Headphone monitoring available
The Saramonic UwMic9s wireless microphone system provides a premium 2-person wireless audio solution for Broadcast and TV, ENG, filmmakers, vloggers, mobile journalists and content creators. It is an easy-to use, high-quality and flexible UHF system. The external input allows the receiver to be connected to a mic or line level device, such as a shotgun microphone, mixer, recorder or music player to capture additional sound or music. The system can be powered through its USB-C ports,allowing it to run for numerous hours on a USB-C 5V power bank.

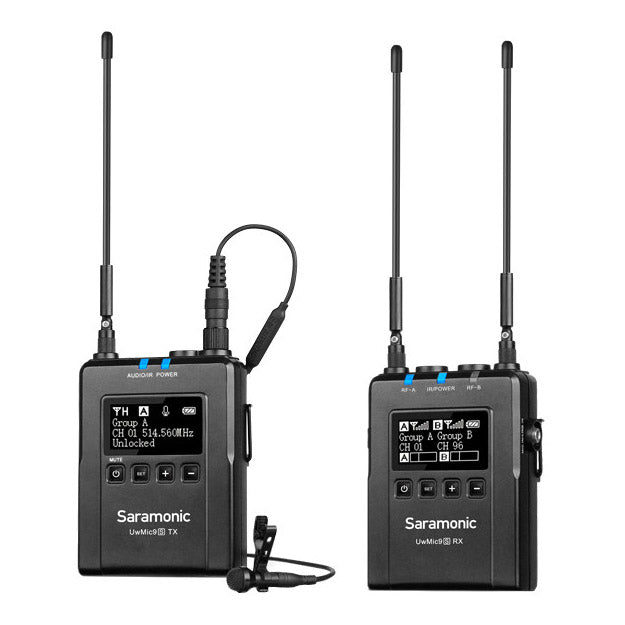

The receiver in this system is UwMic9s RX, a camera-mountable dual-channel UHF wireless receiver. It features wide switching RF bandwidth, a high-contrast OLED display and infrared, synchronization between transmitter and receiver. The two detachable antennas can be rotated 360° for better reception. The receiver’s output can be toggled between mono and stereo modes.The low-cut function on the receiver minimizes low-frequency rumble.
Mountable body-pack transmitter UwMic9S-TX9S features an easy-to-read OLED display, a detachable antenna and built-in rechargeable batttery. With the line input and mic input jack, it can accept audio from the included 3.5mm locking lavalier mic or other line-level devices. A short press of the power button mutes the mic between takes. The locking function prevents the transmitter from being muted or turned off accidentally.
- RX9S Receiver
- Channel number: 2 Banks of 96-Channels
- Channel Groups: A & B
- Oscillator Type: PLL Synthesizer
- Audio Output Connectors: 2x 3.5mm Locking-Type (A & B Outputs)
- Headphone Output: 3.5mm Locking-Type
- Microphone / Line-Level Input Connection: 3.5mm Locking-Type
- Antenna: 1/4λ Wire Antenna
- Audio Output Level: -60 dBV
- Headphone Output Level: 30mW(16Ω)
- Receiver Frequencies: 514MHz-596MHz
- Receiver Sensitivity: -95dBm
- Signal-to-Noise Ratio: 75dB or more
- Reference Deviation: ±5kHz(-60 dBV,1kHz input)
- Frequency Response: 40Hz to 18kHz (+/-3dB)
- Distortion: 0.2% or less
- Spur Suppression: -60dB
- Reference Audio Input Level: -60dBV (Mic input, 0dB attenuation)
- Built-in Battery Capacity: 2000mA
- Power Requirements: Built-in Li-ion Battery or USB-C DC 5V
- Continuous Run Time: 8-Hours
- Dimensions: 8.66 x 2.52 x 0.98 (220 x 64 x 25mm)
- Weight: 6.8oz (193g)
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to +55°C
- TX9S Transmitter
- Channel Number: 96-Channels
- Channel Groups: A & B
- Oscillator Type: PLL Synthesizer
- Carrier Frequencies: 514MHz-596MHz
- Reference Deviation: ±5kHz(-60 dBV,1kHz input)
- Signal-to-Noise Ratio: 75dB or more
- Spur Suppression: -60dB
- Microphone Level Input Steps: -4dB, 0dB, +4dB, +6dB, +8dB, +12dB, +15dB, +18dB, +20dB
- Line-Level Input Level Steps: -14dB, -10dB, -7dB, -4dB, -2dB, +2dB, +5dB, +8dB, +10dB
- Voice Delay: 12ms
- Antenna: 1/4λ Wire Antenna
- Microphone Input Connector: 3.5mm Locking-Type
- Line-Level Input Connector: 3.5mm Locking-Type
- Reference Audio Input Level: -60dBV (Mic input, 0dB attenuation)
- Distortion: 0.2% or less
- Built-in Battery Capacity: 2000mA
- Power Requirements: Built-in Li-ion Battery or USB-C DC 5V
- Continuous Run Time: Up to 10-Hours
- Dimensions: 8.66 x 2.52 x 0.98 (220 x 64 x 25mm)
- Weight: 5.5 oz (157g)
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to +55°C
- DK3A Lavalier
- Acoustic Principle: Electret Condenser
- Polar Pattern: Omnidirectional
- Sensitivity: -40±2dB (1kHz 0dB=1V/Pa)
- Frequency Range: 20Hz to 18kHz
- Signal-to-Noise Ratio: More than 58dB
- Operating Temperature: -20°C - 60°C
- Connector: Gold-Plated Locking 3.5mm
- Cable Length: 70.87” (180cm)
- SR-C6 Case
- Material: Polypropylene
- Weight: 1.4lb (640g)
- External Dimensions: 9.88x7.46x3.64 (251x189.5x92.5mm)
- Interior Dimensions: 9.17x6.02x3.15" (233x153x80mm)
- Interior Padding: Pre-Cut Foam
- Rated: IP67 (1-meter submersion for up to 30 minutes)
- Temperature Rating: -40 to +210°F (-40 to +95°C)
