Specifications
Components
Capsule|Hand-Crafted 1.25" True Condenser

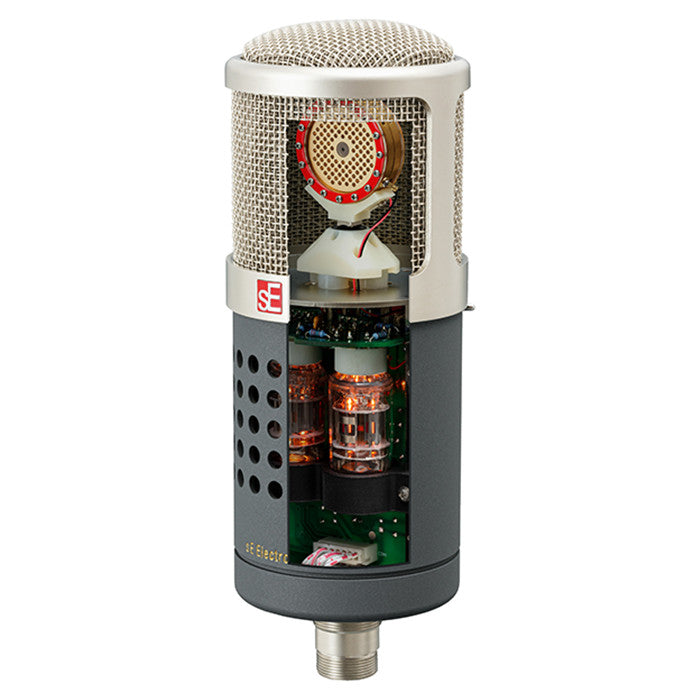

Tube Complement|1x 12AX7 / ECC83, 1x 12AU7 / ECC82
Diaphragm Material|Gold-Sputtered Mylar
Electrical
Electrical Impedance|200 Ohms
Recommended Load Impedance|>1k Ohms
Power Source|Provided By Included Power Supply Unit
Audio
Polar Pattern|Cardioid
Frequency Range|20 Hz - 20 kHz
Sensitivity|40 mV / Pa (-28 dBV)
Max SPL (0 dB Pad)|151 dB (0.5% THD @ 1kHz)
Max SPL (-10 dB Pad)|135 dB (0.5% THD @ 1kHz)
Equivalent Noise Level|13 dB
Dynamic Range (0 dB Pad)|122 dB
Dynamic Range (-10 dB Pad)|132 dB
Signal To Noise Ratio|81 dB
Low-Cut Filter|150 Hz, 6 dB / Octave, Switchable
Attenuation Pad|10 dB, Switchable
Connectivity
Connector Type|3-Pin Male XLR
Dimensions
Microphone Diameter|3.15"
Microphone Length|8.66"
Flight Case Dimensions|7.32" x 6.18" x 3.19"
Weight
Microphone Weight|41.62 oz.
Flight Case Weight|69.49 oz.

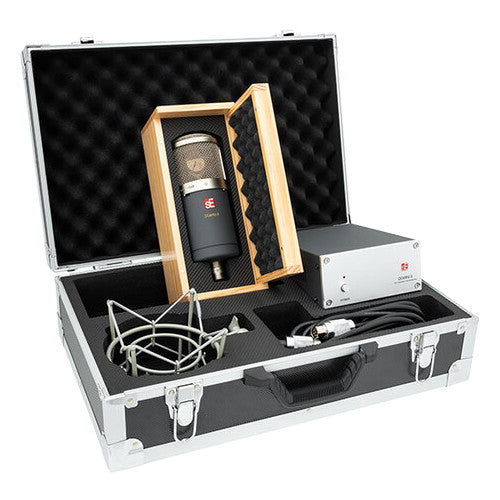

Included Items

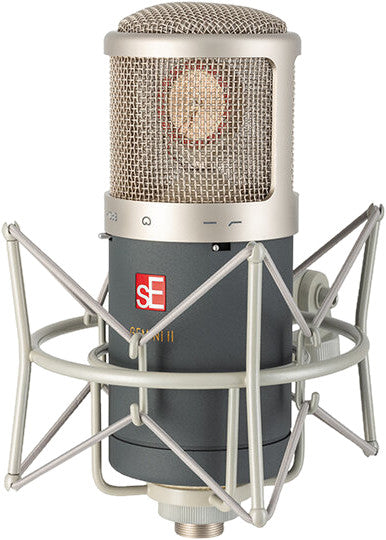

Shock-Mount|Custom Shock-Mount
Power Cable|IEC Power Cable
Microphone Cable|8-Pin Cable
