Specifications
Components
Capsule Type
2/3" Back-Electret Condenser
Audio
Polar Pattern
Cardioid
Frequency Range
20 Hz - 20 kHz
Sensitivity
20 mV/Pa (-34 dBV)
Equivalent Noise Level
16 dB
Signal To Noise Ratio
78 dB
Maximum SPL
130 dB (0 dB pad) / 150 dB (20 dB pad)
Dynamic Range
114 dB (0 dB pad) / 134 dB (20 dB attenuation pad)
Connectivity
Connector
3-Pin Male XLR
Input Impedance
<50 Ohms
Recommended Load Impedance
>1 kOhms
Switches
Low-Cut Filter
100 Hz, 6 dB/Oct, Switchable
Attenuation Pad
20 dB, Switchable
Power
Phantom Power
48V (P48 according to IEC 61938)
Current Consumption
4.0 mA
Dimensions
Diameter
58 mm (2.28")
Length
169 mm (6.65")
Weight
Microphone Weight
390 g (13.76 oz.)
Included Items

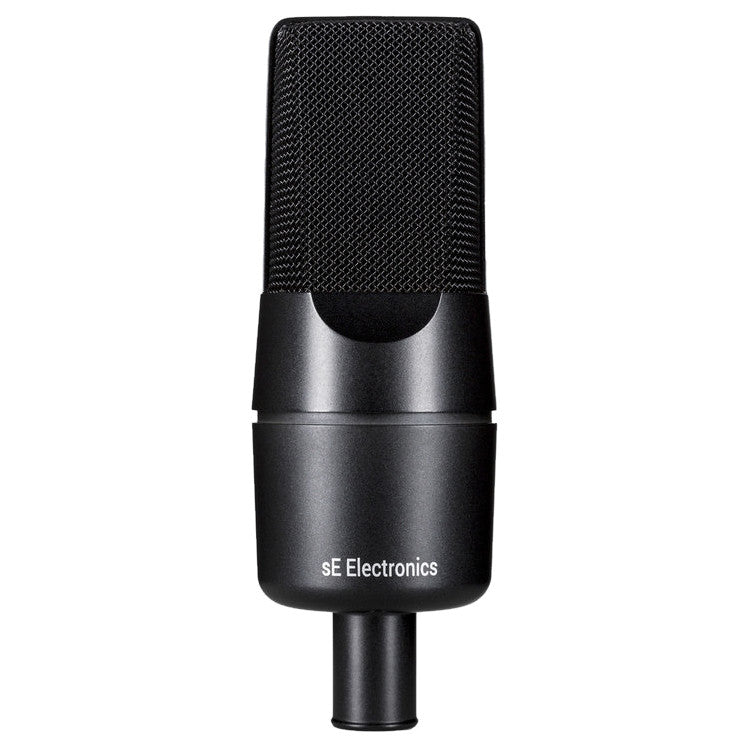

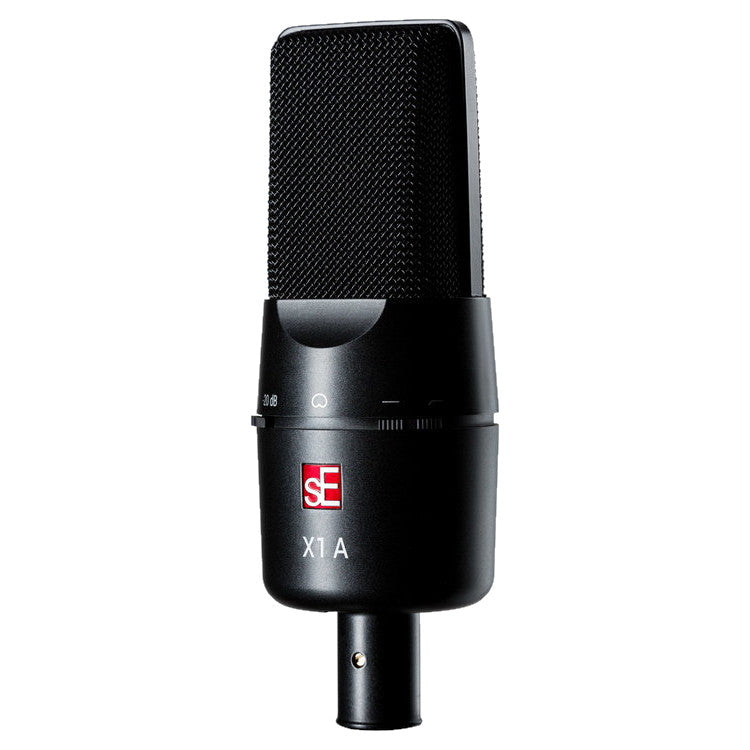

X1-A-U Microphone
Yes

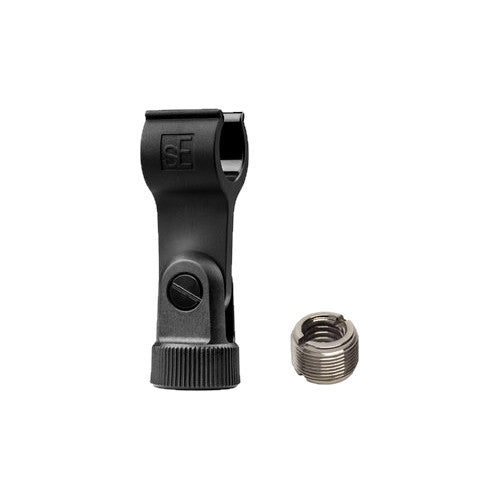

Swivel Mic Clip
Yes
Mic Stand Thread Adapter
Yes
