Specifications
Components
Capsule
Hand-crafted 1" True Condenser
Tube Complement
1x 12AX7 / ECC83
Diaphragm
Gold-sputtered mylar
Audio
Polar Patterns
9 (Omni, Cardioid, Figure-8 with three additional steps between each)
Frequency Range
20-20,000 Hz
Sensitivity
25 mV / Pa (-32 dBV)
Max SPL
127 dB (0 dB attenuation pad) / 137 dB (10 dB attenuation pad)
Equivalent Noise Level
13 dB
Dynamic Range
114 dB (0 dB attenuation pad) / 124 dB (10 dB attenuation pad)
Signal to Noise Ratio
81 dB
Low-Cut Filter
50 Hz, 6 dB / Oct, switchable
Attenuation Pad
10 dB, switchable
Electrical
Electrical Impedance
200 Ohms
Recommended Load Impedance
> 1 kOhms
Powering
Provided by power supply unit (included)
Connectivity
Connector
3-pin male XLR
Dimensions
Mic Diameter
62 mm (2.44")
Mic Length
220 mm (8.66")
Mic Weight
850 g (29.98 oz.)
Floor Box Dimensions
186 x 157 x 81 mm (7.32" x 6.18" x 3.19")
Floor Box Weight
1970 g (69.49 oz.)

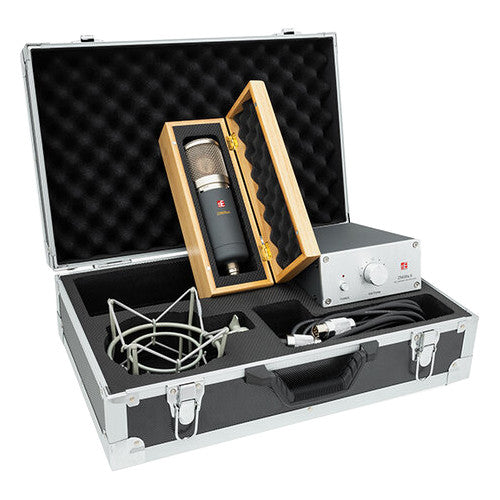

Included Items
Z5600a II Microphone
Yes
8-Pin Microphone Cable
Yes

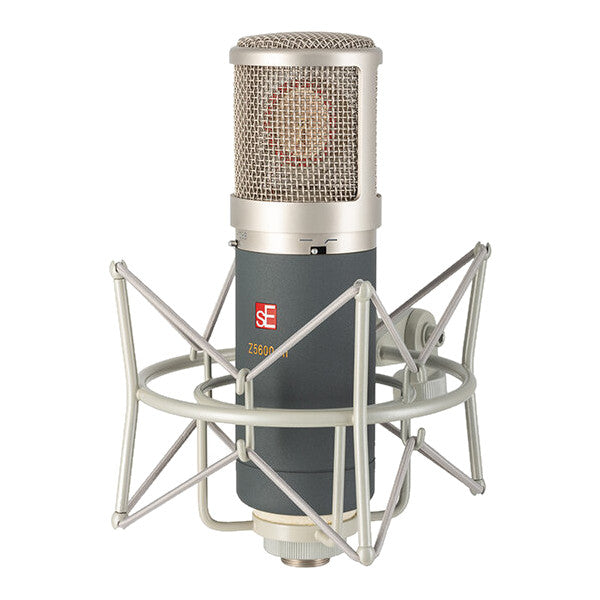

Custom Shockmount
Yes
Power Supply
Yes
IEC Power Cable
Yes
