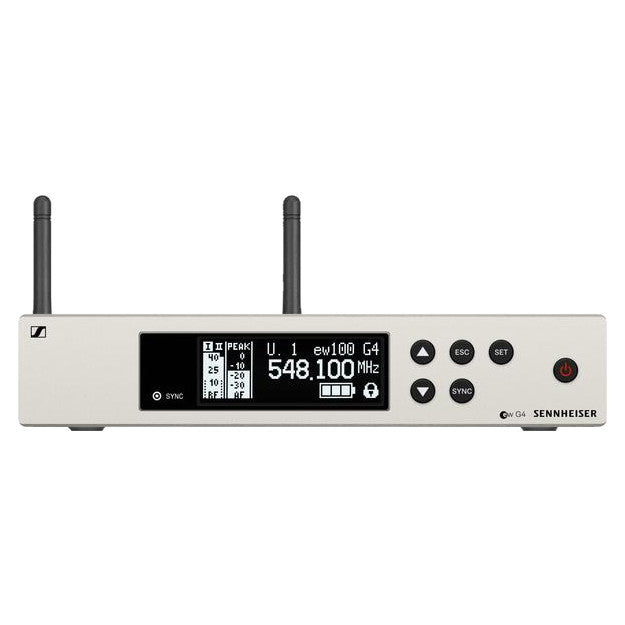

Sennheiser EM 100 G4 True Diversity Half-Rack Receiver | Frequency: A (516-558 MHz)

Sennheiser EM 100 G4 True Diversity Half-Rack Receiver | Frequency: A (516-558 MHz)

SoundPro Item: 118334 | Part Number: EM 100 G4-A

$429.00
$499.00 $429.00
Your Price Sold out
MSRP: $499.00 | MAP: $429.00

Usually ships in 5-7 business days

  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations
Log in or register for YOUR best price

The EM 100 G4 from Sennheiser is a true diversity, half-rack receiver. This receiver is sturdily built with an all-metal housing. It also boasts an intuitive LCD to help you easily take visual stock of your wireless system. Part of G4 100 Series, the EM 100 G4 comes with 2 rod antennas, a power supply RJ10 cable, and rackmount set, as well as a quick guide, safety guide, manufacturer declaration sheet, and frequency supplement sheet.

View full details
  • Frequency range
    • 1G8: 1785 - 1800 MHz
    • A: 516 - 558 MHz
    • A1: 470 - 516 MHz
    • AS: 520 - 558 MHz
    • B: 626 - 668 MHz
    • C: 734 - 776 MHz
    • D: 780 - 822 MHz
    • E: 823 - 865 MHz
    • G: 566 - 608 MHz
    • GB: 606 - 648 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937,5 MHz
  • DimensionsApprox. 190x212x43 mm
  • CompanderSennheiser HDX
  • THD, total harmonic distortion≤ 0.9 %
  • WeightApprox. 980 g
  • Audio output
    • 6.3 mm jack socket (unbalanced): +12 dBu
    • XLR socket (balanced): +18 dBu
  • Signal-to-noise ratio≥ 110 dBA
  • Switching bandwidthup to 42 MHz
  • Peak deviation±48 kHz
  • Nominal deviation±24 kHz
  • ModulationWideband FM
  • Power supply12 V DC
  • Antenna connector2 BNC sockets
  • Current consumption300 mA
  • Adjacent channel rejectionTypically ≥ 65 dB
  • Intermodulation attenuationTypically ≥ 65 dB
  • Receiving frequencyMax. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • RF sensitivity< 2.5 μV for 52 dBA eff S/N
  • Squelchlow: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
  • Equalizer
    • Preset 1: Flat
    • Preset 2: Low Cut (-3 dB at 180 Hz)
    • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    • Preset 4: High Boost (+6 dB at 10 kHz)
  • Temperature Range10 °C to +55 °C
  • Receiver PrincipleTrue diversity
  • Blocking≥ 70 dB
