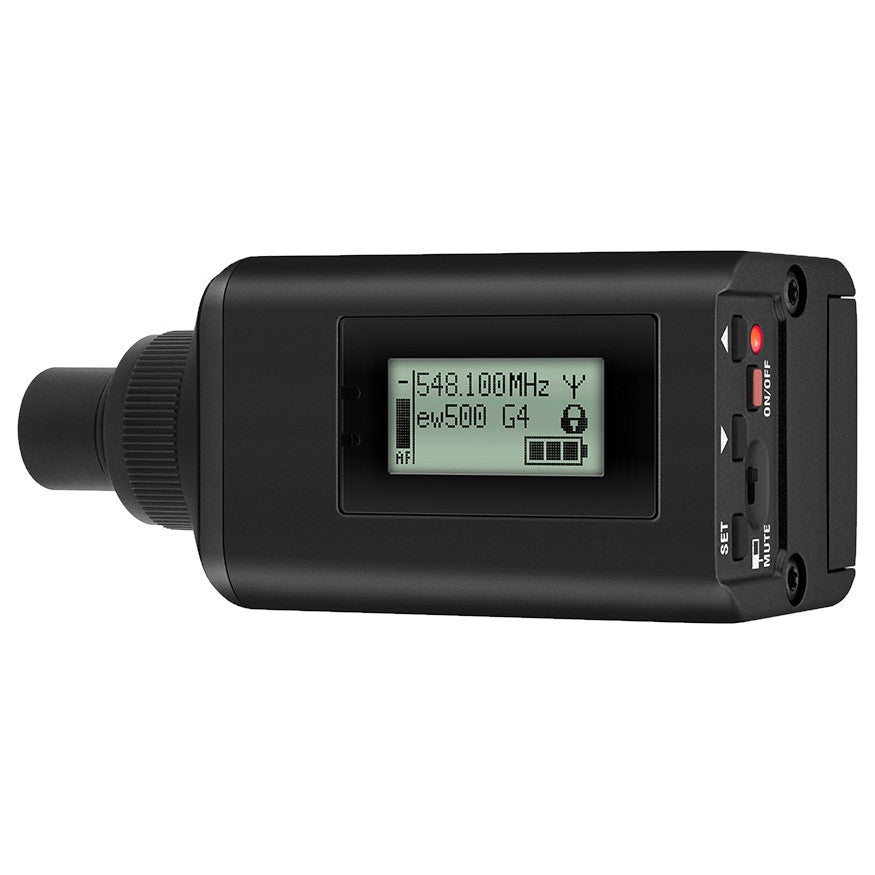

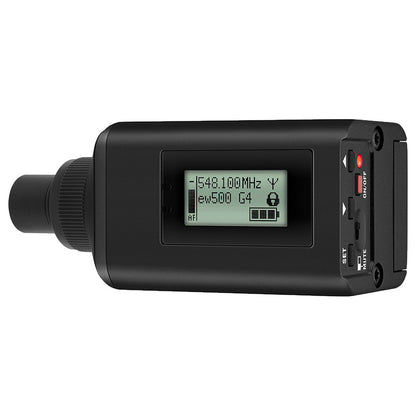

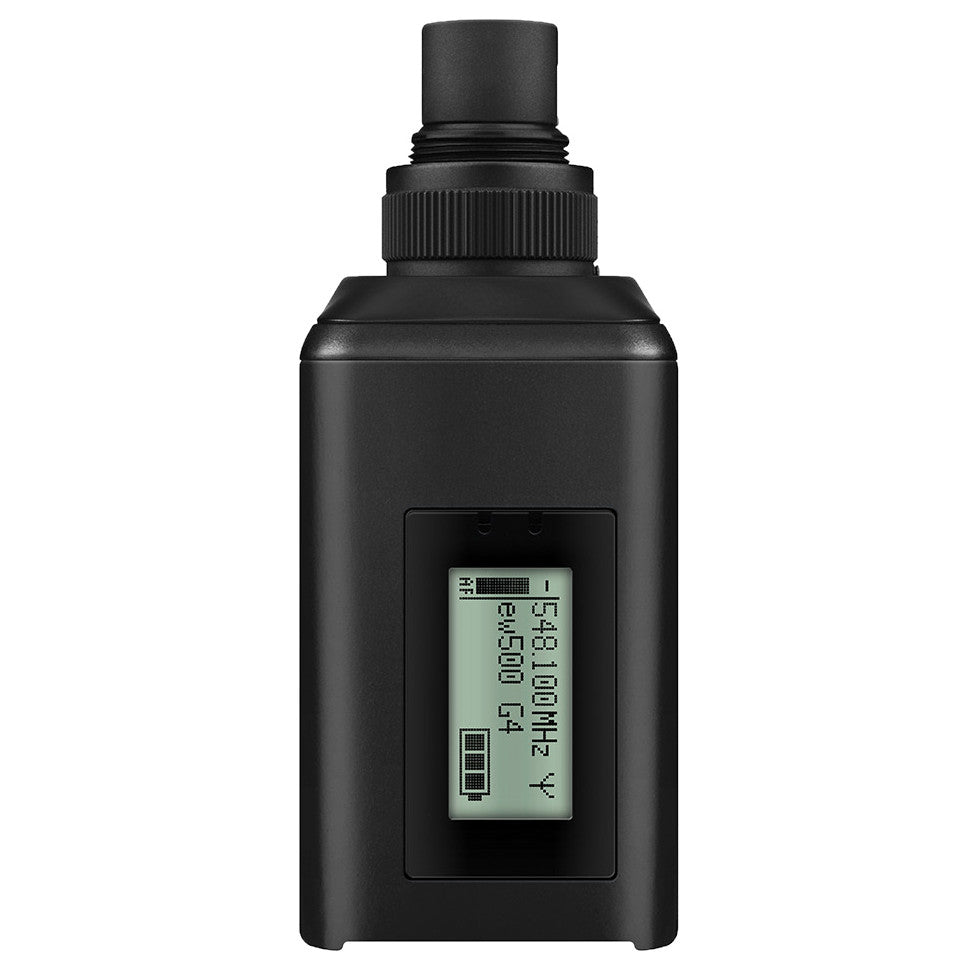

Sennheiser SKP 500 G4 Plug-On Transmitter with Phantom Power | Frequency: AW+ (470-558 MHz)
Sennheiser SKP 500 G4 Plug-On Transmitter with Phantom Power | Frequency: AW+ (470-558 MHz)
SoundPro Item: 118329 | Part Number: SKP 500 G4-AW+
Usually ships in 5-7 business days
- Professional sound and excellent construction quality
- Easy to use and fast setup time
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 88 MHz bandwidth, up to 32 channels
- Range: up to 100m/330 feet
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
- With 48V phantom powering
Powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions.
- Frequency range
- AS: 520 - 558 MHz
- Aw+: 470 - 558 MHz
- Bw: 626 - 698 MHz
- Cw: 718 - 790 MHz
- Dw: 790 - 865 MHz
- GBw: 606 - 678 MHz
- Gw: 558 - 626 MHz
- Gw1: 558 - 608 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
- DimensionsApprox. 105x43x43mm
- CompanderSennheiser HDX
- THD, total harmonic distortion≤ 0.9 %
- Weight(incl. batteries) approx. 195 g
- Signal-to-noise ratio≥ 120 dBA
- RF output powerswitchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidthup to 88 MHz
- Peak deviation±48 kHz
- Nominal deviation±24 kHz
- Operating timeTypically 8 h
- ModulationWideband FM
- Power supply2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption (at nominal voltage: typ. 210 mA)with transmitter switched off: ≤ 25 μA
- Input impedance68 kΩ, unbalanced
- Max. Input voltage6 Veff
- Powering3V battery / 2.4V rechargeable battery
- Transmission frequencyMax. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
- AF frequency response80 – 18,000 Hz
- Temperature Range-10 °C to +55 °C
