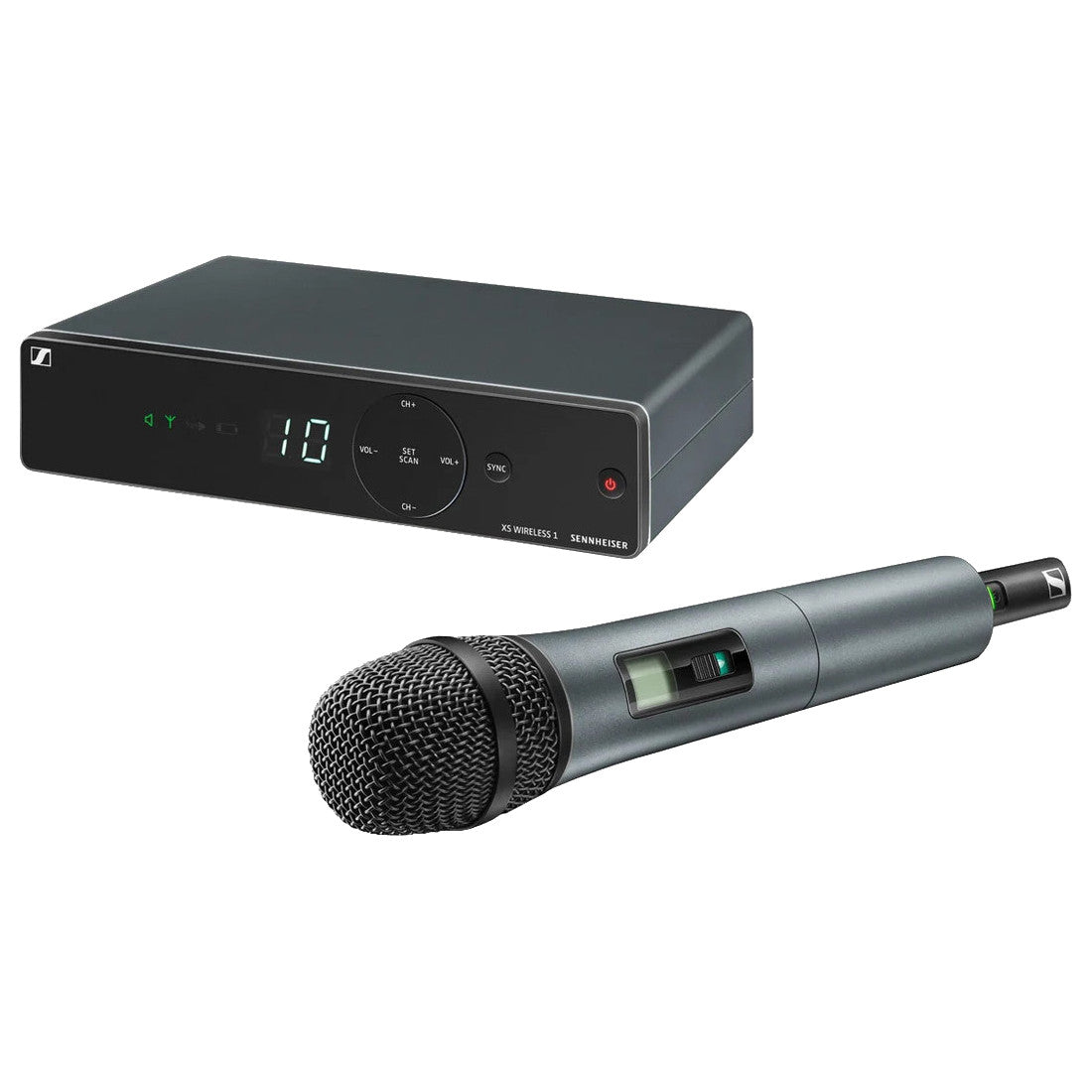

Sennheiser XSW 1-835 Wireless Handheld Microphone System
Sennheiser XSW 1-835 Wireless Handheld Microphone System
SoundPro Item: 75316 | Part Number: XSW 1-835-A
Usually ships in 5-7 business days
- All-in-one wireless handheld microphone system
- User-friendly for singers and presenters in live sound environments
- Excellent live sound featuring Sennheiser’s renowned e835 evolution microphone capsule
- Automatic frequency management and synchronization via remote channel for easy setup
- Antenna-switching diversity reception
- Integrated antennas
The XSW 1-835 system from Sennheiser is an easy-to-use, all-in-one wireless system for singers and presenters, excellent for live sound. This set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone transmitter and microphone clamp. A power supply and two AA batteries are also included.
- Dimensions approx. 200 x 42 x 127 mm
- THD, total harmonic distortion ≤ 0.9%
- Pick-up pattern cardioid
- Signal-to-noise ratio ≥ 103 dBA
- RF output power 10 mW
- Switching bandwidth up to 24 MHz
- Operating time approx. 10 hrs
- Modulation wideband FM

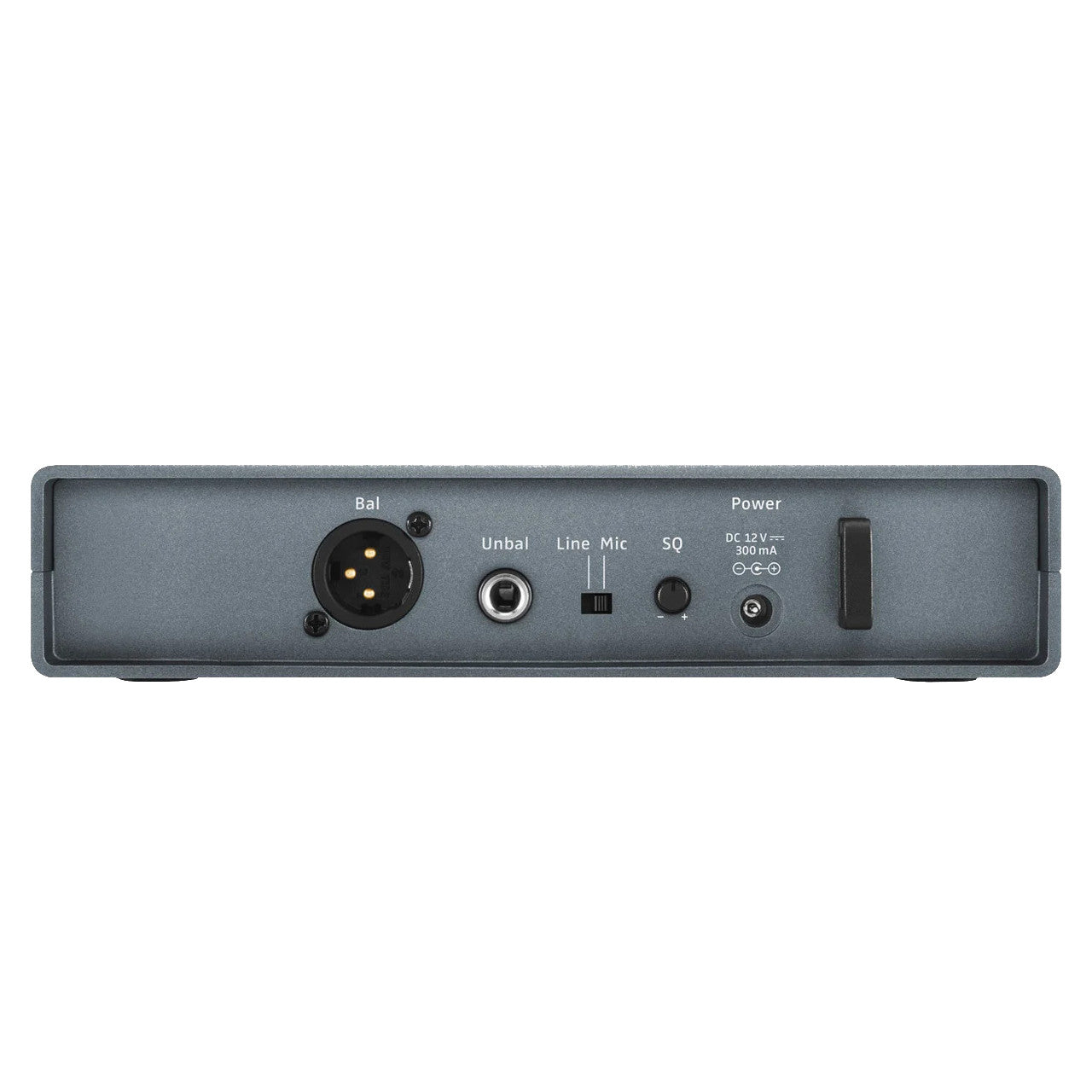

- Output voltage 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu; XLR socket (balanced): +12 dBu
- Housing rugged ABS housing
- Dynamic range dynamic
- Frequency 8 frequency banks, each with up to 10 factory-preset channels
- Frequency range
- A: 548-572 MHz, GB: 606-630 MHz
- B: 614-638 MHz
- C: 766-790 MHz
- D: 794-806 MHz
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
- Sensitivity < 3 μV at 52 dB(A)rms S/N
- Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity 1.5 mV / Pa
- Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range 45 dB, adjustable in 5-dB steps
- Line / Mic level 20 dB, switchable
- Temperature Range
- Operation: 0°C to +40°C
- Storage: –20°C to +70°C
- Receiver Principle double superheterodyne
- Diversity principle Antenna switching diversity via internal antennas
- Receivers
- Weight: approx. 340g
- Power supply: Receiver: 12 V DC nom. / 300 mA
- AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)
- Microphone
- Weight: approx. 245g
- Power supply: Microphone: 2 AA size batteries, 1.5 V
- AF frequency response
- SKM 825: 80-14,000 Hz
- SKM 835: 80-16,000 Hz
