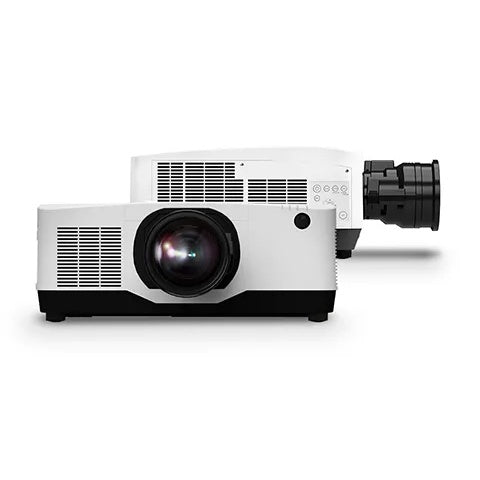

Sharp XP-A155U-W WUXGA LCD Laser Projector 15000 Lumens No Lens

Sharp XP-A155U-W WUXGA LCD Laser Projector 15000 Lumens No Lens

SoundPro Item: 208627 | Part Number: XP-A155U-W

$23,228.00
$29,035.00 $23,228.00
Your Price Sold out
MSRP: $29,035.00 | MAP: $23,228.00

Usually ships in 5-7 business days

  • IP5X Sealed Laser Light Source Eliminates Filter Cleaning And Lamp Replacements
  • HDBaseT Input And Output Passes Video, Audio, And Control In Multi-Projector Runs
  • Compatible With Crestron, Extron, AMX, And PJLink For Seamless Control Integration
  • Motorized Lens Shift, Zoom, And Focus With Memory For Precision Install Alignment
  • Roll-Free Installation Support Expands Placement Options In Complex Venues
  • Six Optional Motorized Zoom Lenses Cover Wide To Ultra-Long Throw Configurations
Log in or register for YOUR best price

The Sharp XP-A155U-W is a 15,000 center-lumen WUXGA laser projector built for demanding permanent installations in higher education lecture halls, corporate boardrooms, and large conference venues. Its 1.0-inch LCD panel with MLA delivers WUXGA 1920x1200 native resolution with 10-bit color processing and a 3,000,000:1 dynamic contrast ratio, making it a capable choice for detailed data visualization and high-definition video presentation at scale.

Sharp's IP5X sealed LCD cooling system eliminates the filter cleaning cycle entirely, reducing service overhead in installations where downtime is not acceptable. The laser light source is rated for 20,000 hours, removing the lamp replacement schedule from ongoing facility maintenance. Six optional motorized zoom lenses span throw ratios from 0.53:1 to 7.51:1, and motorized focus, zoom, and lens shift with memory storage let integrators dial in precise geometry without physical access after commissioning. Roll-free installation and ProAssist software support extend placement flexibility further.

For AV integration, the HDBaseT input and output carry uncompressed full HD video, audio, Ethernet, and control signals over a single cable run, simplifying infrastructure in multi-projector arrays. Native support for Crestron, Extron, AMX, and PJLink control systems, along with competitor command compatibility, means the XP-A155U-W drops into existing control infrastructure without reprogramming. The white cabinet version suits environments where projector visibility is a design consideration.

View full details

Specifications

Display
Display Technology
1.0" LCD w/ MLA
Aspect Ratio
16:10 (Supports 4:3, 16:9, 21:9)
Native Resolution
WUXGA 1920x1200
Maximum Resolution
4K 4096x2160
Brightness (Typical)
14,000 Lumens
Brightness (Maximum)
15,000 Center Lumens
Contrast Ratio
3,000,000:1 (with Dynamic Contrast)
Color Processing
10-bit (approx. 1.07 billion colors)
Optical
Light Source Life
20,000 hours
Projection Distance
2.17 to 261.9 ft. / 0.67 to 79.8m
Supported Screen Size (Maximum)
61 to 500 in. / 1.5 to 12.7m
Projector Angle
3.1 to 28.2 deg tele / 5.7 to 31.5 deg wide
Lens Zoom
Motorized
Lens Focus
Motorized
Lens Adjustment
Motorized focus, zoom, horizontal/vertical shift, light shutter; lens memory stores shift/zoom/focus settings
Optional Lenses
XP-51ZL Throw Ratio
0.53-0.65:1; F=1.94 to 2.20, f=12.0 to 14.6mm
XP-52ZL Throw Ratio
0.65-0.87:1; F=1.84 to 2.25, f=14.4 to 19.1mm
XP-53ZL Throw Ratio
0.86-1.25:1; F=1.8 to 2.24, f=19.0 to 27.6mm
XP-54ZL Throw Ratio
1.24-2.01:1; F=1.8 to 2.24, f=27.7 to 44.9mm
XP-55ZL Throw Ratio
1.98-3.95:1; F=1.84 to 2.58, f=43.8 to 87.2mm
XP-56ZL Throw Ratio
3.95-7.51:1; F=1.85 to 2.41, f=86.2 to 164.8mm
Dimensions
Product Width
23.6"
Product Length
19.3"
Product Height
9.4"
Weight
Product Weight
63.3 lbs
Package Weight
74.9 lbs
Included Items
Remote Control
RMT-PJ40
Documentation
Quick Guide, Important Info
Accessories
Lens Cap, Security Sticker, Lens Anti-Theft Screw
Identifiers
Color
White
