Shure ADX5BP-TA3 Dual Ta3 Back Plate For Adx5D
Shure ADX5BP-TA3 Dual Ta3 Back Plate For Adx5D
SoundPro Item: 123818 | Part Number: ADX5BP-TA3
Usually ships in 5-7 business days
- TA3 backplate for the Axient Digital ADX5D dual-channel portable wireless receiver
- 2 x TA3 analog outputs
- Output 1 can be configured as two-channel AES3 digital outputs (Output 2 is disabled when AES3 is selected)
- 1 x 4-pin power connector for battery-sled use
- 1 x Hirose 4-pin power connector
- Input voltage: 6 to 18 VDC
- Captive Phillips-head screws provide simple installation to the ADX5D
- Compatible with the Shure WA451 audio cable (TA3F-to-XLR)

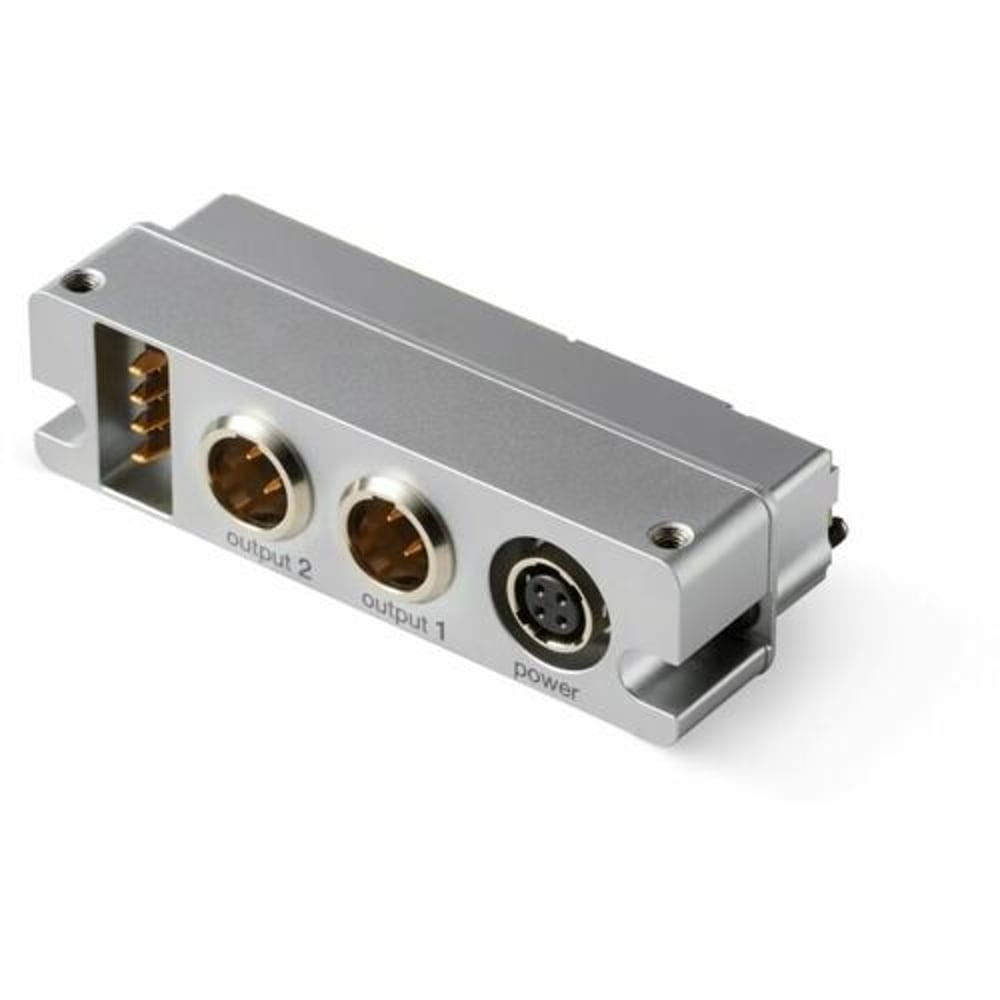

The Shure ADX5BP-TA3 Backplate attaches easily to your ADX5D Axient Digital wireless receiver to provide standalone connectivity on standard cameras without a slot mount or in audio bags-using a battery sled or a battery distribution systems (BDS). It features two TA3 (mini 3-pin XLR) output connectors for analog or AES3 audio, a 4-pin locking Hirose power input connector, and a proprietary 4-pin connector for mating with a Shure battery sled. Captive Phillips-head screws provide simple installation to the ADX5D without worrying about losing the screws.
