• Shure ANI4IN (XLR) Audio Network Interface
1 1

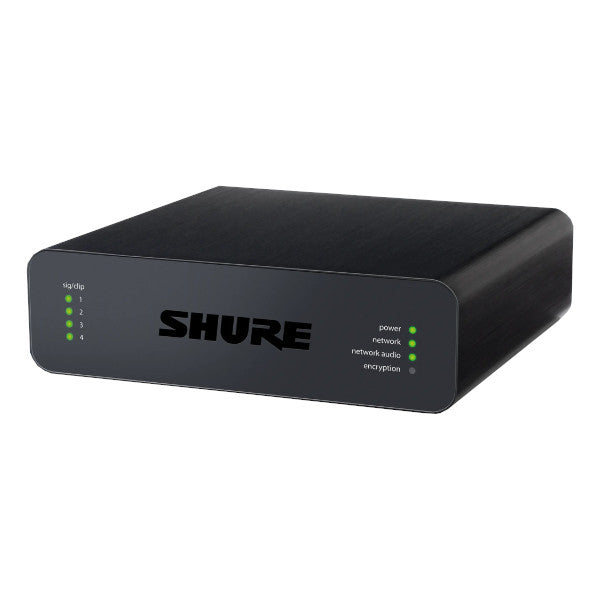

Shure ANI4IN (XLR) Audio Network Interface

Shure ANI4IN (XLR) Audio Network Interface

SoundPro Item: 81506 | Part Number: ANI4IN-XLR

$686.00
$961.00 $686.00
Your Price Sold out
MSRP: $961.00 | MAP: $686.00

Usually ships in 5-7 business days

  • Single Ethernet port carries Dante audio, power (PoE – class 0)
  • LEDs indicate device status and audio signal
  • Control strings for third-party preset controllers including Crestron® and AMX®
  • 4 Band C/S PEQ on every channel
  • Provides channel summing to combine input signals and send them over a single Dante™ channel
  • Browser-based software control for all device parameters, per input channel
  • 1/3 Rack unit wide
  • Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
  • Available in block connector (audio + logic) and standard XLR variations
  • Converts up to four line / mic analog signals onto a Dante network for easy audio routing and browser-based control
Log in or register for YOUR best price

High-quality sound can bring more clarity to the conference, but not without high quality conversion. ANI interfaces with Dante™ make it easy to connect analog microphones to the network. Paired with analog microphones, ANI keeps the conversation on track.

View full details
  • Inputs
    • ANI4IN-XLR: (4) XLR connector
    • ANI4IN-BLOCK: (4) 6-pin block connector
  • Phantom Power (selectable per channel)+48V
  • Logic Connections (Block connectors only) Sent as Ethernet command strings: LED(+5 V) , Switch
  • PolarityNon-inverting, any input to any output
  • Output(1) RJ45
  • Power RequirementsPower over Ethernet (PoE), Class 0
  • Power Consumption10W, maximum
  • Weight672 g (1.5 lbs)
  • Dimensions (HxWxD) 4x14x12.8 cm (1.6x5.5x5”)
  • Control ApplicationHTML5 Browser-based
  • Operating Temperature Range−6.7°C (20°F) to 40°C (104°F)
  • Storage Temperature Range−29°C (-20°F) to 74°C (165°F)
  • Frequency Response20 to 20,000 Hz
  • Dante Digital Output
    • Channel Count: 4
    • Sampling Rate: 48 kHz
    • Bit Depth: 24
  • Latency0.35 ms (Does not include Dante latency)
  • Analog Gain Range (Adjustable in 3 dB steps )51 dB
  • Dynamic Range (Analog-to-Dante)20 Hz to 20 kHz, A-weighted, typical: 113 dB
  • Equivalent Input Noise
    • 20 Hz to 20 kHz, A-weighted, in put terminated with 150Ω
    • Analog Gain Setting= +0 dB: -93 dBV
    • Analog Gain Setting= +27 dB: -119 dBV
    • Analog Gain Setting= +51 dB: -130 dBV
  • Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain)<0.05%
  • Common Mode Rejection Ratio (150Ω balanced source @ 1 kHz)>70 dB
  • Impedance5 kΩ
  • Input ConfigurationActive Balanced
  • Input Clipping Level
    • Analog Gain Setting= +0 dB: +20 dBV
    • Analog Gain Setting= +27 dB: -7 dBV
    • Analog Gain Setting= +51 dB: -31 dBV
  • Built-in Digital Signal Processing
    • Per Channel: Equalizer (4-band Parametric), Mute, , Gain ( 140 dB range)
    • System: Audio Summing
  • Cable RequirementsCat 5e or higher (shielded cable recommended)
