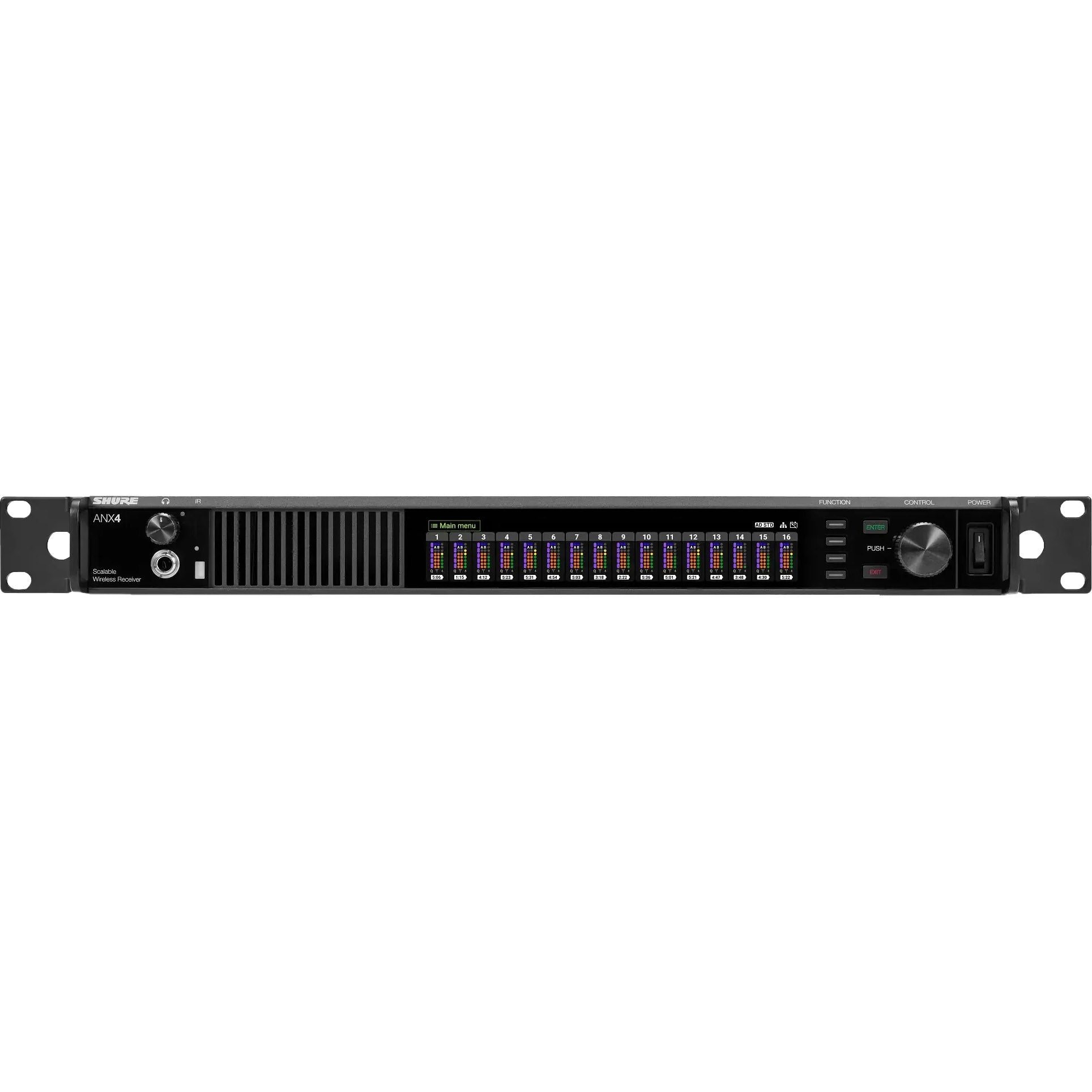

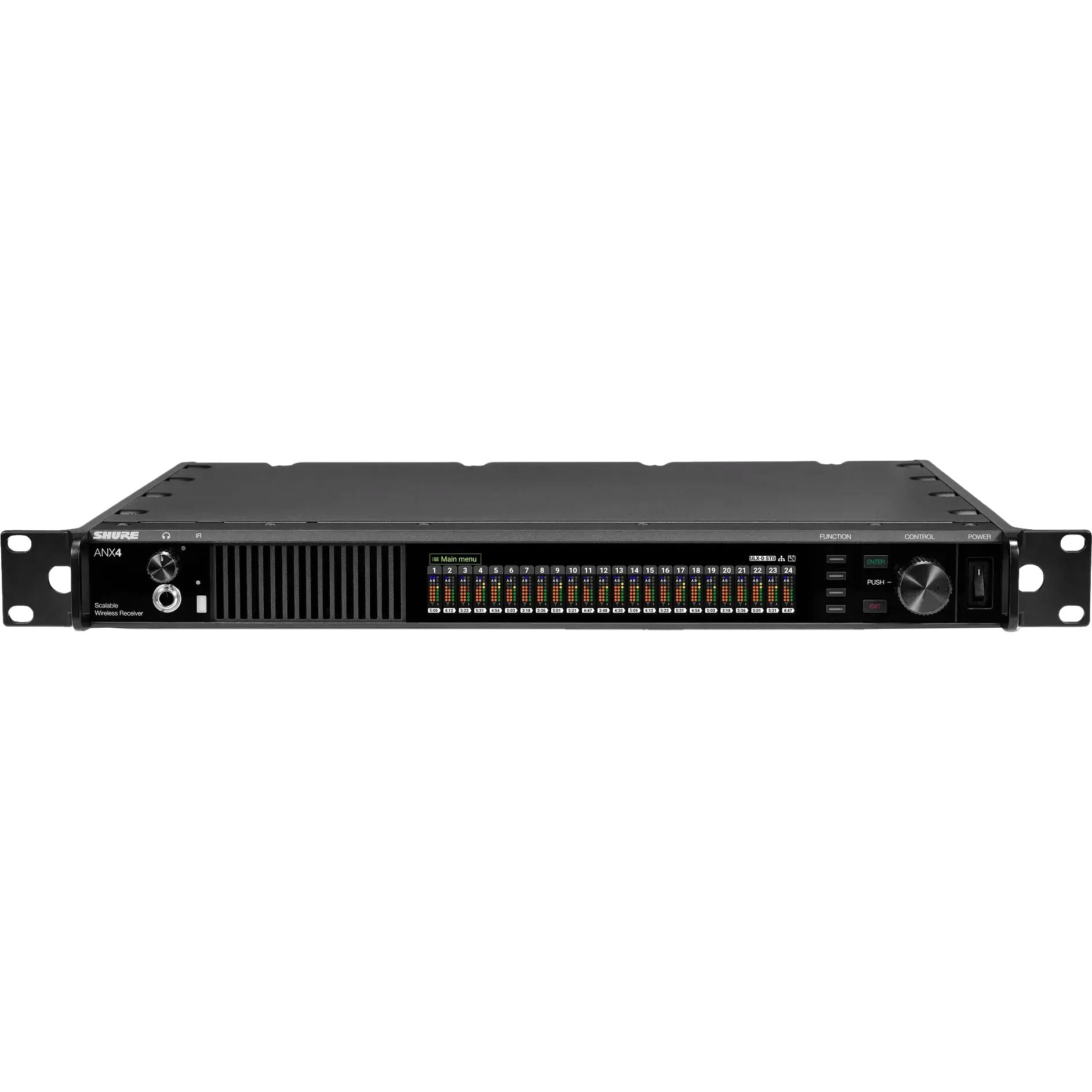

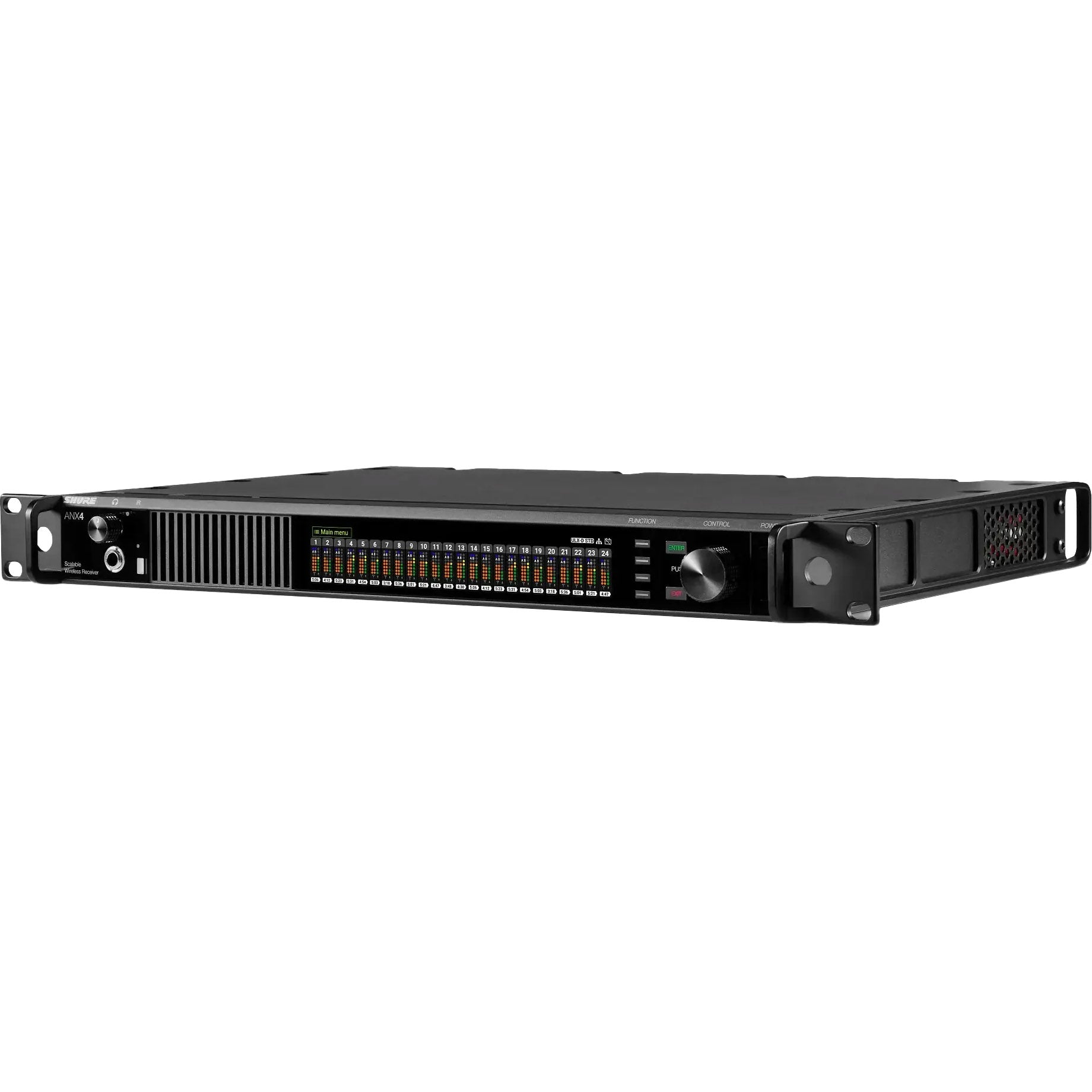

Shure ANX4 Scalable Wireless Receiver for Axient Digital and ULX-D Systems | Power: AC

Shure ANX4 Scalable Wireless Receiver for Axient Digital and ULX-D Systems | Power: AC

SoundPro Item: 152205 | Part Number: ANX4

$7,442.00
$9,300.00 $7,442.00
Your Price Sold out
MSRP: $9,300.00 | MAP: $7,442.00

Usually ships in 5-7 business days

  • Scalable Wireless Receiver for use with Axient Digital and ULX-D wireless systems
  • Receives up to 16 channels of Axient Digital or 24 channels of ULX-D in a single rack space
  • Channel licenses are perpetual licenses, available in single- and four-channel options (sold separately)
  • Purchased channel licenses can be activated in one ANX4 and later removed and activated in another ANX4, as needed, conveniently via ShureCloud user account
  • Wide tuning range covers 174 MHz to 2 GHz, covering all Axient Digital and ULX-D options (except for the ULX-D 902 MHz band)
  • All Axient Digital or ULX-D features included
  • Large, 6.6-inch front panel color display
  • Five-segment Channel Quality meter displays RF signal-to-noise
  • 1/4-inch front-panel headphone connector for monitoring with Dante Browse (for both Axient Digital and ULX-D)
  • Streamlined and cost-saving antenna setup for large-scale wireless deployment scenarios

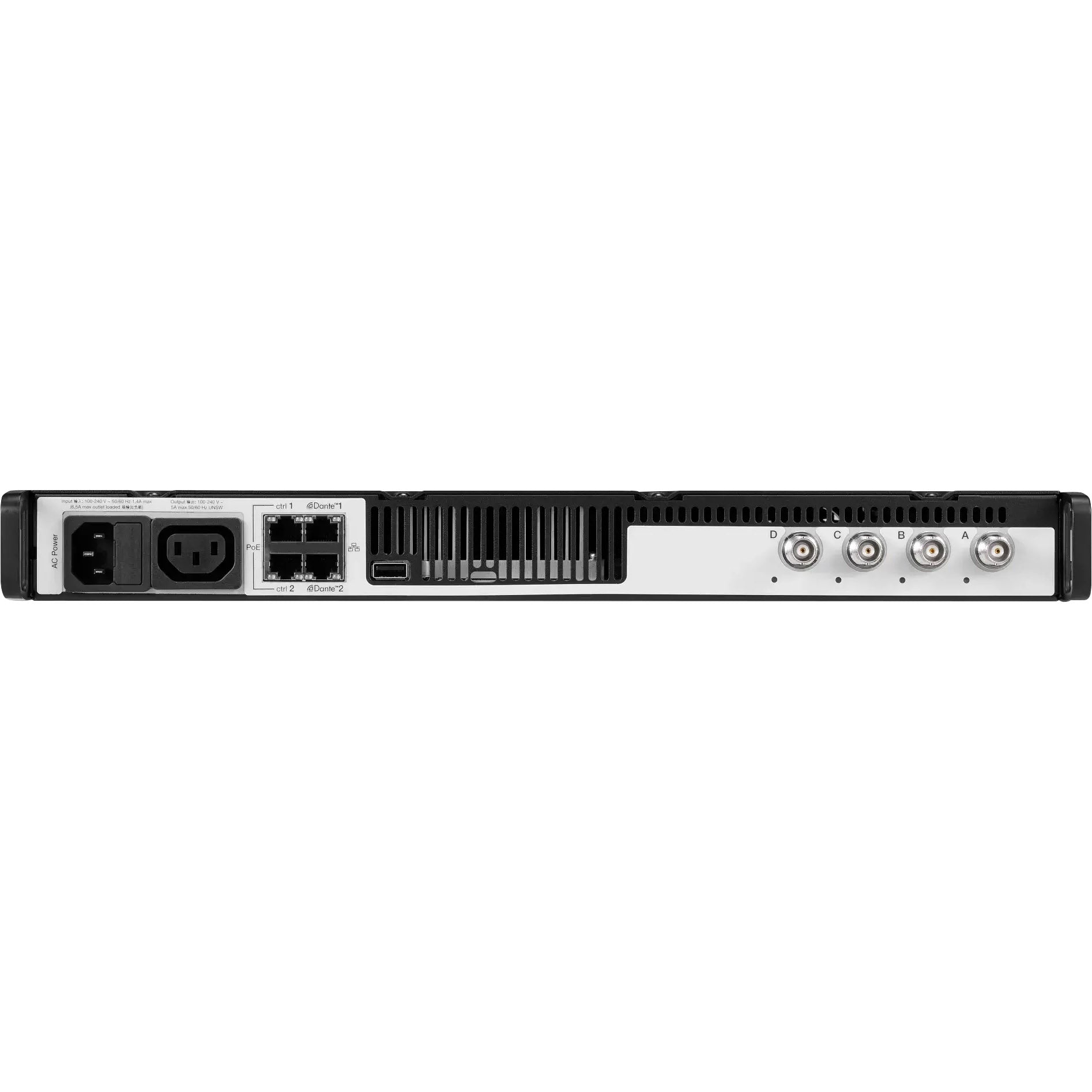

  • 4 x Ethernet ports for network control and Dante/AES67 digital output options
  • 4 x coaxial RF antenna input connectors support multiple frequency bands and provides greater coverage for complex setups
  • Networked control with Shure Wireless Workbench® for extended and enhanced RF monitoring and management
  • DC module version available to support redundant power
Log in or register for YOUR best price
The ultimate high-tier, high channel count wireless receiver, Shure ANX4 receives up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space. Delivering maximum flexibility, ANX4 does not ship preconfigured with active wireless channels, allowing you the opportunity to purchase channels in single- and four-channel increments and activate the exact number of channels you need. Licenses can be activated in one ANX4 and later removed and activated in a different ANX4 as needs change. ANX4 channel licenses are perpetual licenses, not subscription-based licenses, and can be purchased through the same authorized suppliers ANX4 hardware units are sold and managed via your ShureCloud user account. All the exceptional features found in award-winning Axient Digital and ULX-D receivers that have made them standards on stages, in facilities, on tour, and on location throughout the world are available in the ANX4**. Whether you operate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximizes your budget, rack space, and rack weight in delivering large wireless audio channel counts in a single rack design. What’s more, this 1RU format also enables streamlined antenna configurations for large channel count environments.
*ANX4 receiver does not ship preconfigured with active wireless channels. Channel licenses are sold separately and required for operation.
**System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems at one time).

View full details

Specifications

Dimensions
1.7" x 19.0" x 11.3" (44 mm x 482 mm x 286 mm)
Weight
8.6 lb (3.9 kg)
Housing
Steel; extruded aluminum (Case Top: Aluminum)
Thermal Power Dissipation
Maximum: 61.3 W (209.3 BTU/hr) Idle: 49.2 W (167.9 BTU/hr)
Power Requirements
AC: 100 to 240 V AC, 50-60 Hz, 1.4 A max
Fuse
T5A
Operating Temperature Range
-18°C (0°F) to 50°C (122°F)
Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
RF Input
Spurious Rejection
>80 dB, typical
Connector Type
BNC
Impedance
50 Ω
Configuration
Unbalanced, passive
Bias Voltage
12 to 13.5 V DC, 150 mA maximum, per antenna. Switchable on-off.
Insertion Loss
0 dB, typical
RF
RF Carrier Frequency Range
174-2000 MHz
Working Range
100 m (330 ft)(Actual range depends on RF signal absorption, reflection, and interference.)
Gain Adjustment Range
-18 to +42 dB in 1 dB steps (plus Mute setting)
RF Tuning Step Size
25 kHz, varies by region
Image Rejection
> 90 dB, typical
RF Sensitivity
ULX-D: -95 dBm at 10-5 BER
Axient Digital: -93.5 dBm at 10-5 BER
Audio
Latency
ULX-D Standard: < 2.9 ms
ULX-D High Density: < 3.2 ms
Axient Digital Standard: < 2.1 ms
Axient Digital High Density: < 3.0 ms
Audio Frequency Response
20-20 kHz (±1 dB)
Audio Dynamic Range (Typical, 20 Hz to 20 kHz, System Gain @ +12 dB)
124 dB A-weighted
Total Harmonic Distortion (-6 dBFS, 1 kHz, System Gain @ +12 dB)
< 0.1%
System Audio Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
