Specifications
Electrical
Sensitivity (at 1kHz, Open Circuit voltage)
–48.0 dBV/Pa (4.0 mV)
Max. SPL (1kHz at 1% THD, 1kΩ load)
144 dB
Clipping Level (1kHz at 0.25% THD, 1kΩ load)
1.0 dBV (1.26 V)
Power Requirements
11–52 VDC phantom power (IEC-61938), 3.6 mA
Audio
Polar Pattern
Cardioid
Frequency Response
20 Hz - 16 kHz
Output Impedance
179 Ω
Signal-to-Noise Ratio (referenced at 94 Db SPL at 1kHz)
64 dB
Dynamic Range (at 1kHz, 1kΩ load)
114 dB
Self Noise (typical, Equivalent SPL, A-weighted)
30 dB SPL
Connectivity
Connector
3-pin professional audio (XLR), male, balanced
Included Items

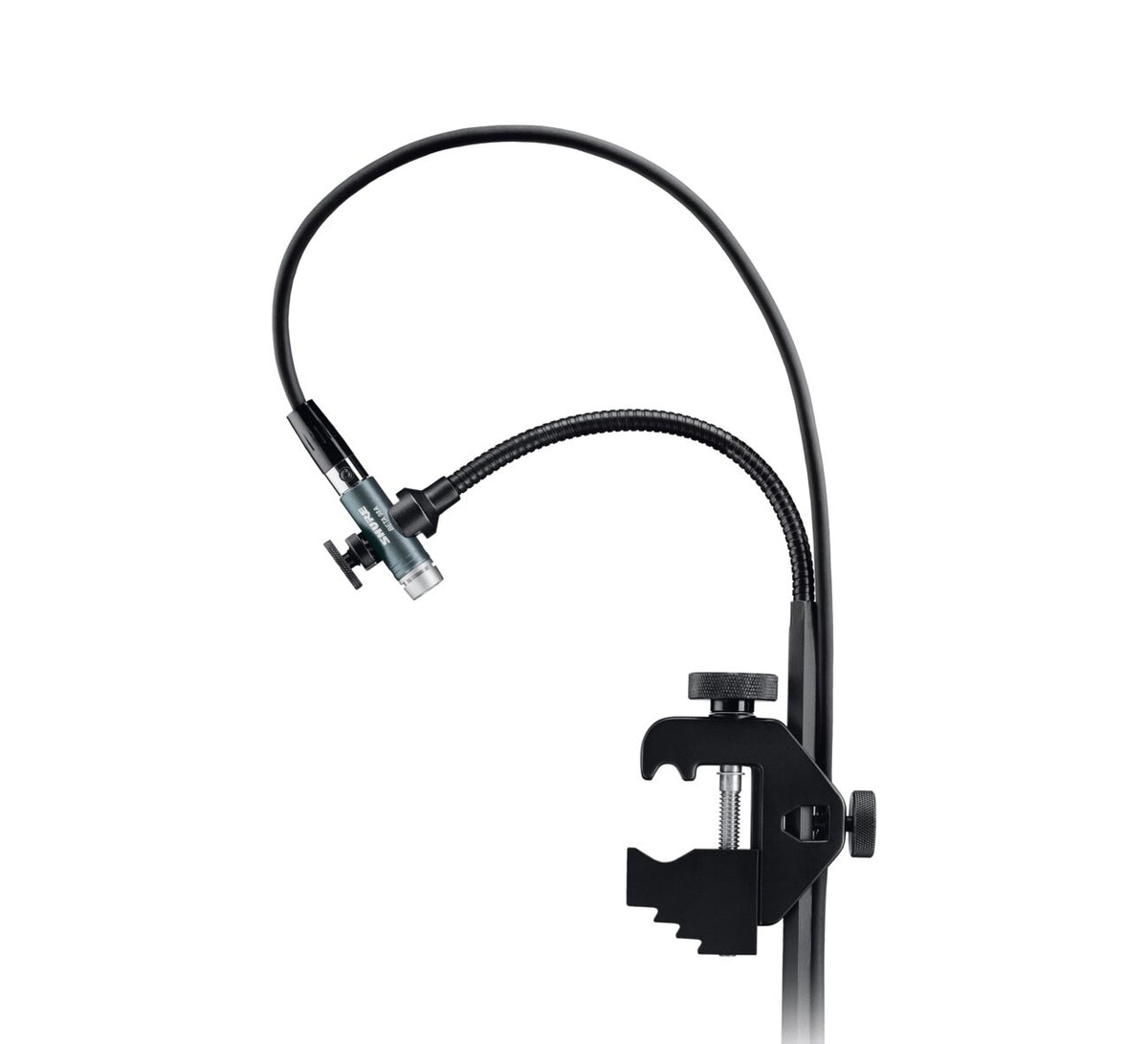

Beta 98AD/C Miniature Cardioid Condenser Drum Microphone
1x
Beta 98 Drum Mount
1x
In-line Preamplifier (1 piece)
1x
Snap-fit Windscreen
1x
4.6 M (15 ft.) Cable
1x
Zippered Carrying Bag
1x
Shipping
Weight
0.6 oz
General
Transducer Type
Condenser
Polarity
positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
