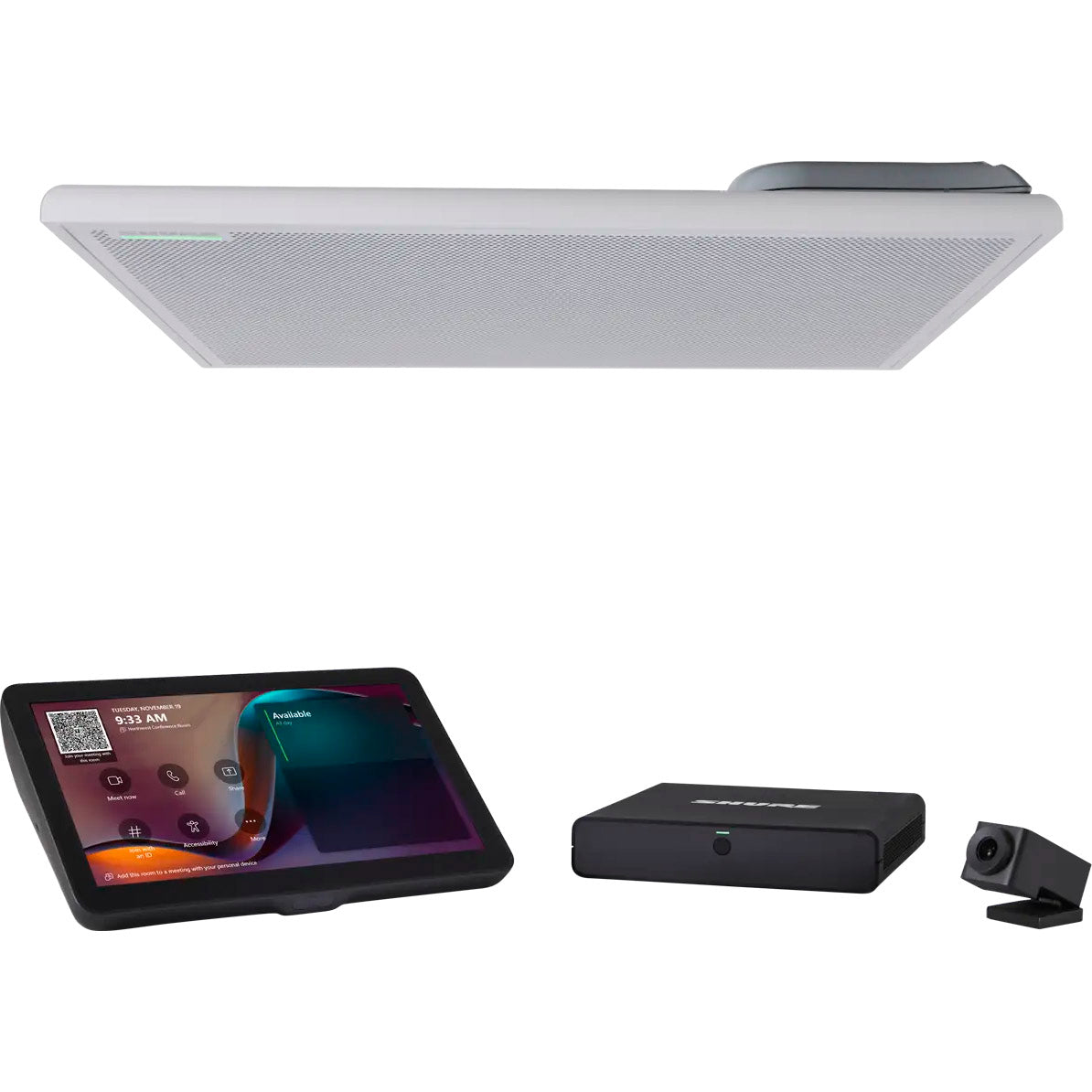

Shure IntelliMix Rooms Kit | Small (IMXRK30)

Shure IntelliMix Rooms Kit | Small (IMXRK30)

SoundPro Item: 152487 | Part Number: IMXRK30-V

$5,500.00
$5,500.00 $5,500.00
Your Price Sold out
MSRP: $5,500.00 | MAP: $5,500.00

Usually ships in 5-7 business days

  • IntelliMix Room Kits feature zero-touch provisioning including support for Windows Autopilot with Autologin for Teams Rooms.
  • Shure's IntelliMix Room® DSP enhances speech and removes distracting sounds ensuring every word is heard clearly and transcribed accurately with Microsoft 365 Copilot.
  • The MXA902 ceiling array and loudspeaker provides unmatched acoustic performance and consistent full room coverage for clear, intelligible speech capture and reproduction.
  • AI-powered cameras from Huddly automatically frame participants and optimize the video experience for visually engaging meetings.
  • Remote and global management streamlines IT workflows via ShureCloud, Teams Admin Center, and Teams Rooms Pro Management Portal.
  • Download Specifications
Log in or register for YOUR best price

Boost collaboration with simple and secure Microsoft Teams Rooms conferencing kits. With zero-touch provisioning, you can effortlessly deliver high-quality audio and video experiences in your small, medium, and large meeting and collaboration spaces, up to 33 x 18 ft (10 x 5.5 m). The component-based systems provide everything you need - automatically. No programming or adjusting of audio and video settings is required. All kits include a powerful Windows-based Teams Rooms compute with Shure's premium audio signal processing, an intuitive touch panel, a superior all-in-one ceiling array microphone + loudspeaker, and intelligent, high-resolution video.

What's in the box?

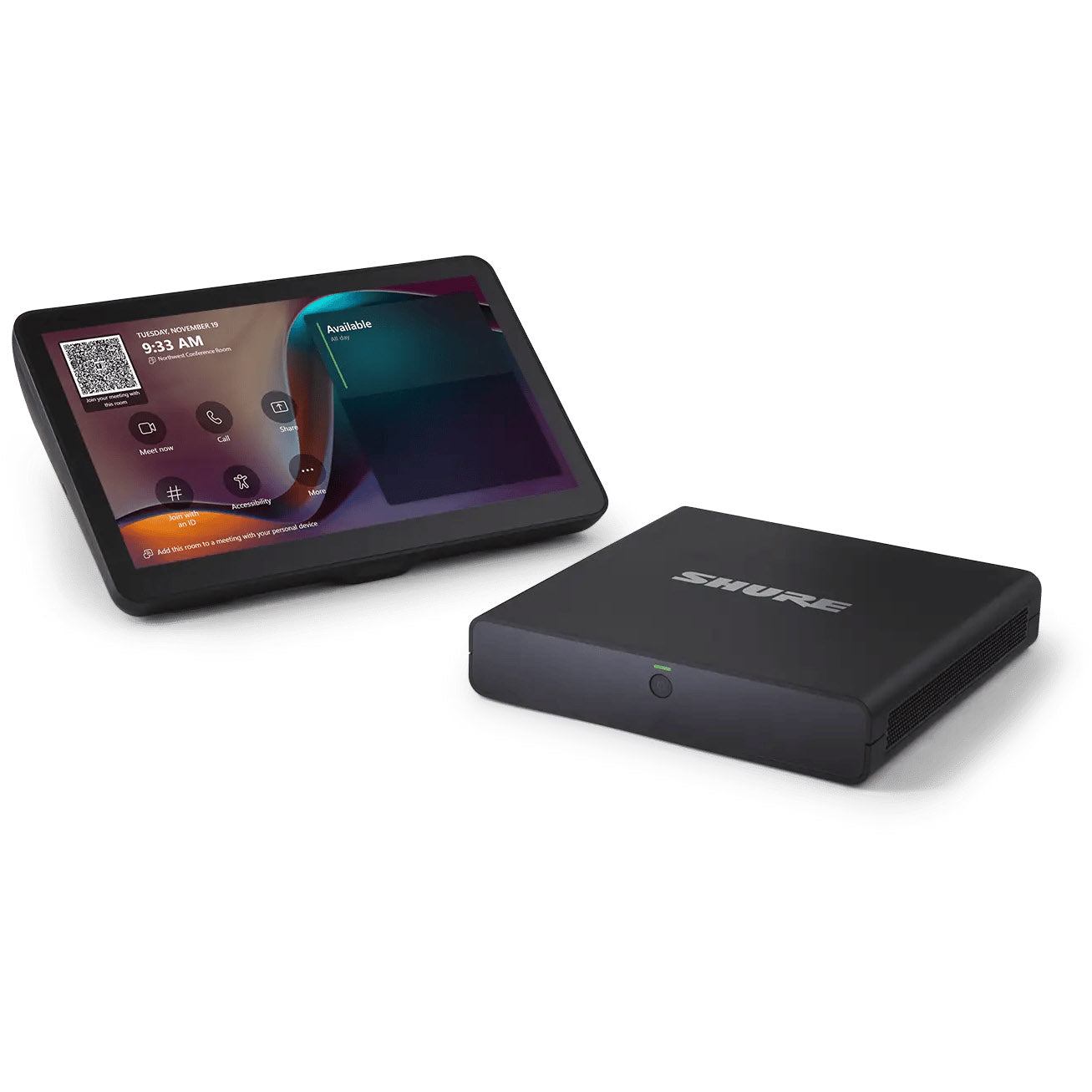

1x IntelliMix Foundation System, includes compute with pre-installed IntelliMix Room DSP Software, touch panel, network switch, cables and accessories for power and connectivity
1x MXA902 Integrated Ceiling Array Microphone + Loudspeaker
1x Huddly IQ USB Camera



View full details

Specifications

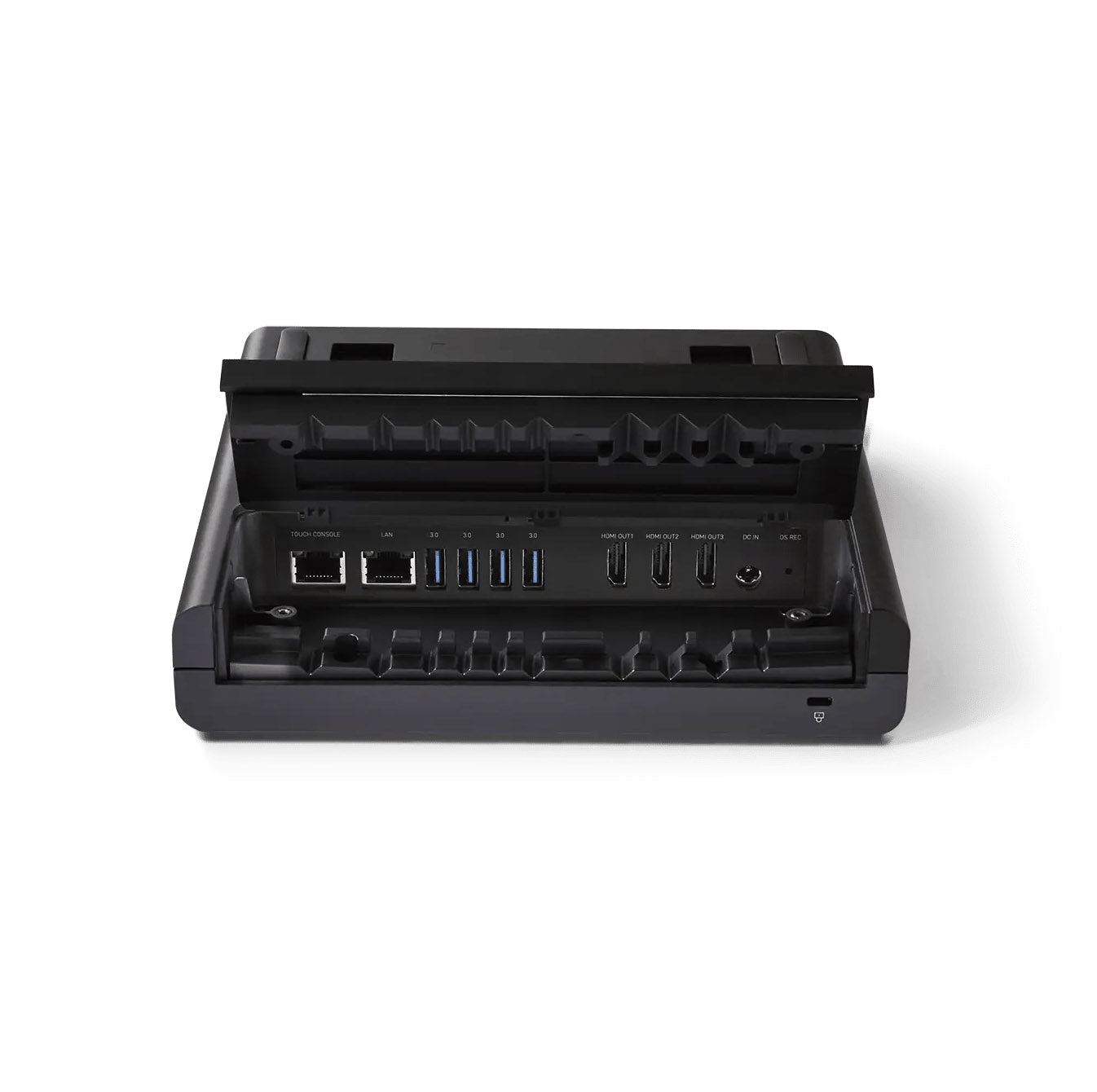

Intellimix Foundation Compute
CPU
12th generation Intel Core i5 processor
Memory
16 GB DDR4
Storage
256 GB
Graphics
Intel UHD Graphics for 12th generation Intel processors
Operating System
Windows 11 IoT Enterprise (x64)
Software
Microsoft Teams Rooms,IntelliMix Room (8-channel)
RJ45 (LAN)
1
RJ45 (To Touch Panel)
1
HDMI Out
3
USB-A 3.0
4
Power (DC In)
1
Kensington Lock
1
Power Supply
FSP120-ABBN3
Power Consumption
120 W max
VESA Mounting Bracket Set
1 (includes wall bracket,screwdriver,KA3 x 30 screws (4x),expansion screws (4x))
Power Adapter
1
Power Cord
3 or 4 x 6ft (North America,Europe,Asia variants)
HDMI Cable
2 x 10ft
Ethernet Cables
1 x 3ft,1 x 10ft,2 x 25ft,1 x 50ft

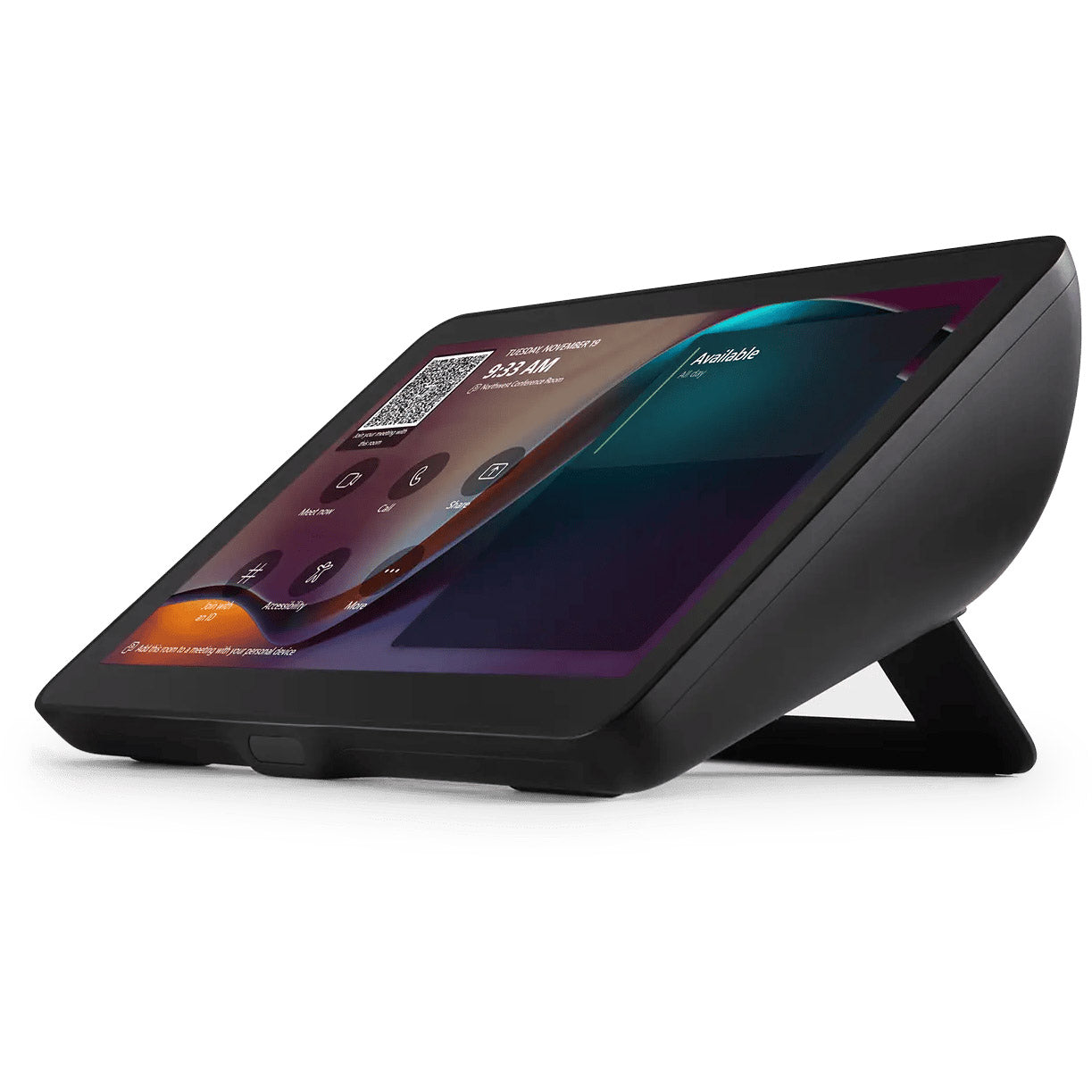

Intellimix Touch Panel
Resolution
1920 x 1080
Frequency Refresh Rate
60 Hz
Motion Sensor
PIR sensor for automatic wake-up
RJ45 (To Compute)
1
USB-C (Content Sharing)
1
USB-A 2.0
1
Audio Out (3.5 mm)
1
Input Power
52V DC (0.49 A) via DisplayLink over Cat6
Power Consumption
13 W max
Cable Requirements for Compute to Touch Panel
Cat6 (shielded cable recommended)
Maximum Cable Length for Compute to Touch Panel
Shielded 200 ft (60.9 m),Unshielded 30 ft (9 m)
Network Switch
Model
S1600V2-6P-HPWR
Switching Capacity
12 Gbps
Forwarding Capacity
8.93 Mpps
Port Surge
6 kV
Fan
None
MTBF (Year)
88.6
MTTR (Hour)
1
GE (PoE+)
4
GE
1
SFP
1
USB 3.0 to Gigabit Ethernet Network Adapter
RJ45 (10/100/1000 Mbps)
1
USB 3.0
1

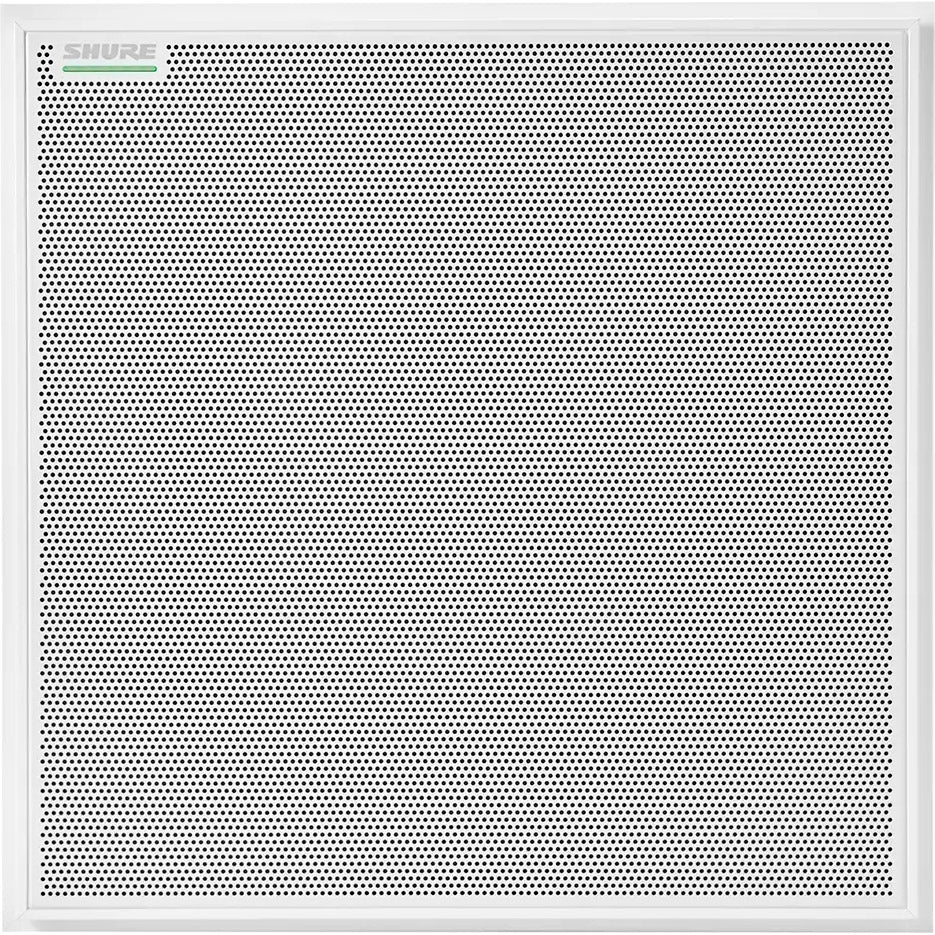

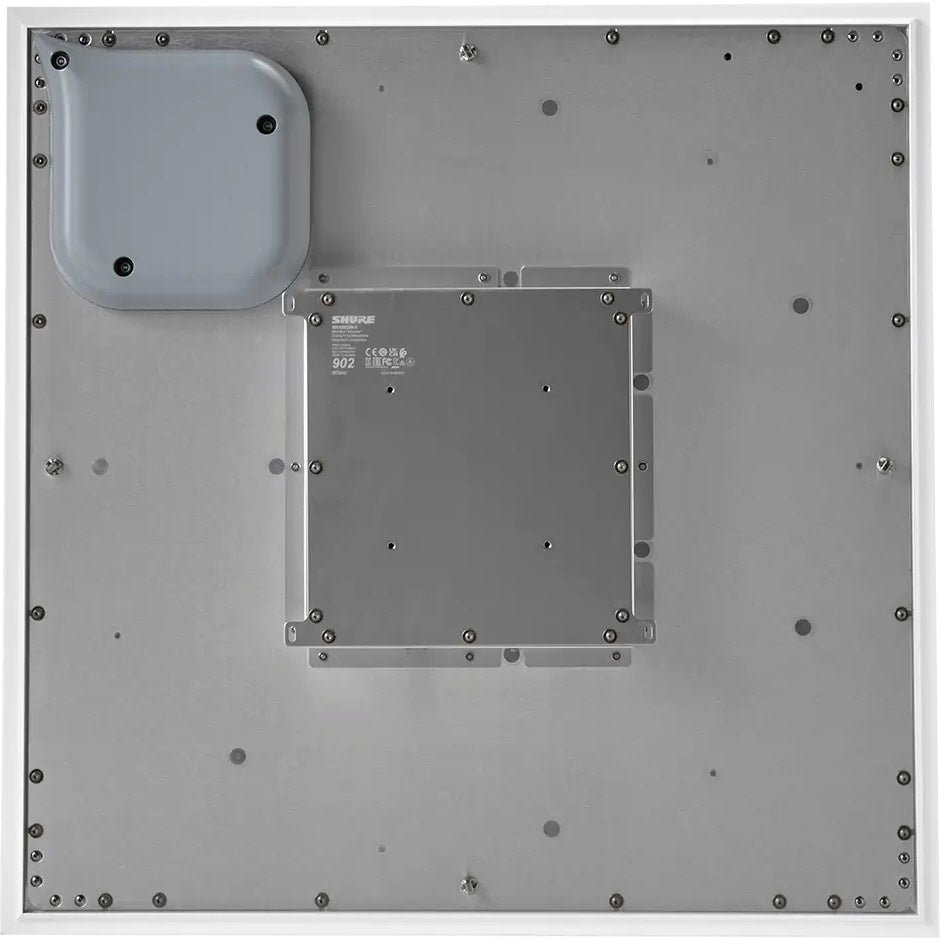

MXA902 Integrated Ceiling Array Microphone/Loudspeaker
Coverage Area Size
20 x 20 ft (6.1 x 6.1 m)
Coverage Type
Single-zone automatic
Power Requirements
Power over Ethernet Plus (PoE+),Class 4
Power Consumption
24 W max
Control Software
Designer
Cable Requirements
Cat5e or higher (shielded cable recommended)
Connector Type
RJ45
Plenum Rating
UL2043 (suitable for air handling spaces)
Dust Protection
IEC 60529 IP5X dust protected
Operating Temperature Range
-6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Microphone Frequency Response
125 Hz to 20 kHz
Microphone Digital Output
AES67 or Dante (1 channel,48 kHz,24-bit)
Microphone Sensitivity
-1.74 dBFS/Pa @ 1 kHz
Microphone Maximum SPL
95.74 dB SPL
Microphone Signal-to-Noise Ratio
75.76 dB(A)
Microphone Latency
26.6 ms (excluding Dante)
Microphone Self Noise
18.24 dB SPL-A
Microphone Dynamic Range
77.5 dB
Microphone DSP
Automatic mixing,AEC,noise reduction,automatic gain control,compressor,delay,4-band parametric EQ,mute,gain (140 dB range)
Acoustic Echo Cancellation Tail Length
Up to 250 ms
Loudspeaker Digital Input
AES67 or Dante (2 channels)
Loudspeaker Frequency Range
120 Hz to 20 kHz (-10 dB)
Loudspeaker Maximum Output
86 dB SPL (pink noise),88 dB SPL (1 kHz tone)
Loudspeaker Coverage Angle
80°
Loudspeaker DSP
Delay,compressor,signal generator,4-band parametric EQ
Loudspeaker Latency
6.3 ms (excluding Dante)
Note
Measured on-axis at 6 ft (1.83 m)
Huddly IQ
Sensor
12 Megapixels 1/2.3" CMOS sensor
Resolutions @ 30 fps
1080p Full HD,720p HD
Field of View
Horizontal 120°,Vertical 90°,Diagonal 150°
Zoom
Up to 4x digital zoom
USB-C (power and data)
1 (SuperSpeed USB 3.0)
Dimensions
1.6 x 2.82 x 1.4 in (40 x 72 x 35 mm)
Weight
0.26 lbs (120 g)
