Specifications
Dimensions
Dimensions
1.9" max body diameter, 7.5" long
Electrical
Dynamic Range 48 Vdc Phantom, 5.6 Ma
2500 ohms load 130 dB, 1000 ohms load 130 dB
Audio
Polar Patterns (selectable)
Cardioid, Supercardioid
Frequency Response
50 Hz - 20 kHz
Output Impedance
150 ohms (actual)
Phantom Power
48 Vdc ± 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3
Sensitivity (typical; at 1000 Hz; 1 Pa = 94 Db SPL)
-51 dBV/Pa
Self-noise (typical, Equivalent SPL; A-weighted, IEC 651)
22 dB
Maximum SPL @ 1000 Hz
2500 ohms load 152 dB, 1000 ohms load 152 dB
Signal to Noise Ratio
72 dB
Connectivity
Output Clipping Level
2500 ohms load 6.7 dBV, 1000 ohms load 6.0 dBV
Included Items

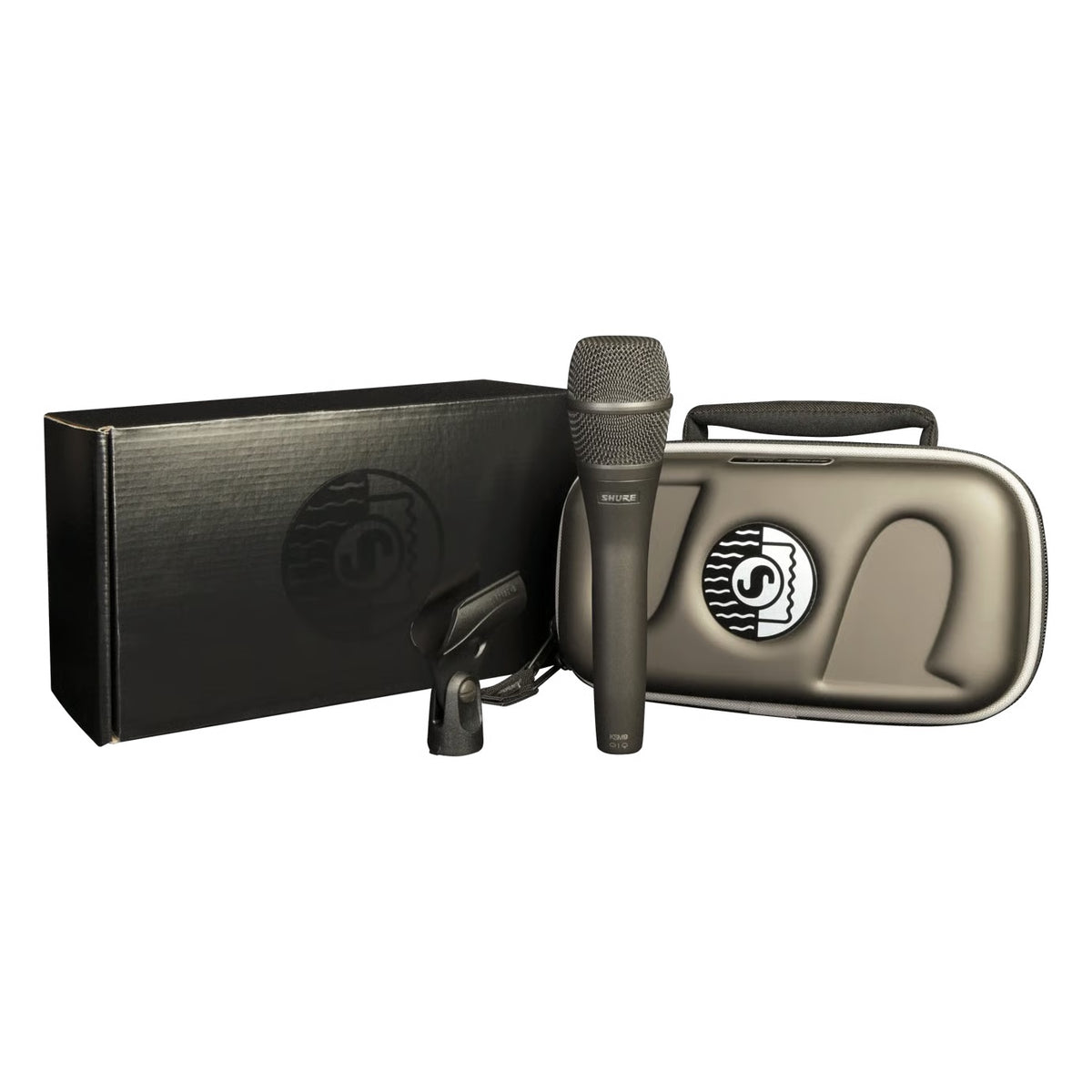

KSM9 Microphone
1x
95A2050 5/8" to 3/8" Thread Adapter
1x
A25E Stand Adapter
1x
Shipping
Weight
300 grams (10.6 oz)
General
Transducer Type
Condenser
