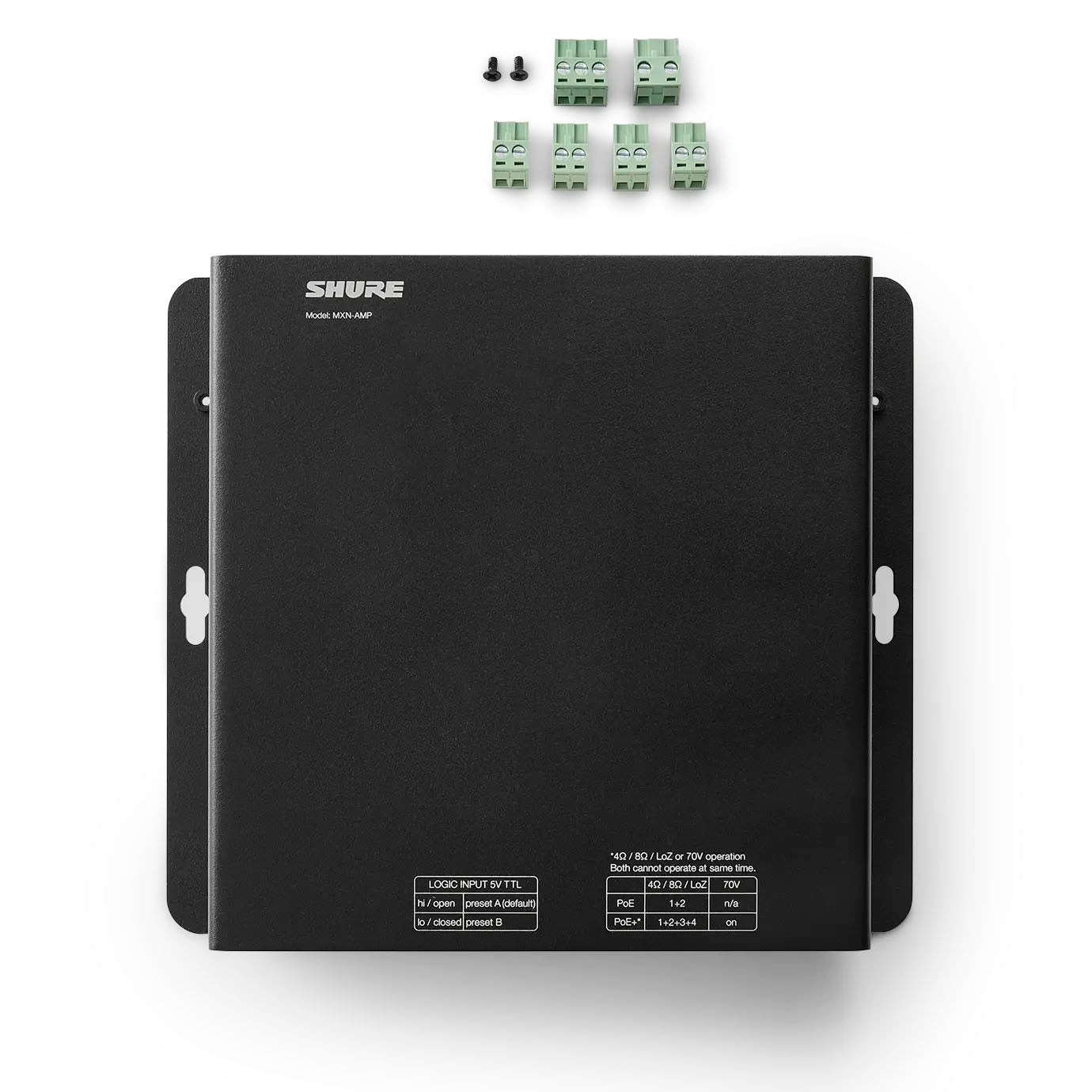

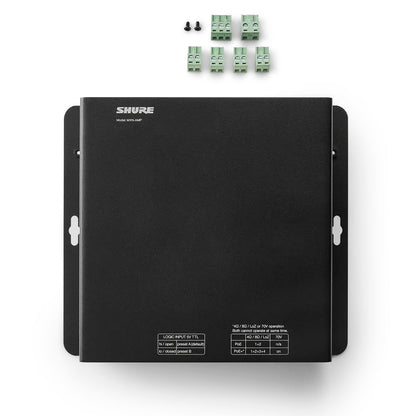

Shure MXN-AMP PoE+ Powered Multichannel Amplifier
Shure MXN-AMP PoE+ Powered Multichannel Amplifier
SoundPro Item: 148225 | Part Number: MXN-AMP
Usually ships in 5-7 business days
- Can power up to 4 MXN or MXP loudspeakers in 8 ohm mode, or up to 8 MXP-5/MXP-6 loudspeakers in 70V mode.
- Rated at 14.5 watts of combined output power.
- Four Dante inputs and four Dante outputs.
- Unbalanced stereo analog audio input.
- Logic input (switches between presets 1 and 2 as defined in web UI).
- Onboard Shure DSP utilities include EQ, delay, limiter, and signal/tone generator.
- Presets for all MXP-series loudspeakers ensure optimal audio performance. Custom presets can be defined in the MXN-AMP control software.
- Can be rack mounted with available CRT-1 rack tray.
- Can also be wall or ceiling mounted. (Note: Shure recommends the use of an additional safety tether for overhead components).
- UL 2043 Plenum rated.
- Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
- Shure Audio Encryption keeps audio content protected between the MXN-AMP and other Shure Microflex® Ecosystem devices in the room.
Multichannel PoE+ powered amplifier designed for speech and program audio reproduction in meeting rooms. The Microflex® Conferencing amplifier is designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, DSP, and loudspeakers, they deliver room-filling sound, quick installation in a variety of room types, and the efficiency of a single-source solution.
- Power InputPower over Ethernet (PoE) or PoE+ over RJ45 (48 V = 25.5 W MAX)
- Weight2.43 Ibs (1.1kg)
- Product Dimensions7.95 x 7.01 x 1.57 in. (202 x 178 x 40 mm) L x W x H
- Amplifier ClassD

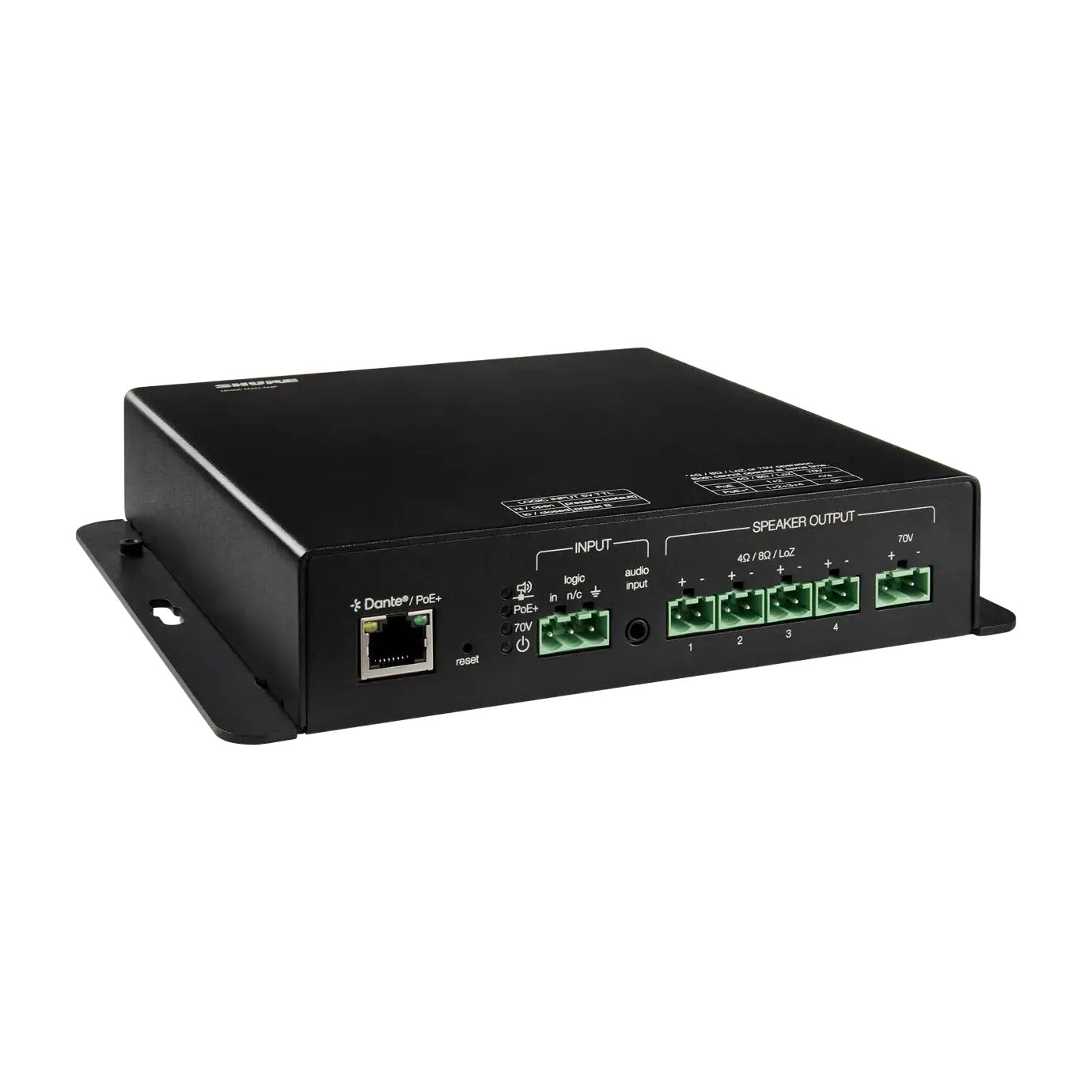

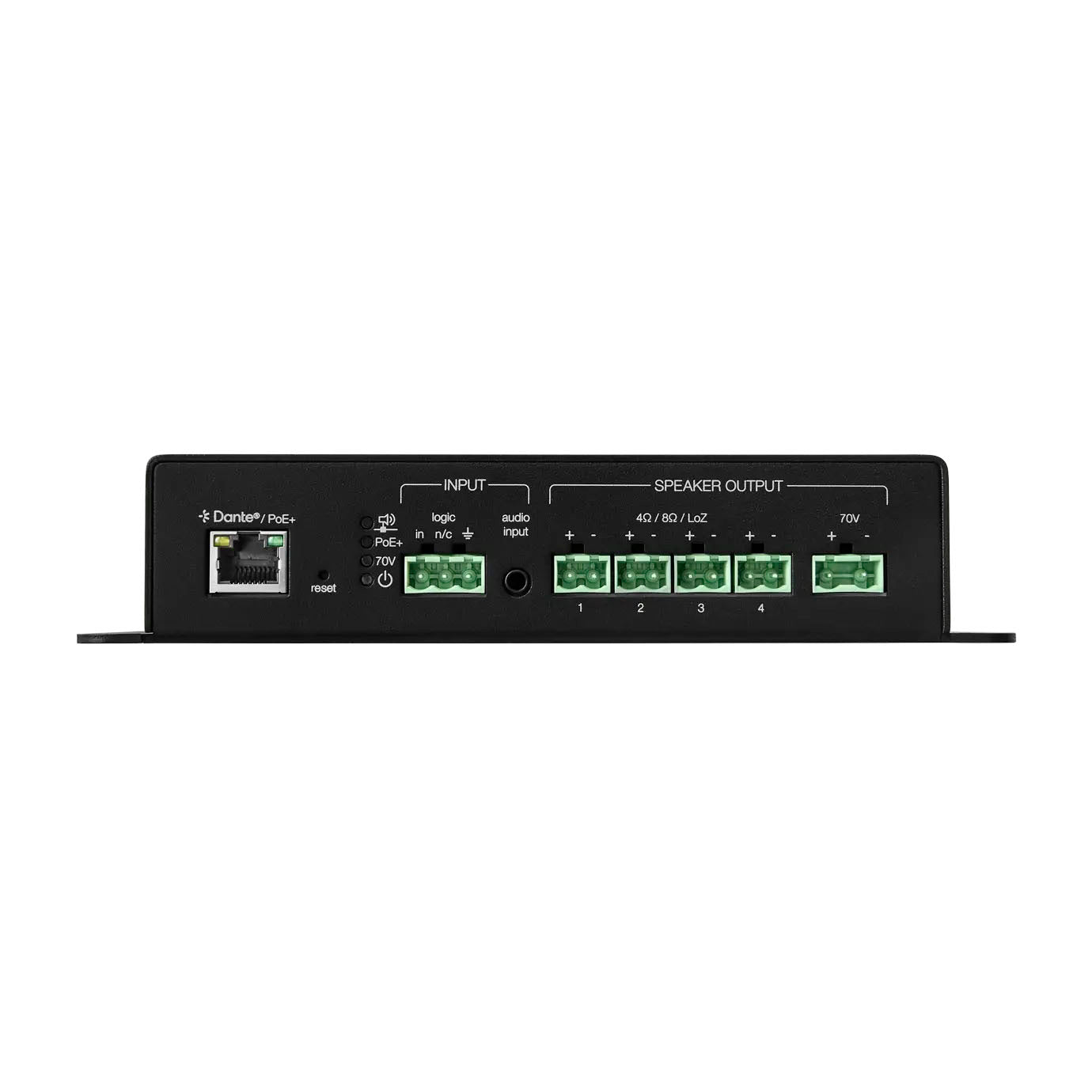

- Audio Inputs4 Dante in, 1 3.5 mm TRS connector with two audio line level inputs
- Control Input1 logic in
- Audio Outputs4 Dante output channels, 4 LoZ loudspeaker outputs, 1 70V loudspeaker output
- Frequency Response20 Hz to 20 kHz
- Sample Rate48 kHz
- Bit Depth24
- Latency(Analog to analog)2.2 ms typical, 2.5 ms max (add 1 ms for Dante)
- Signal-To-Noise Ratio110 dB max
- Output Level/Total Harmonic Distortion (THD) (at 1 kHz)THD less than 0.05% (0.01% typical)
- Power Consumption
- PoE: 12.95 W max
- PoE+: 25.5 W max
- Power RequirementsPoE (Class 0) or PoE+ (Class 4)
- Output Power per Channel
- LoZ Mode: 3.25W
- 70V Mode: 11.7W
- Operating Temperature Range-7 to 40°C (19.4 to 104°F)
- Storage Temperature Range-29 to 74°C (-20 to 165°F)
- Plenum RatingSuitable for use in air plenums per NEC section 300.22(c) and/or IMC section 602.
- Cable RequirementsCat 5e or higher (shielded cable recommended)
- Block Connector Type
- Logic Input: 3-pin connector, 0.2 in. (5.08mm) pitch, Dinkle 2ESDV-03P
- LoZ Output: 2-pin connector, 0.2 in. (5.08mm) pitch, Dinkle 2ESDV-02P
- 70V Output: 2-pin connector, 0.295 in. (7.5mm) pitch, Dinkle 7ESDV-02P
- Control SoftwareShure Designer
