Shure MXWAPX4=-Z10 Access Point Transceiver With 4-8 Channel Dante Audio

Shure MXWAPX4=-Z10 Access Point Transceiver With 4-8 Channel Dante Audio

SoundPro Item: 150802 | Part Number: MXWAPX4=-Z10

Regular price $2,970.00
Regular price $3,713.00 Sale price $2,970.00
Your Price Sold out
MSRP: $3,713.00 | MAP: $2,970.00

Usually ships in 5-7 business days

  • IntelliMix DSP Delivers Automatic Mixing, Echo Cancellation, And Noise Reduction Without External Processing
  • Dante Interface Integrates Wireless Channels Directly Into Networked Audio Systems Over Single Ethernet Cable
  • Automatic Frequency Management Scans Spectrum And Migrates Channels Before Interference Disrupts Audio
  • Dual RJ45 Topology Supports Switched, Split, Or Redundant Network Modes For IT Policy Compliance
  • PoE Operation Eliminates Dedicated AC Circuits In Ceiling Or Wall Installations

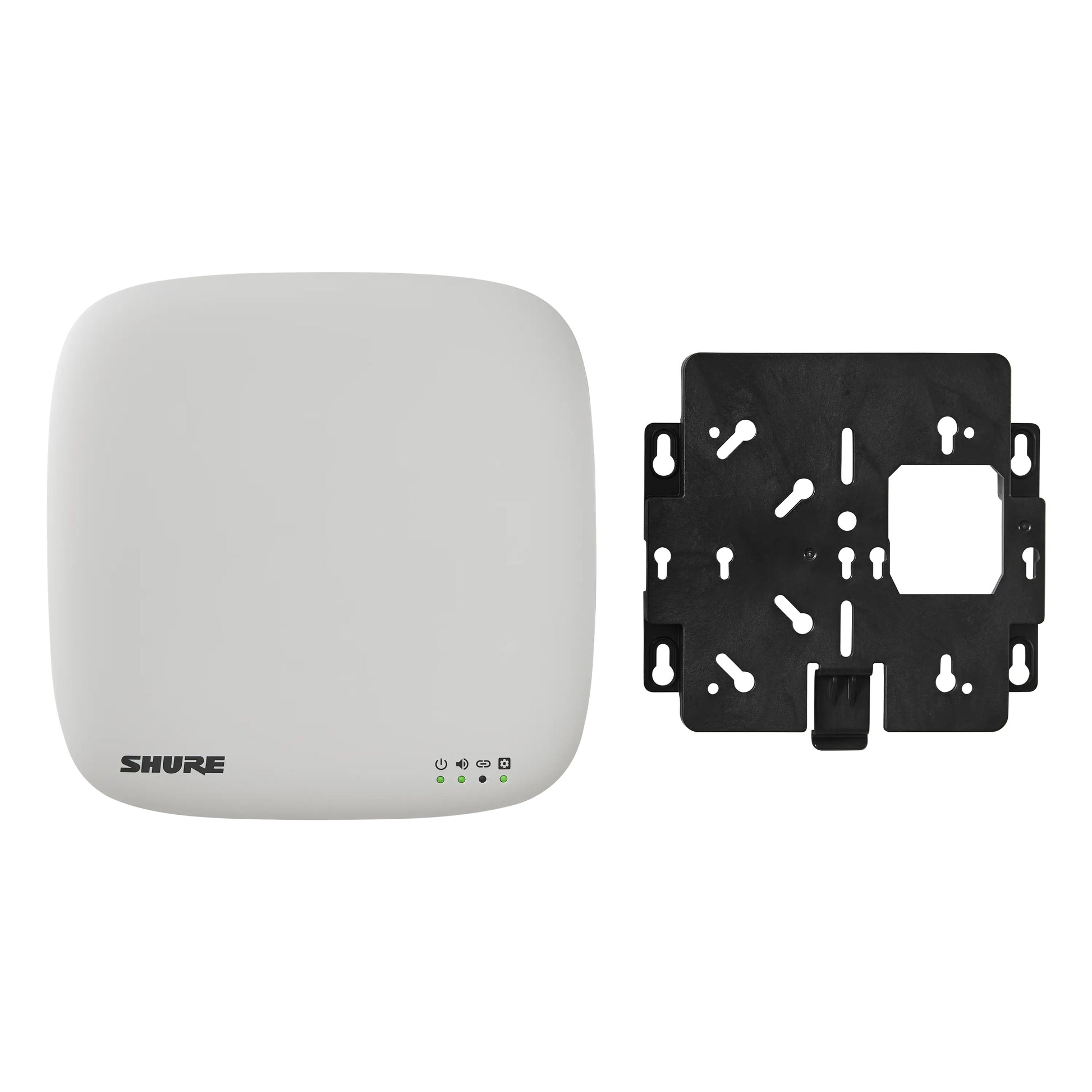

  • Paintable Mounting Plate Conceals Hardware In Boardrooms Where Low Visibility Is Required
  • Two-Way RF Transmission Enables Remote Control And Program Feed Distribution To Each Transmitter

Designed for integrators installing networked conferencing systems, this access point transceiver bridges MXW neXt wireless transmitters to Dante infrastructure while applying IntelliMix DSP to every microphone channel. Automatic frequency management continuously monitors spectrum conditions and migrates channels before interference occurs, ensuring uninterrupted operation in dense RF environments typical of corporate facilities. The dual RJ45 topology supports switched, split, or redundant network modes to accommodate existing IT policies without requiring separate audio and control VLANs.

PoE powers the unit and delivers bidirectional Dante audio over a single cable run, eliminating the need for dedicated AC drops in ceiling installations. Built-in acoustic echo cancellation and noise reduction allow participants to use open microphones without feedback or ambient distractions, while automatic gain leveling compensates for varying speaker distances. A paintable ceiling plate integrates the hardware into architectural finishes where visibility must be minimized. Multiple transceivers scale systems to 40 channels in standard markets or 80 channels in EMEA regions, with high-density mode doubling capacity for large council chambers and legislative spaces.

View full details

Specifications

Audio
Audio Connections
Analog, Dante, USB-C
Wireless Audio Channels
4-8
Connectivity
Ethernet Connections
Dual RJ45
Network Modes
Switched, Split, Redundant
Power
Power Source
PoE
Certifications
Security Protocols
802.1x, Secure Boot/Storage, AES Encryption
Capacity
Maximum Channels (Standard)
40
Maximum Channels (Europe/Select Countries)
80
