Shure MXWAPX8=-Z10 8-Channel Access Point Transceiver With IntelliMix DSP

Shure MXWAPX8=-Z10 8-Channel Access Point Transceiver With IntelliMix DSP

SoundPro Item: 150807 | Part Number: MXWAPX8=-Z10

Regular price $4,070.00
Regular price $5,088.00 Sale price $4,070.00
Your Price Sold out
MSRP: $5,088.00 | MAP: $4,070.00

Usually ships in 5-7 business days

  • IntelliMix DSP Provides Automatic Mixing And Echo Cancellation For Conference Audio Clarity
  • Dual RJ45 Ports Enable Switched Split Or Redundant Network Topologies
  • Automatic Frequency Management Scans Spectrum And Migrates Channels Before Interference

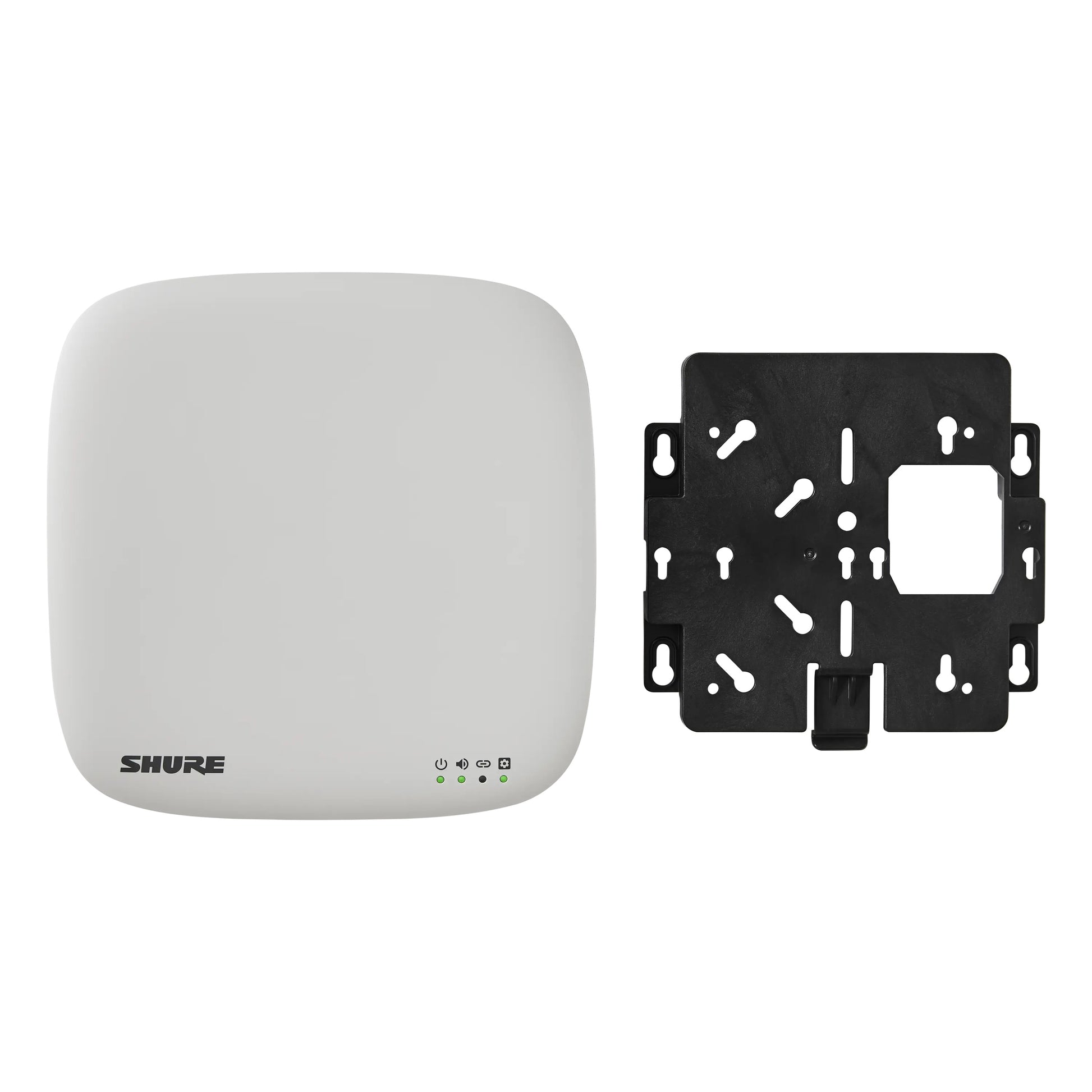

  • Paintable Mounting Plate And Cover Deliver Discreet Ceiling Or Wall Integration
  • Two-Way Wireless Transmission Enables Remote Transmitter Control And Program Audio Return
  • 802.1x Authentication Secure Boot And AES Encryption Protect Control And Audio Data
  • Selectable RF Output Power Optimizes Coverage Area Without Spectrum Waste

The MXWAPX8=-Z10 provides professional integrators with a network-ready access point engineered for installed conferencing environments where simplicity and audio intelligence are non-negotiable. Designed for use with MXW neXt wireless transmitters, it combines automatic mixing, echo cancellation, noise reduction, automatic gain control, and equalization in a single ceiling- or wall-mounted enclosure. Dual RJ45 connections support switched, split, or redundant network modes, while standards-based security protocols—including 802.1x authentication, secure boot and storage, and AES encryption—protect both control data and audio streams.

Automatic Frequency Management continuously scans the RF spectrum and migrates channels before interference materializes, enabling reliable operation in congested environments. Multiple units scale to 40 compatible channels in most regions, or 80 in Europe and select territories, with that capacity doubling when operating in high-density mode. Selectable RF output power lets integrators match coverage to room geometry without wasting spectrum, and two-way wireless transmission enables remote control of transmitter settings plus program audio return. The included paintable mounting plate keeps the transceiver visually discreet in executive boardrooms and formal meeting spaces where low-profile aesthetics are required.

View full details

Specifications

Audio Connections
Analog
Yes
Dante
Yes
USB-C
Yes
Network
Dual RJ45 Ports
Yes
Network Modes
Switched, Split, Redundant
Power Over Ethernet
Yes
Wireless
Wireless Audio Channels
8
Compatible Transmitters
MXW neXt
Scalability
Up to 40 channels (80 in Europe and select countries, double in HD mode)
Two-Way Transmission
Yes
Selectable RF Output Power
Yes
DSP Processing
Automatic Mixing
Yes
Echo Cancellation
Yes
Noise Reduction
Yes
Automatic Gain Control
Yes
EQ
Yes
Security
802.1x
Yes
Secure Boot/Storage
Yes
AES Encryption
Yes
Installation
Mounting Options
Ceiling, Wall
Paintable Cover
Yes
Diagnostics
LED Indicators
Power, Wireless Connection, Network Audio Status
