Specifications
Dimensions
Dimensions
1.92" diameter x 3" height
Electrical
Output Impedance (1kHz)
250Ω with 5 VDC
Sensitivity (at 1kHz, Open Circuit voltage)
-46.5 dBV/Pa
Power Requirements
5 volt bias from Shure transmitter
Audio
Polar Pattern
cardioid
Frequency Response
50Hz to 20,000Hz
Max. SPL (with 5 VDC)
151 dB SPL
Signal-to-Noise Ratio
71.5 dB
Dynamic Range (with 5 VDC)
128.5 dB
Self Noise
22.5 dB SPL (typical, equivalent SPL, A-weighted)
Construction
Housing
aluminum and steel grille
Included Items

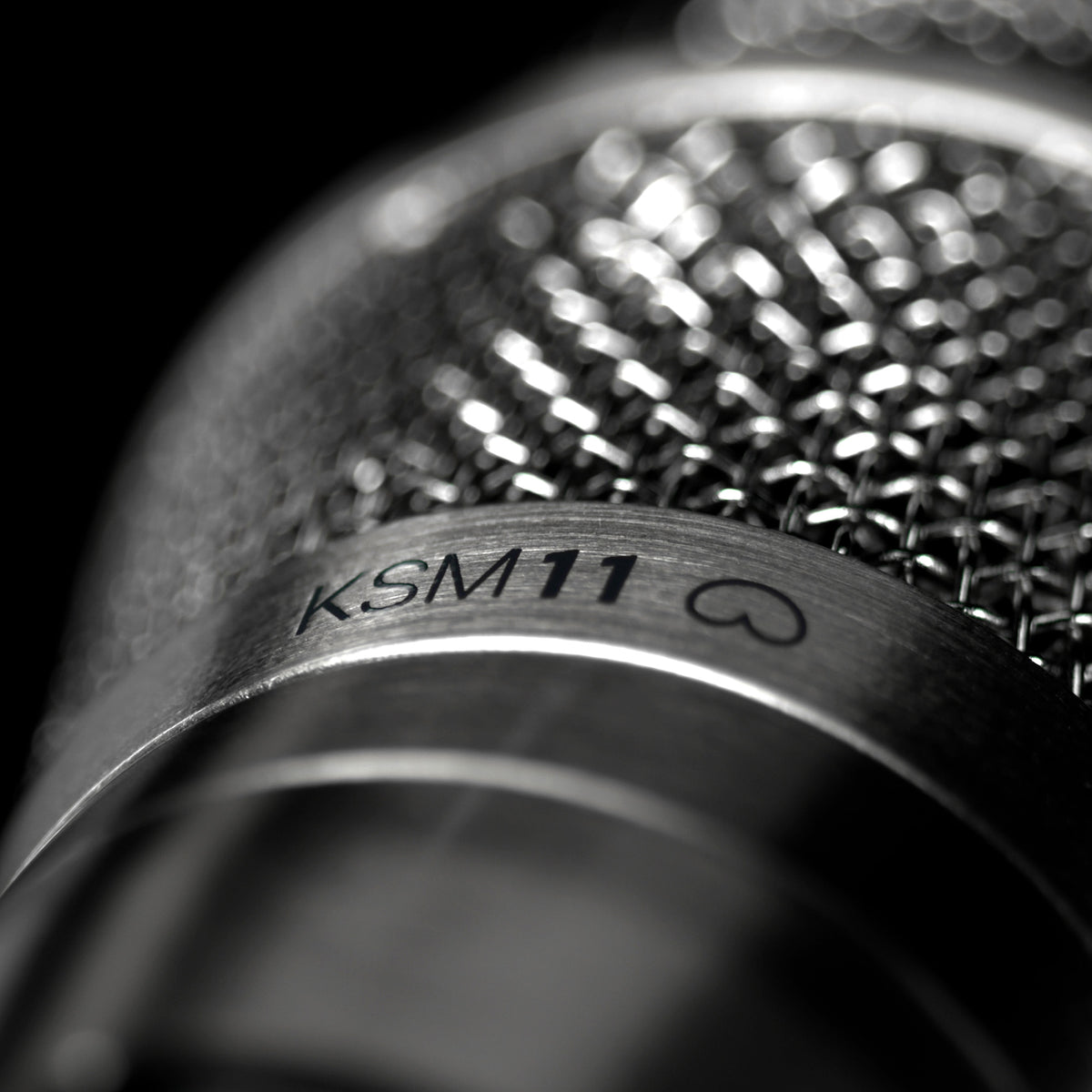

KSM11 Wireless Condenser Microphone Capsule
1x
Shipping
Weight
5.23 oz
General
Type
electret condenser
Clipping Level (with 5 VDC)
10 dBV
Polarity
positive pressure on diaphragm produces positive voltage into transmitter with respect to ground
