Shure SLXD4Q+=-G57 Wireless Receiver
Shure SLXD4Q+=-G57 Wireless Receiver
SoundPro Item: 147137 | Part Number: SLXD4Q+=-G57
Usually ships in 5-7 business days
- Four channels in one rack space
- Wide 138 MHz tuning range
- 32 available channels per frequency band (region dependent)
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Audio Summing matches receiver output to available mixer channels (4,3,2 or 1)
- RF Cascade creates an 8-channel system by linking two SLXD4Q+, no other accessories required
- Bias Voltage power supply management
- Digital predictive switching diversity
- Easy pairing of transmitters and receivers over IR scan and sync

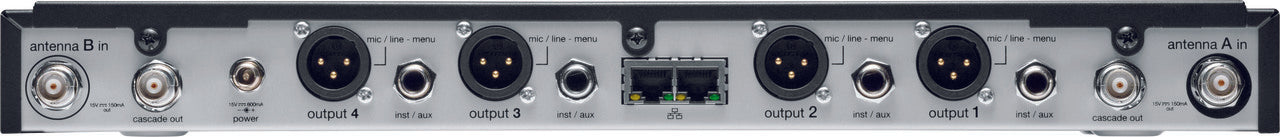

- 4 XLR and 4 1/4" outputs and 2 local ethernet connections
- Compatible with Shure Wireless Workbench® control software
- Rugged metal construction

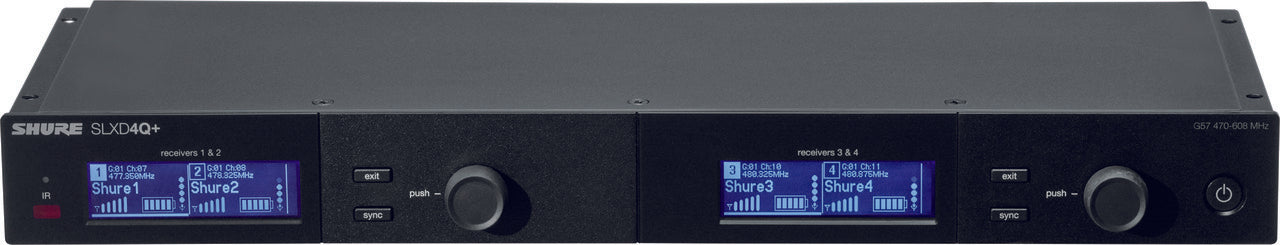

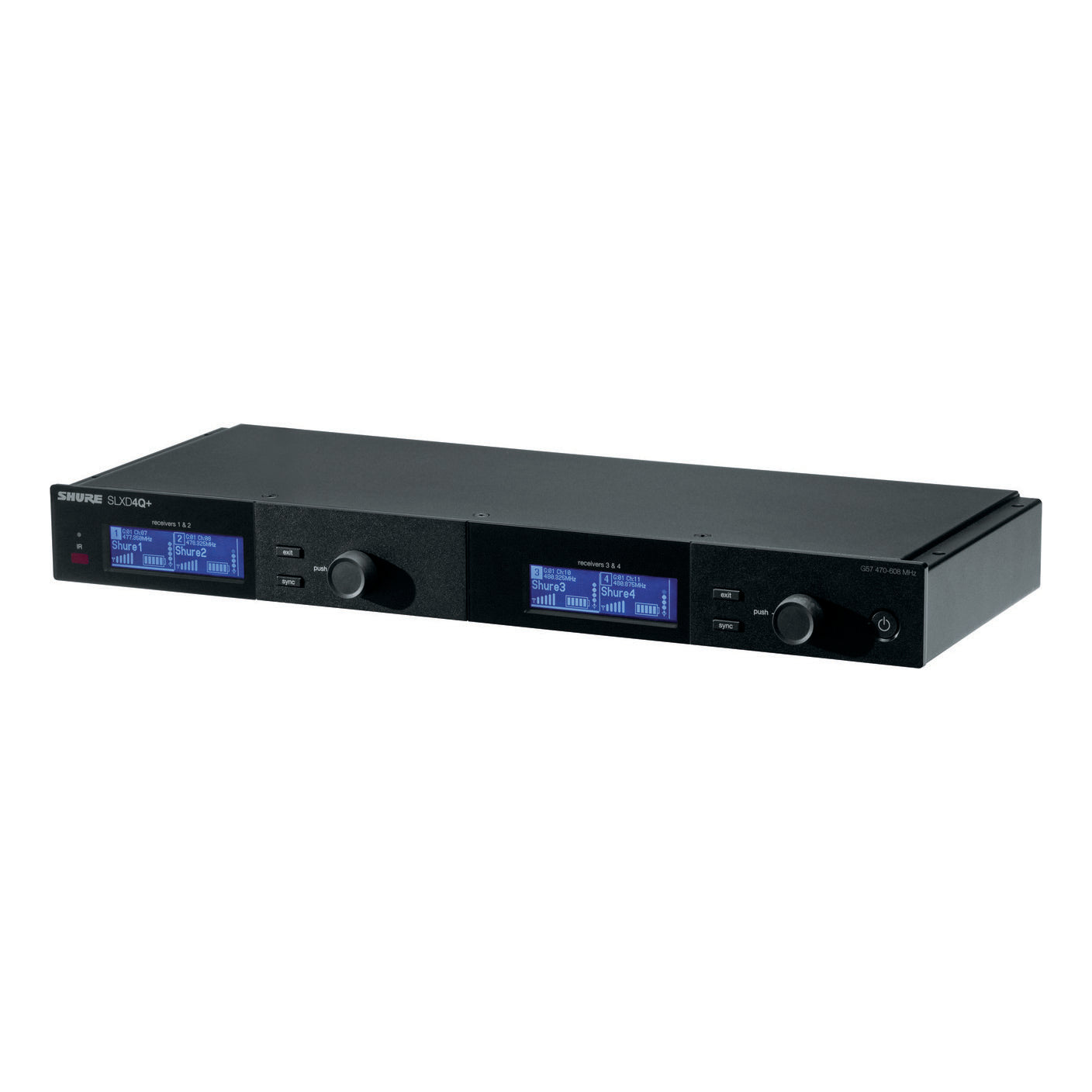

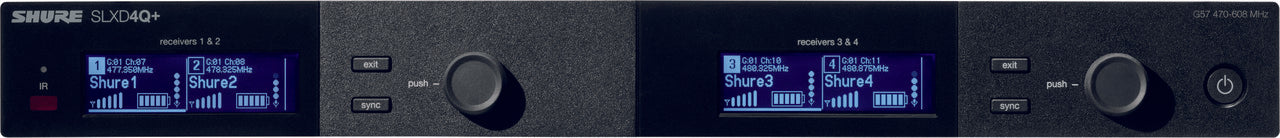

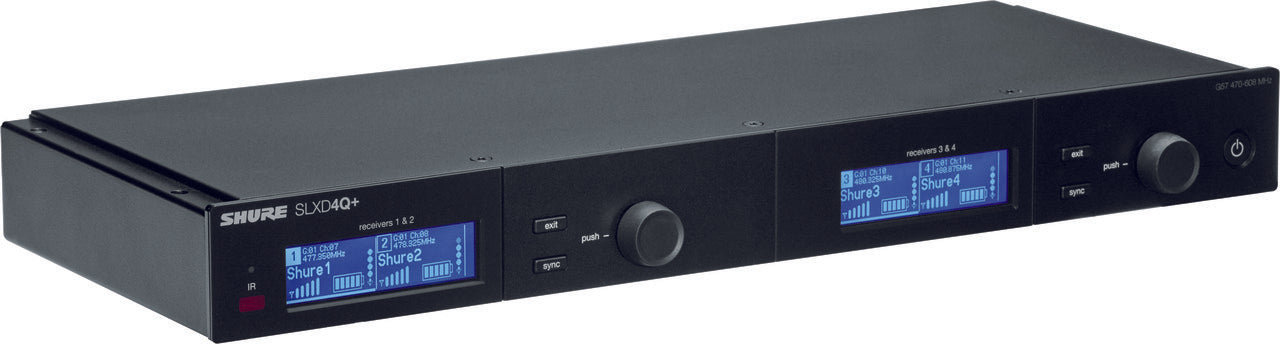

The SLXD4Q+ is a quad channel digital receiver for use with SLX-D transmitters. With the crystal-clear audio and rock-steady RF that SLX-D provides, the SLXD4Q+ features a wide 138 MHz tuning range and easily pair with SLX-D bodypack, handheld and plug-on transmitters. Use audio output summing to set and manage wireless output levels and use RF cascading to quickly scale up compact and powerful multi-channel wireless systems for every application. SLXDQ4+ Quad Channel receivers - four channels of wireless versatility, wherever required.
- RF Carrier Frequency Range 470-937.5 MHz, varies by region (See Frequency Range and Output Power table)
- Working Range 100 m (328 ft) (Note: Actual range depends on RF signal absorption, reflection and interference.)
- RF Tuning Step Size
- 25 kHz, varies by region
- JB band: 125 kHz
- Image Rejection >85 dB, typical
- RF Sensitivity -97 dBm at 10-5 BER
- Latency 3.2 ms
- High-Pass / Low Cut Filter 150 Hz @ -12 db/oct (Note: Factory default is for the HPF to be off)
- Audio Dynamic Range 118 dB at 1% THD, A-weighted, typical
- Total Harmonic Distortion <0.02%
- System Audio Polarity Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output and the tip of the 6.35 mm (1/4 inch) with respect to the ring of the 6.35 mm output.
- Mic Offset Range 0 to 21 dB (in 3 dB steps)
- Dimensions 1.65 x 15.47 x 5.98 in.
- Weight 1750 g (without antennas)
- Housing Galvanized Steel
- Power Requirements 15 V @ 0.9
- Spurious Rejection >75 dB (Typical)
