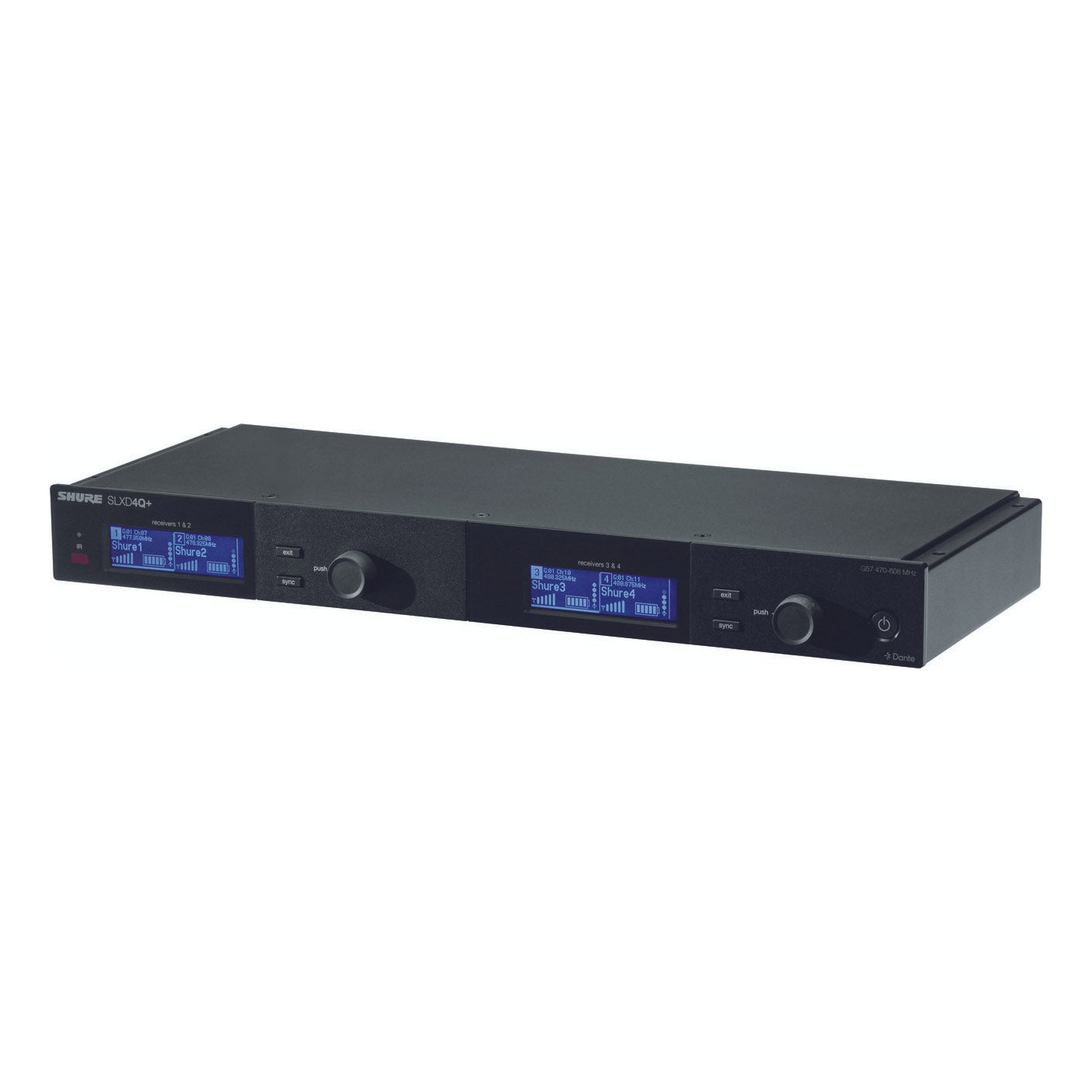

• SLXD4QDAN+ 3 Quarter View Left

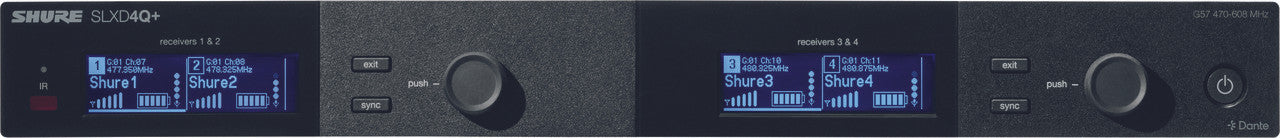

  • SLXD4QDAN+ Receiver Dante Straight On

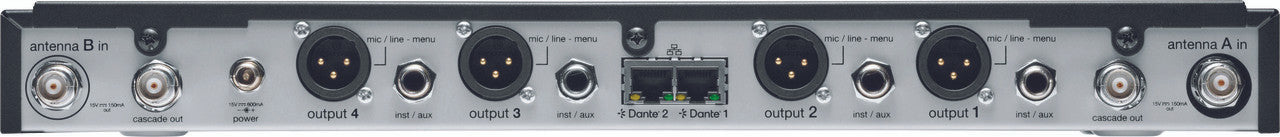

  • SLXD4QDAN+ Back

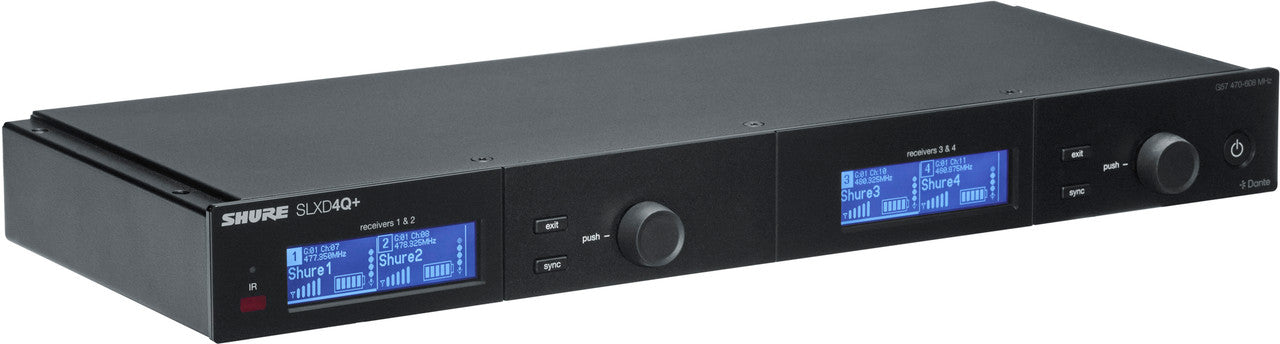

  • SLXD4QDAN+ 3 Quarter View Right

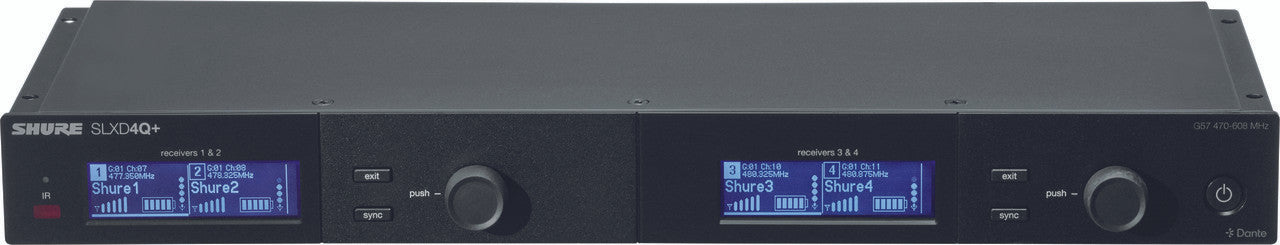

  • SLXD4QDAN+ Straight On With Body
1 5

Shure SLXD4QDAN+=-G57 Quad Channel Wireless Receiver

Shure SLXD4QDAN+=-G57 Quad Channel Wireless Receiver

SoundPro Item: 147138 | Part Number: SLXD4QDAN+=-G57

$3,519.00
$4,399.00 $3,519.00
Your Price Sold out
MSRP: $4,399.00 | MAP: $3,519.00

In stock and ready to ship

  • Four channels in one rack space
  • Wide 138 MHz tuning range
  • 32 available channels per frequency band (region dependent)
  • Transparent 24-bit digital audio
  • 118 dB dynamic range
  • Audio Summing matches receiver output to available mixer channels (4,3,2 or 1)
  • 4 XLR and 4 1/4" outputs and 2 local ethernet connections
  • Dante Audio Networking, carried on single Ethernet cable
  • RF Cascade creates an 8-channel system by linking two SLXD4Q+ together, no other accessories required
  • Bias Voltage power supply management
  • Digital predictive switching diversity
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • Rugged metal construction
Log in or register for YOUR best price

The SLXD4QDAN+ is a quad channel digital receiver for use with SLX-D transmitters. With the crystal-clear audio and rock-steady RF that SLX-D provides, the SLXD4QDAN+ features a wide 138 MHz tuning range and easily pair with SLX-D bodypack, handheld and plug-on transmitters. Use audio output summing to set and manage wireless output levels and use RF cascading to quickly scale up compact and powerful multi-channel wireless systems with Dante Digital Audio connectivity for use in every application. SLXDQ4DAN+ Quad Channel receivers - four channels of wireless versatility, wherever required.

View full details

Specifications

Dimensions
RF Tuning Step Size
25 kHz, varies by regionJB band: 125 kHz
Dimensions
1.65 x 15.47 x 5.98 in.
Electrical
Power Requirements
15 VDC @ 1.03 A
Audio
RF Sensitivity
-97 dBm at 10-5 BER
Audio Dynamic Range
118 dB at 1% THD, A-weighted, typical
Total Harmonic Distortion
< 0.02%
System Audio Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output and the tip of the 6.35 mm (1/4 inch) with respect to the ring of the 6.35 mm output.
Construction
Housing
Galvanized Steel
Shipping
Weight
1750 g (without antennas)
General
RF Carrier Frequency Range
470-937.5 MHz, varies by region (See Frequency Range and Output Power table)
Working Range
100 m (328 ft) (Note: Actual range depends on RF signal absorption, reflection and interference.)
Image Rejection
>85 dB, typical
High-Pass / Low Cut Filter
150 Hz @ -12 db/oct (Note: Factory default is for the HPF to be off)
Mic Offset Range
0 to 21 dB (in 3 dB steps)
Spurious Rejection
>75 dB (Typical)
Audio Performance
Latency
3.2 ms
